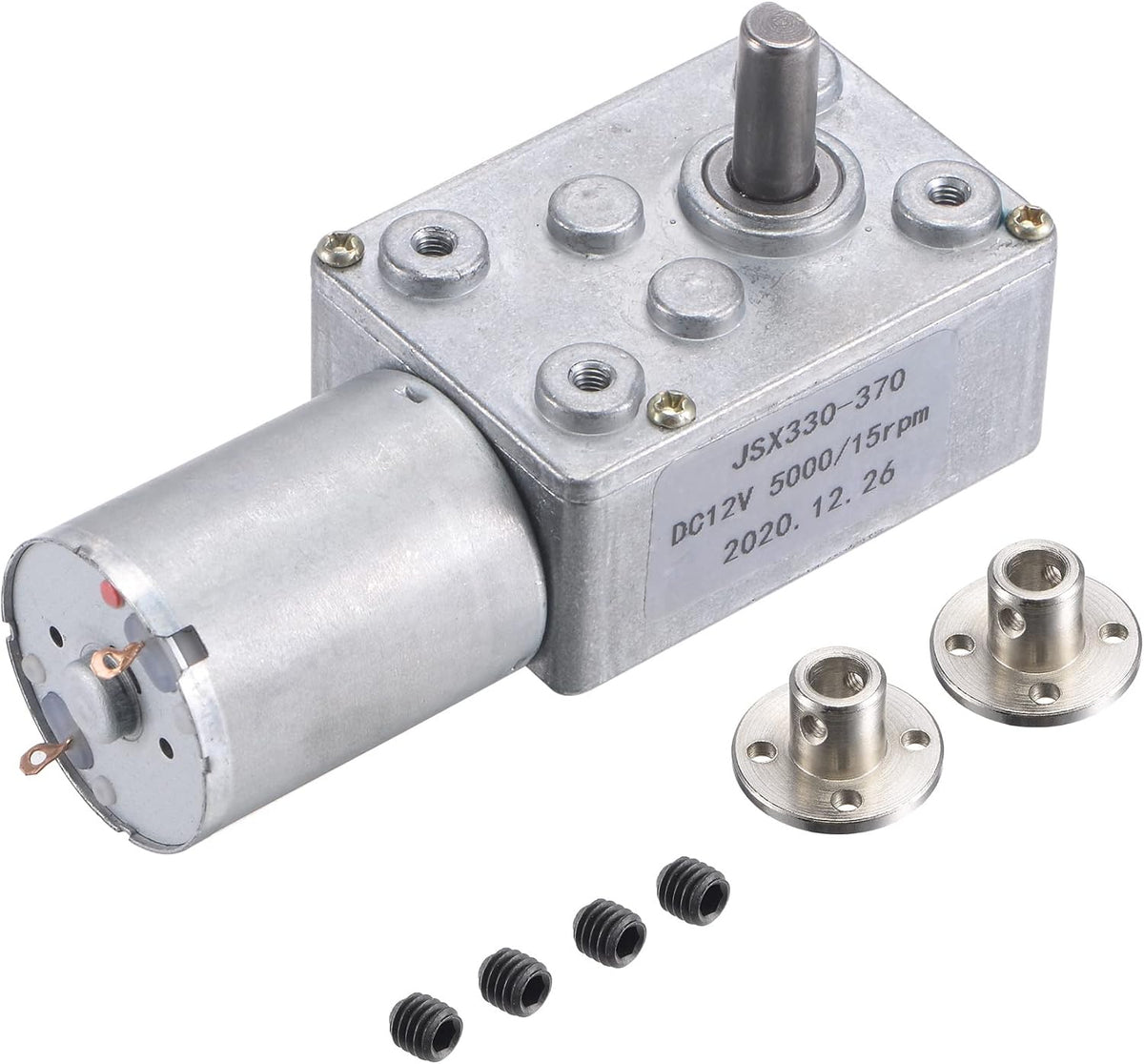

Worm Geared Motor W Rigid Flange Shaft Coupling,DC 12V 15RPM Motor,H12xD10 6mm ID Shaft Coupling 2Pcs

Key Features

• Geared Motor; Rated Voltage DC 12V; Output Speed 5000/15RPM;No-load Current40mA; Rated Torque3kg.cm; Rated Current300mA;Stall Torque10kg.cm;
• Shaft CouplingInner Diameter 6mm/0.24 inch, Total Height 12mm/0.47 inch, Cylinder Outer Diameter 10mm/0.39 inch, Cylinder Height 10mm/0.39 inch, Base Diameter 22mm/0.87 inch, Base Height 2mm/0.08 inch, Mounting Hole Distance 16mm/0.63 inch,2 x M3 Fastening Screws
• Application bank equipment, paper feeder, machine, accessory of ad equipment, analysis instrument, electronic game machine.
• Function A special coupler, which can fix one shaft to a plane and install other parts on the shaft easily. Double connection points fasten the coupler tightly.
• 1 X Geared Motor, 2 X Shaft Coupling

Product Description

Description

Application: bank equipment, paper feeder, machine, accessory of ad equipment, analysis instrument, electronic game machine.Specification:Geared Motor:Rated Voltage: DC 12V;Output Speed: 5000/15RPM;No-load Current:40mA; Rated Torque:3kg.cm;Rated Current:300mA;Stall Torque:10kg.cm;Box Shaft Size: 6 x 14mm/ 0.24" x 0.55"(D*L);Female Thread Diameter: 2.5mm/ 0.1";Motor Body Size: 30 x 25mm/ 1.2" x 1"(L*Max.D) Shaft Coupling:Material: Iron PlatingColor: Silver ToneInner Diameter: 6mm/0.24 inchTotal Height: 12mm/0.47 inchCylinder Outer Diameter: 10mm/0.39 inchCylinder Height: 10mm/0.39 inchBase Diameter: 22mm/0.87 inchBase Height: 2mm/0.08 inchMounting Hole Distance: 16mm/0.63 inch

Package Content

1 X Geared Motor, 2 X Shaft Coupling
