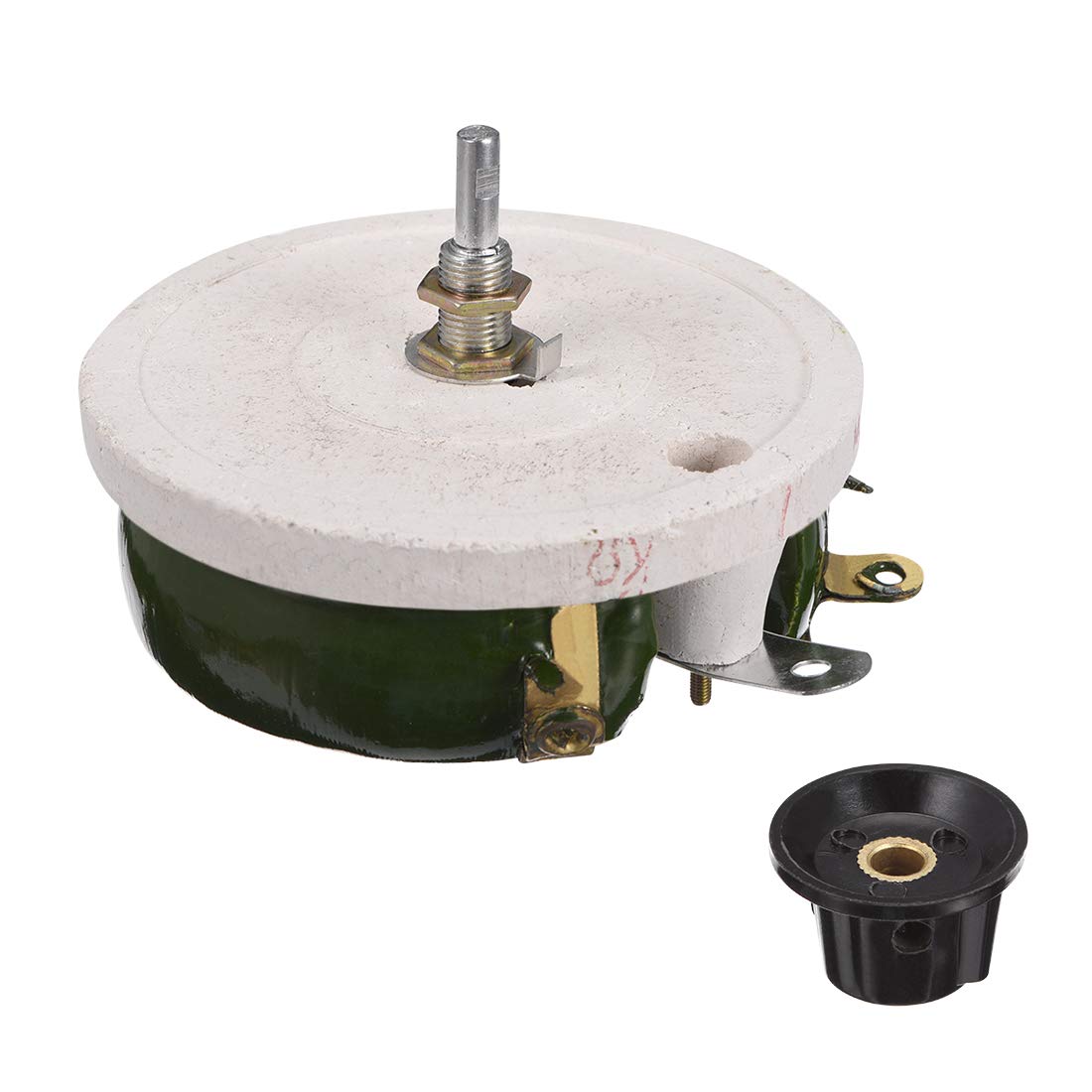

Wirewound Ceramic Potentiometer Variable Rheostat Resistor 200W 1K Ohm with Knob

Key Features

• Model Variable Rheostat Wirewound Ceramic Potentiometer，can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.
• Widely used in educational modeling, load simulations, industiral machinery RPM adjustment, voltage and current adjustment, instruments, and automated control installations.
• Resistance Value 1k Ohm , Power 200W, Tolerance+/-5%
• Total Size 104.8 x 79.5mm/ 4.13 x 3.13 inch (D * H)
• The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.

Product Description

Product Name: Wirewound Ceramic Potentiometer Resistance Value: 1K ohmPower：200WTolerance: +/-5%Terminals Number: 3

Features

Round ShaftTotal Size: 104.8 x 79.5mm/ 4.13 x 3.13 inch (D * H)Screw Thread Dia: 10mm/0.39 inchShaft Diameter: 6mm/0.23 inchShaft Length(do not include the Screw Thread parts):15.7mm/0.62 inchShaft Total Length：32mm/1.26nch

Package Content

1 x Wirewound Ceramic Potentiometer Knobs Size: 18.8 x 30/ 0.74 x 1.18(H*D)1K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.（this item include Knobs)Material：Ceramic MetalControl the electrical resistance of a circuit without interrupting the flow of current.The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.Can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.Knurled shaft with split design for push-on knob.
