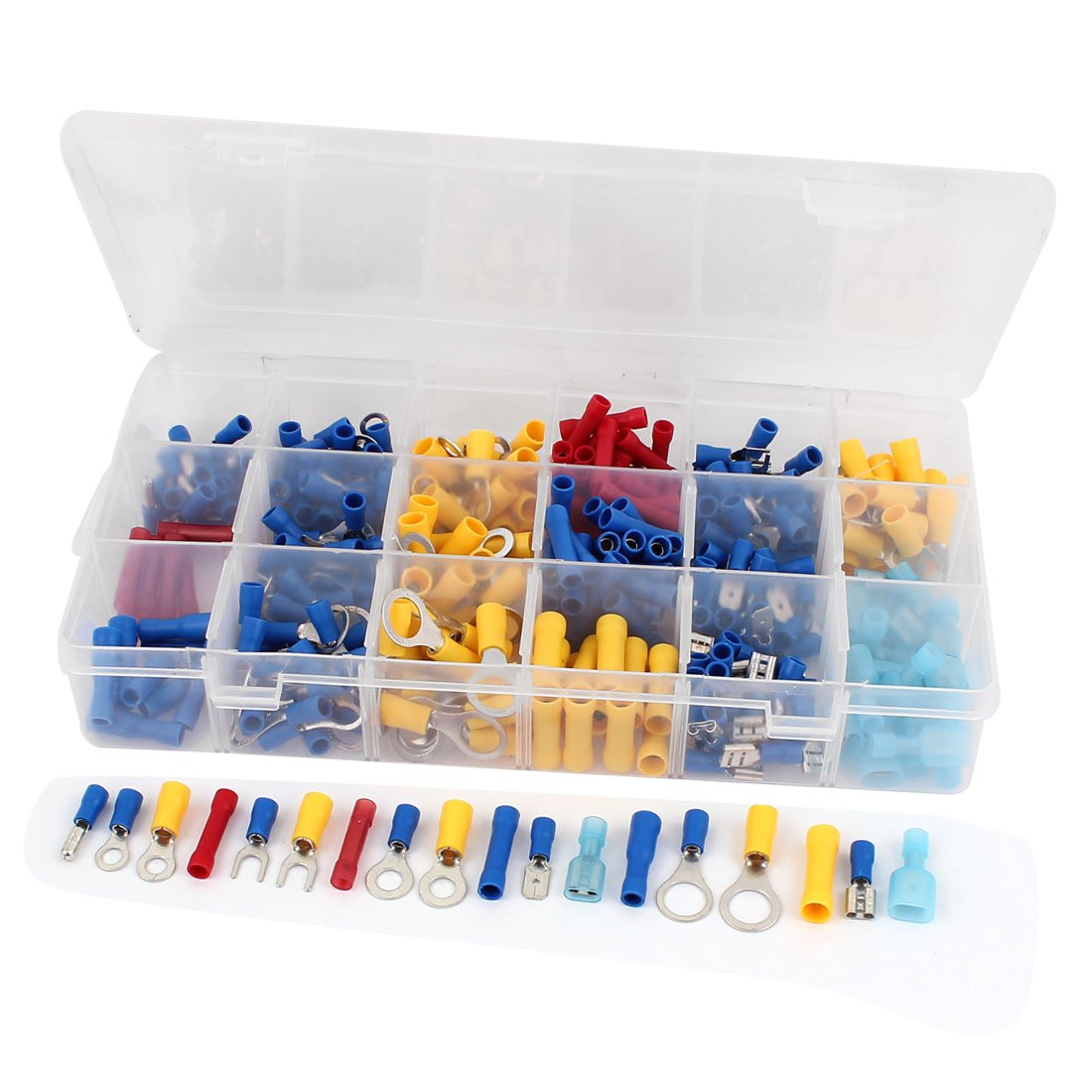

Wire Crimp Connector Insulated Cord Terminal AWG 22 to 10 Kit with 360 Piece

Key Features

• Product name, Pre insulated fork coil terminal sets, design, several Type, RV5.5-10Rv5.5-6Rv5.5-5, 4 - 6mm2(wag 12- 10)/max. Current 48A, RV1.25-10Rv2-6rvs2-5, 1.5 - 2.5Mm2(wag 16- 14)/max. Current 27A
• SV5.5-5, 4 - 6mm2(wag 12- 10)/max. Current 48A, svs2-5, 1.5 - 2.5Mm2(wag 16- 14)/max. Current 27A, add2-250, 1.5 - 2.5Mm2(wag 16- 14)/max. Current 15A, BV1.25, 0.5 - 1.5Mm2(wag 22- 16)/max. Current 19A
• BV2, 1.5 - 2.5Mm2(wag 16- 14)/max. Current 27A, BV5.5, 4 - 6mm2(wag 12- 10)/max. Current 48A, Pvt1.25, 0.5 - 1.5Mm2(wag 22- 16)/max. Current 19A, FDD2-250, 1.5 - 2.5Mm2(wag 16- 14)/max. Current 15A
• Frpd2-156, 1.5 - 2.5Mm2(wag 16- 14)/max. Current 15A, MPD2-156, 1.5 - 2.5Mm2(wag 16- 14)/max. Current 15A, FDFD2-250, 1.5 - 2.5Mm2(wag 16- 14)/max. Current 15A, FDFD5.5-250, 4 - 6mm2(wag 12- 10)/max. Current 24A
• Color, colorful, material, plastic, metal, weight, 450G, package content, 360 pcs Pre insulated fork coil terminal sets

Product Description

1. Each fork terminal is rolled and the seam is butted.2. This seam can not possibly open under normal conditions of stress or wire pull.3. Designed with full port Barrel, ideal for difficult to crimp solid wires or stranded wires.4. Used widely in the machinery, electric power, railway, shipbuilding, Aviation, home appliance, computer or other automatic equipment's.
