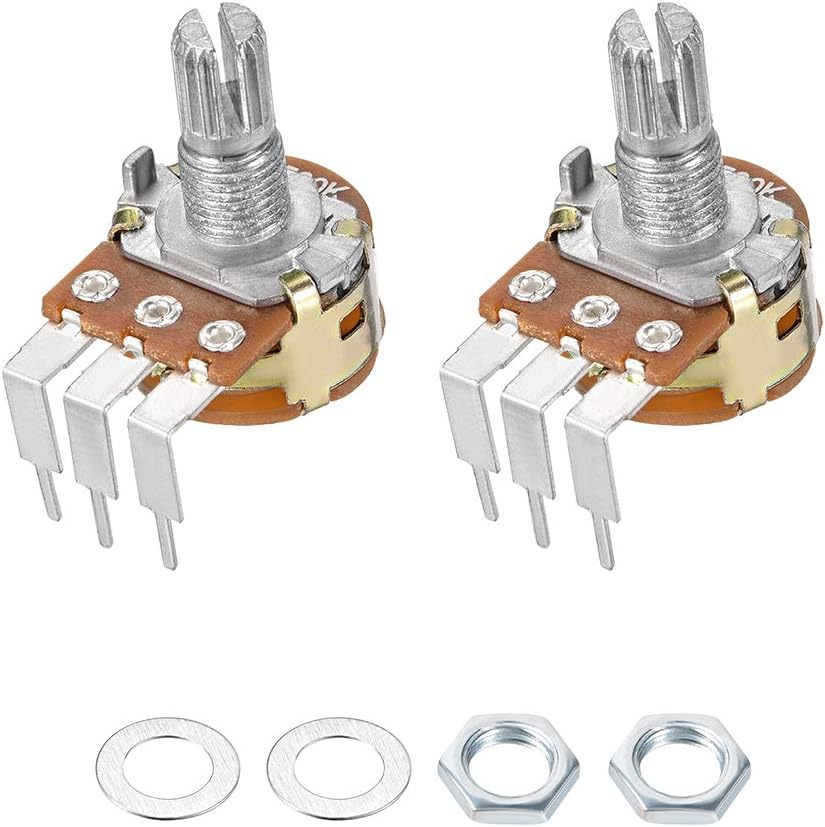

WH148 Potentiometer with Switch 50K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper 2pcs
Key Features
- 1. Model WH148, 50K ohm, Tolerance +/-10%, 5 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)
- 2. About Size Shaft Diameter 6mm/0.24 inch, Total High 30mm, Base Size 17mm x 9mm ( D x H)
- 3. Knurled shaft with split design for push-on knob.
- 4. Mainly used for dimming, speed , temperature , etc. of electronic products, suitable for audio and video, governor, microwave oven, loudspeaker, car Amplifier, etc.
- 5.Top adjustment type and knurled shaft for easy operate in daily use.
Product Description
Description
1.Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)2.Top adjustment type and knurled shaft for easy operate in daily use.3. Mainly used for dimming, speed , temperature , etc. of electronic products, suitable for , audio and video, governor, microwave oven, loudspeaker, Amplifier, etc.4. Knurled shaft with split design for push-on knob. Specification:Product Name:carbon Film PotentiometerModel: WH148Material: bon film MetalResistance Value: 50K ohmTolerance: +/-10%Turn Number: Single TurnTerminals Number: 5
Features
Round ShaftTotal High: 30mmBase Size: 17mm x 9mm ( D x H)Screw Thread Dia.: 6.7mmShaft Diameter: 6mm/0.24 inchShaft Length(do not include the Screw Thread parts): 9mm
Package Content
2 x carbon Film Potentiometer
