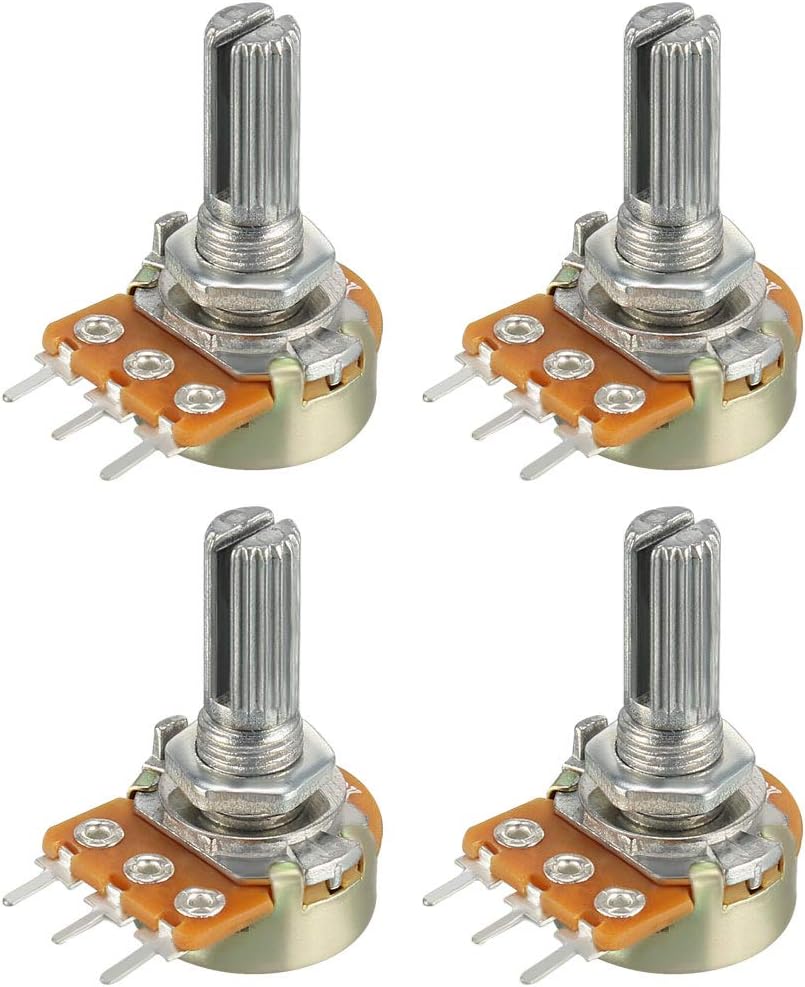

WH148 250K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper Potentiometer 4Pcs
Key Features
- ModelWH148;Single potentiometer, linear diversify of resistance
- Resistance Value 250K Ohm Tolerance+/-20%,Thread Dia. 6.7mm/0.26 inch
- Main used to control electrical devices such as volume controls on audio equipment，Amplifier and so on .
- Long life, soft touch, with soft center positioning
- Top adjustment type and knurled shaft for easy operate in daily use.
Product Description
Product Name: Carbon Film PotentiometerModel: WH148Material: Carbon film MetalResistance Value: 250K ohmTolerance: +/-20%Turn Number: Single TurnTerminals Number: 3
Features
Round ShaftTotal Size: 16.4mm x 28mm/0.65 x 1.1 inch (D * H)Screw Thread Dia.: 6.8mm/0.27 inchShaft Diameter: 5.9mm/0.23 inchShaft Length(do not include the Screw Thread parts): 13mm/0.51 inchShaft Total Length: 20mm/0.79 inch
Package Content
4 x Carbon Film Potentiometer
Features
250K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)Top adjustment type and knurled shaft for easy operate in daily use.Main used to control electrical devices such as volume controls on audio equipment.Knurled shaft with split design for push-on knob.
Specifications
| Item Weight | 0.81 ounces |
| Product Dimensions | 5.51 x 3.94 x 0.79 inches |
