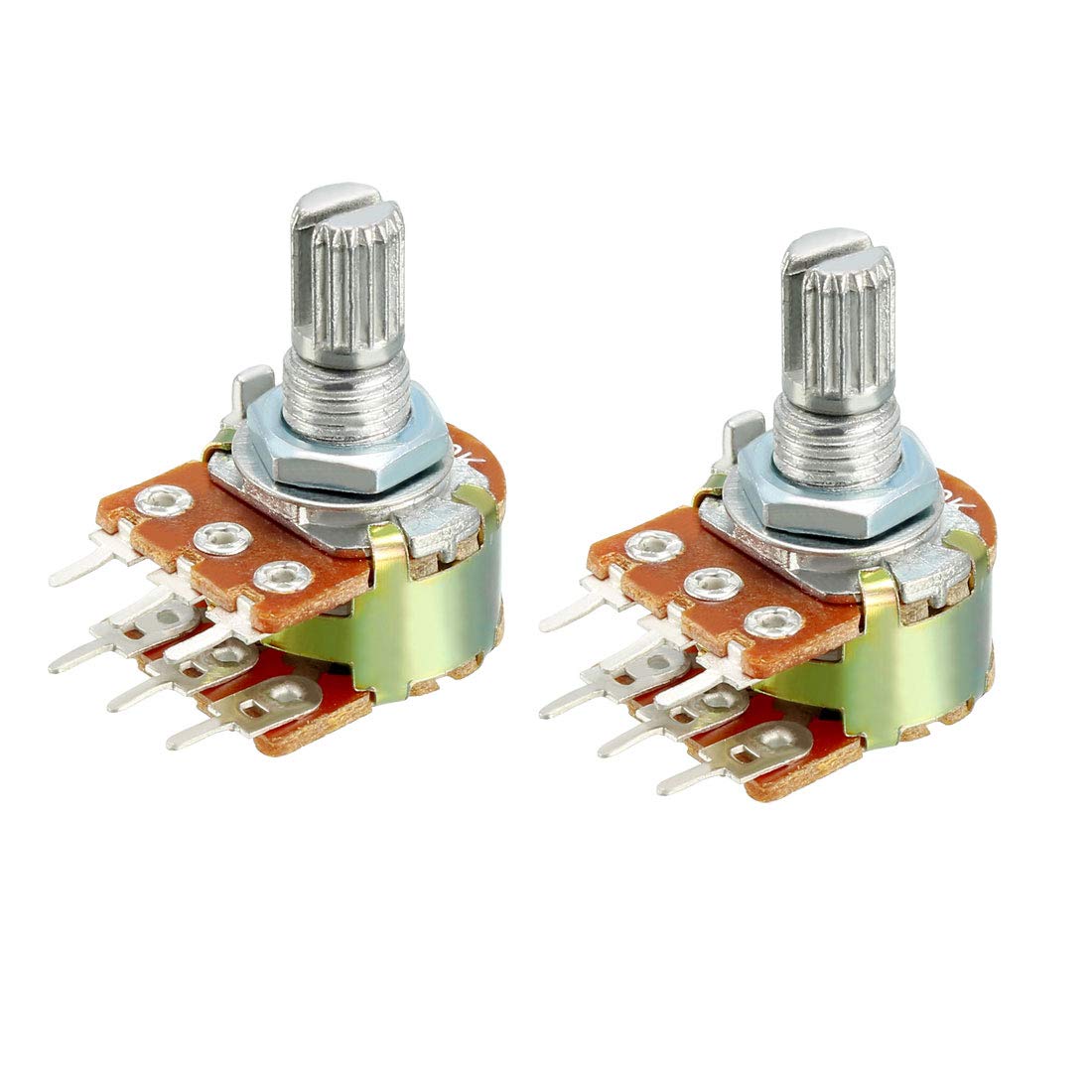

WH148 1K Ohm Variable Resistors Dual Turn Rotary Carbon Film Taper Potentiometer 2pcs

Key Features

• Model WH148,Dual Turn potentiometer, linear diversify of resistance,make with two sets of resistor substrates, easy for simultaneous adjustment
• Resistance Value 1K Ohm Tolerance+/-10%,,Screw Thread Dia. 6.7mm/0.51 inch
• Dual Turn potentiometer is also a kind of synchronous adjustment potentiometer, which can be made into any number of potentiometers. It has many applications in audio and electronic equipment to realize synchronous adjustment.
• Long life, soft touch, with soft center positioning
• Top adjustment type and knurled shaft for easy operate in daily use.

Product Description

Product Name: Carbon Film PotentiometerModel: WH148Material: Carbon film MetalResistance Value: 1K ohmTolerance: +/-10%Turn Number: Dual TurnTerminals Number: 6

Features

Round ShaftTotal Size: 26mm x 17mm/1.02 x 0.67 inch (H * D)Screw Thread Dia.: 6.7mm/0.26 inchShaft Diameter: 6mm/0.24 inchShaft Length(do not include the Screw Thread parts): 9mm/0.35 inchShaft Total Length: 15.6mm/0.61 inch

Package Content

2 x Carbon Film Potentiometer

Features

1K ohm, 6 Terminals, Dual Linear, Suits Most Standard Knobs.（this item do not include Knobs)Top adjustment type and knurled shaft for easy operate in daily use.Main used to control electrical devices such as volume controls on audio equipment.Knurled shaft with split design for push-on knob.

Specifications
