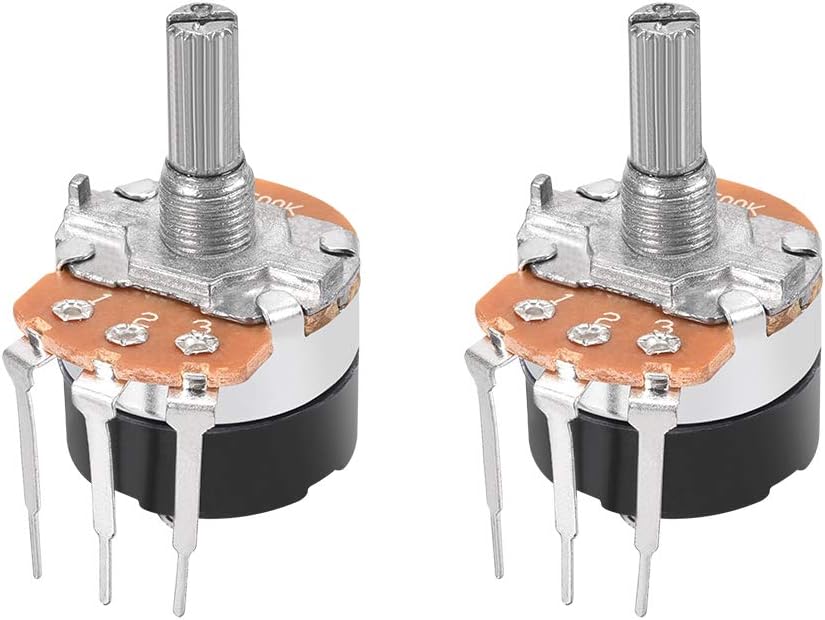

WH138 Potentiometer with Switch B500K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper 2pcs
Key Features
- 1. Model WH138-4, 500K ohm, Tolerance +/-10%, 5 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)
- 2. About Size Shaft Diameter 6mm/0.24 inch, Total High 44mm, Base Size 17mm x 24mm ( DxH)
- 3. Knurled shaft with split design for push-on knob.
- 4. Mainly used for dimming, speed regulation, temperature regulation, etc. of electronic products, suitable for audio and video, governor, microwave oven, loudspeaker, car amplifier, etc.
- 5.Top adjustment type and knurled shaft for easy operate in daily use.
Product Description
Description
1.Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)2.Top adjustment type and knurled shaft for easy operate in daily use.3. Mainly used for dimming, speed regulation, temperature regulation, etc. of electronic products, suitable for , audio and video, governor, microwave oven, loudspeaker, amplifier, etc.4. Knurled shaft with split design for push-on knob. Specification:Product Name: bon Film PotentiometerModel: WH138-4Material:bon film MetalResistance Value: 500K ohmTolerance:+/-10%Turn Number:Single TurnTerminals Number:5
Features
Round ShaftTotal High: 44mmBase Size: 17mm x 24mm ( DxH)Screw Thread Dia.: 7.6mmShaft Diameter:6mm/0.24 inchShaft Length(do not include the Screw Thread parts):13mm
Package Content
2 x bon Film Potentiometer
Specifications
| Item Weight | 0.04 Kilograms |
