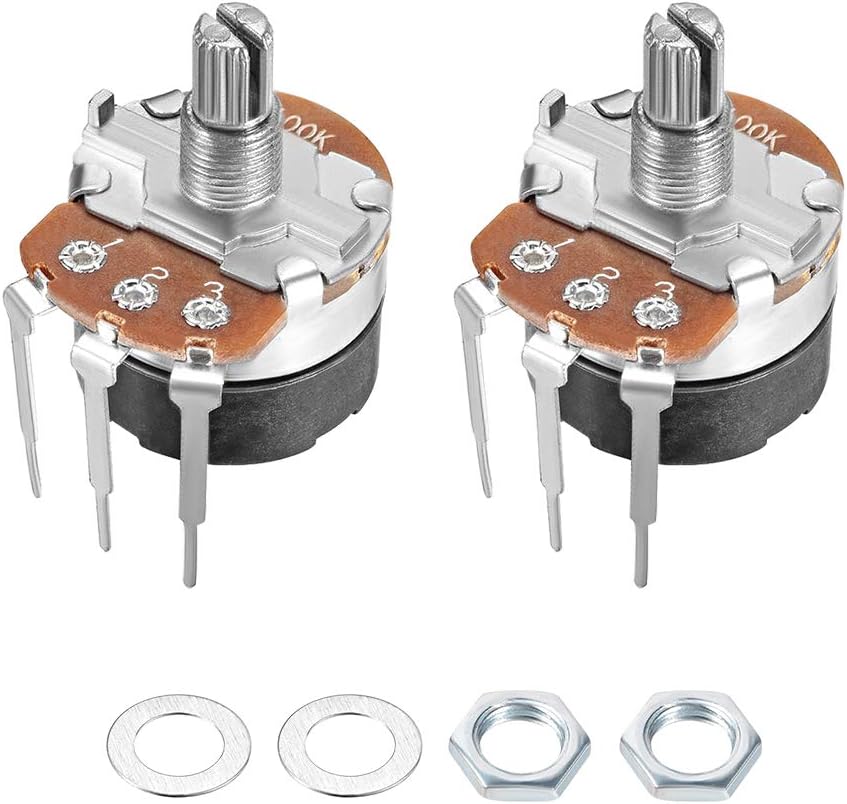

WH138 Potentiometer with Switch B100K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper 2pcs

Key Features

• 1. Model WH138, 100K ohm, Tolerance +/-10%, 5 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)
• 2. About Size Shaft Diameter 6mm/0.24 inch, Total Size 44mm x 17mm x 24mm(L*W*H)(not included pin)
• 3. Knurled shaft with split design for push-on knob.
• 4. Mainly used for dimming, speed, temperature , etc. of electronic products, suitable for video, governor, microwave oven, loudspeaker, car amplifier, etc.
• 5.Top adjustment type and knurled shaft for easy operate in daily use.

Product Description

Description

1. Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)2. Top adjustment type and knurled shaft for easy operation in daily use.3. Mainly used for dimming, speed, temperature, etc. of electronic products, suitable for video, governor, microwave oven, loudspeaker, amplifier, etc.4. Knurled shaft with split design for push-on knob. Specification:Product Name: Film PotentiometerModel: WH138Material: film MetalResistance Value: 100K ohmTolerance:+/-10%Turn Number:Single TurnTerminals Number:5

Features

Round ShaftTotal High: 40mmBase Size: 17mm x 24mm ( HxD)Screw Thread Dia.: 7.6mmShaft Diameter:6mm/0.24 inch

Package Content

2 x Film Potentiometer
