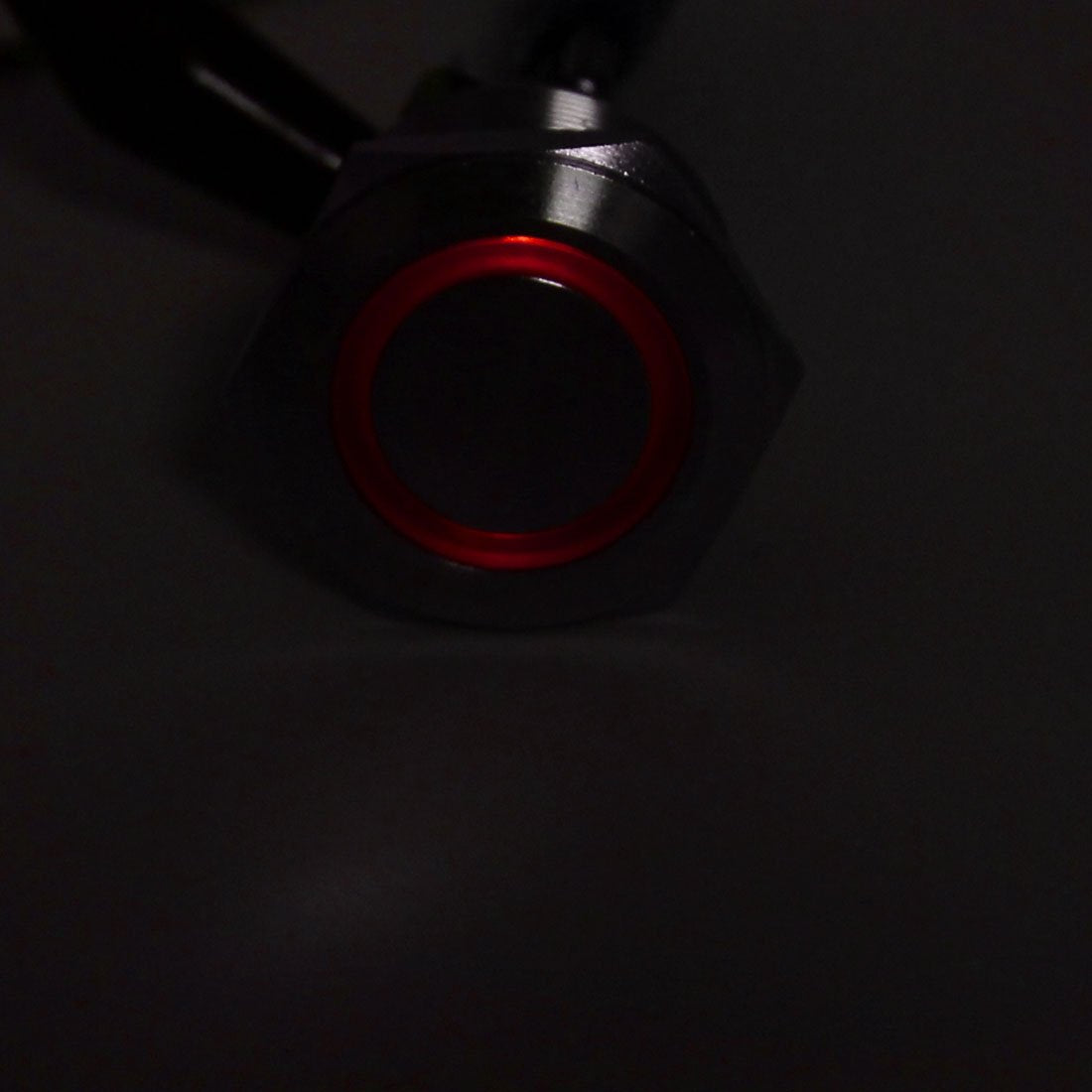

UL AC 5 Amp 250V 25 mm 0.98" Mounting Thread Flat Round 1NO 1NC DPST Momentary Stainless Steel Metal Waterproof Push Button Switch with Red Light

Key Features

• Oeperation Type Momentary; Contact Type 1NO+1NC; Current 5A; Voltage AC 250V
• Material Stainless Steel, Electric Parts; Net Weight 43g; Total Size 41 x 32mm/1.61" x 1.25"(L*Max.D);Pole and Throw SPST
• Light Power 220V;Light Color Red; Main Color Silver Tone; Cap Type Flat; Terminal Quantity 6;Thread Diameter 25mm
• Operating Temperature -25C to +55C; Operating Humidity 45 to 85%RH;Protection Rating IP67
• Contact Resistance 50Mohm Maximum; Insulation Resistance 100Mohm Minimum;

Product Description

About us: is not just a word, but a promise! We are owner of brand and all items sold by are original. As trusted company, we always not only provide the best product, but also the best customer service. Strict QC to assure the quality. If you are not satisfied with our items, ply feel free to contact us and give us opportunities to rectify the matter. Notice: Rated IP67 waterproof. These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater. Main application: Furniture, hotel equipment, cleaning equipment, audio equipment, industrial equipment, lighting engineering, building models, access control system, car, motorcycle, balance electric??scooter, computers, coffee machines, juicers etc.

Specifications

Mounting Thread Dais: 25mm Operation Type: ??Momentary?? Switch Contact: 1NO+1NC Pole and Throw: DPST Light Color: Red Head Shape: ??Flat Round Max Switch Rating: 5A/250VAC Light Power: 220V Terminal Type: Solder Terminal Quantity: 6 Weight: 43g Body Material: Stainless Steel (SS is much more resistant to wear and abrasion) Button Material: Stainless Steel Protection Rating: IP67 Operation Temperature: -20C to + 55C Package Include: 1 x ??Metal??Button Switch 1 x ??Rubber??O-ring?? /.
