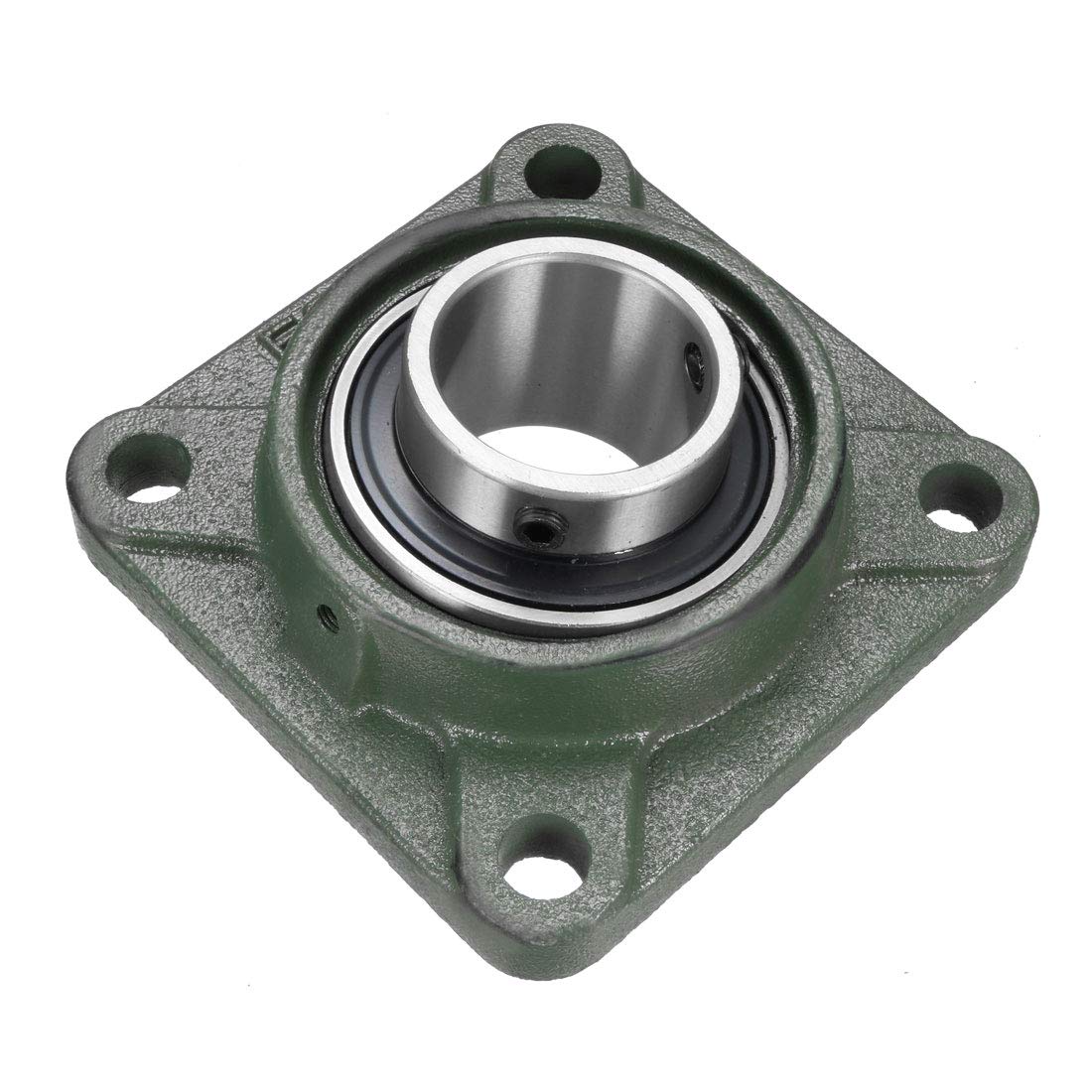

UCF210 Square Flanged Pillow Block Bearing, 50mm Bore Diameter, Cast Iron/Chrome Steel, Set Screw Lock

Key Features

• Bearing Unit No. UCF210 (Bearing No. UC210, Housing No. F210, Bore Dia. 50mm)
• Chromium Steel insert bearing, long-life, smooth and low noise
• Four-bolt Mounted Pillow Block Bearing. Cast Iron housing, rust-proof and durable
• Self-alignment bearing can correct its own alignment once it begins to rotate
• Designed for mounting onto surfaces vertical to the shaft axis

Product Description

Description

A pillow block contains a housing and an double sealed insert self-alignment bearing that avoid any misalignment.Bearing housings are made of Cast Iron while bearings are made of Chromium Steel (GCr15), giving them low friction, vibration and noise.Pillow block Bearings have two bolt holes for installation. It is easy to replace.The set screws enable the shaft to be fixed to the inner ring of the bearing and preventing slippage. The size of inner hex wrench is recommended below.Specification:Bearing Unit No.: UCF210Bearing No.: UC210Housing No.: F210Housing Material: Cast IronBearing Material: Chromium Steel (GCr15)Bore Diameter: 50mmBolt Hole Size: 16mm / 0.63" (D)Holes Center Diagonal Distance: 157mm / 6.18"Recommend Mounting Bolt Size: M14Recommend Wrench Size: 5.0mmNumber of Pack: 1 Pcs
