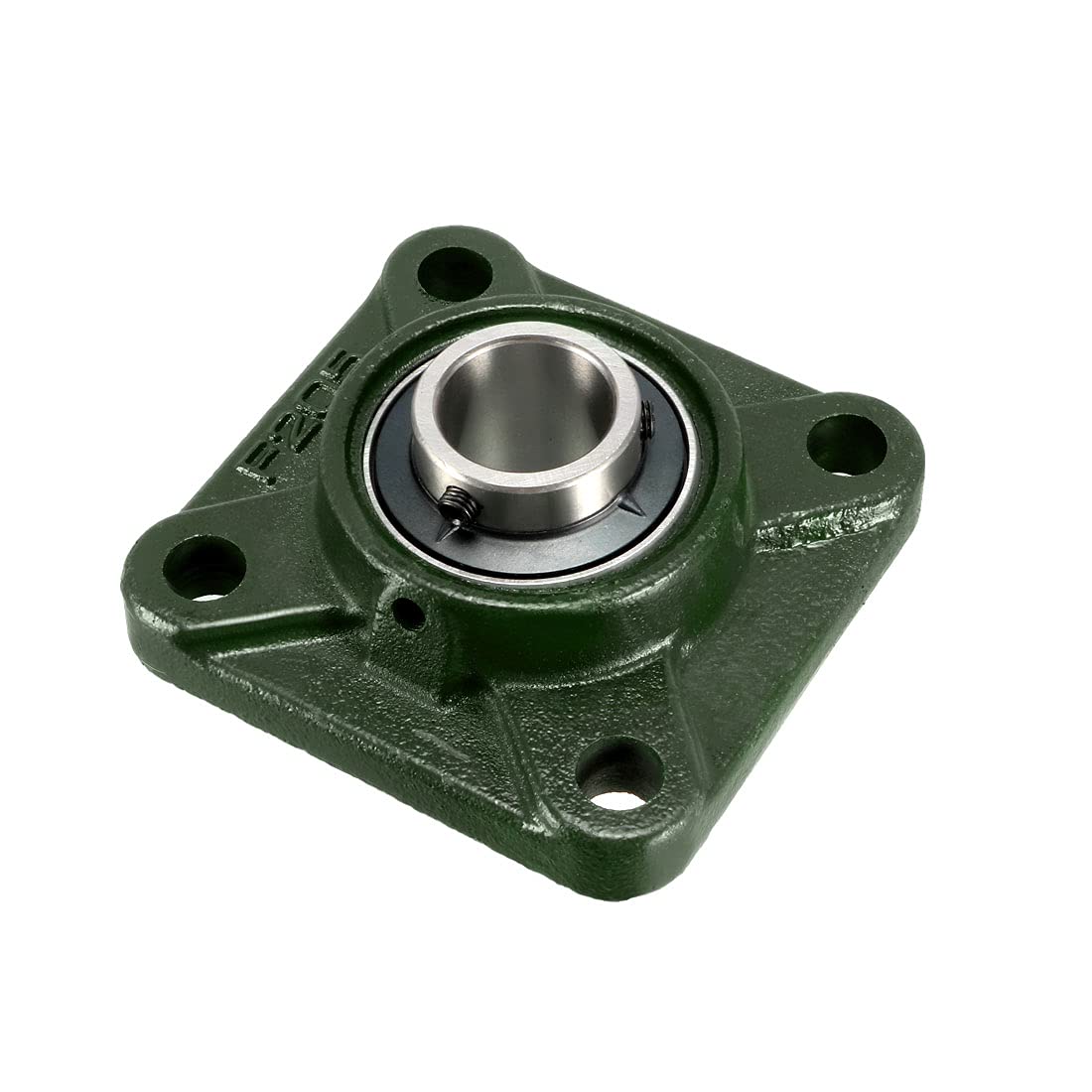

UCF205 Square Flanged Pillow Block Bearing, 25mm Bore Diameter, Cast Iron/Chrome Steel, Set Screw Lock (Pack of 1)
Key Features
- Beaging Unit No. UCF205 (Bearing No. UC205, Housing No. F205, Bore Dia. 25mm)
- Chromium Steel insert bearing, long-life, smooth and low noise
- Four-bolt Mounted Pillow Block Bearing. Cast Iron housing, rust-proof and durable
- Self-alignment bearing can correct its own alignment once it begins to rotate
- Designed for mounting onto surfaces vertical to the shaft axis
Product Description
Description
A pillow block contains a housing and an double sealed insert self-alignment bearing that avoid any misalignment.Bearing housings are made of Cast Iron while bearings are made of Chromium Steel (GCr15), giving them low friction, vibration and noise.Pillow block Bearings have two bolt holes for installation. It is easy to replace.The set screws enable the shaft to be fixed to the inner ring of the bearing and preventing slippage. The size of inner hex wrench is recommended below. Specification:Bearing Unit No.: UCF205Bearing No.: UC205Housing No.: F205Housing Meterial: Cast IronBearing Meterial: Chromium Steel (GCr15)Bore Diameter: 25mmBolt Hole Size: 12mm / 0.47 Inch (D)Holes Centre Diagonal Distance: 99mm / 3.9 InchRecommend Mounting Bolt Size: M10Recommend Wrench Size: 3mmNumber of Pack: 1 Pcs
Specifications
| Product Dimensions | 5.51 x 3.94 x 1.97 inches |
