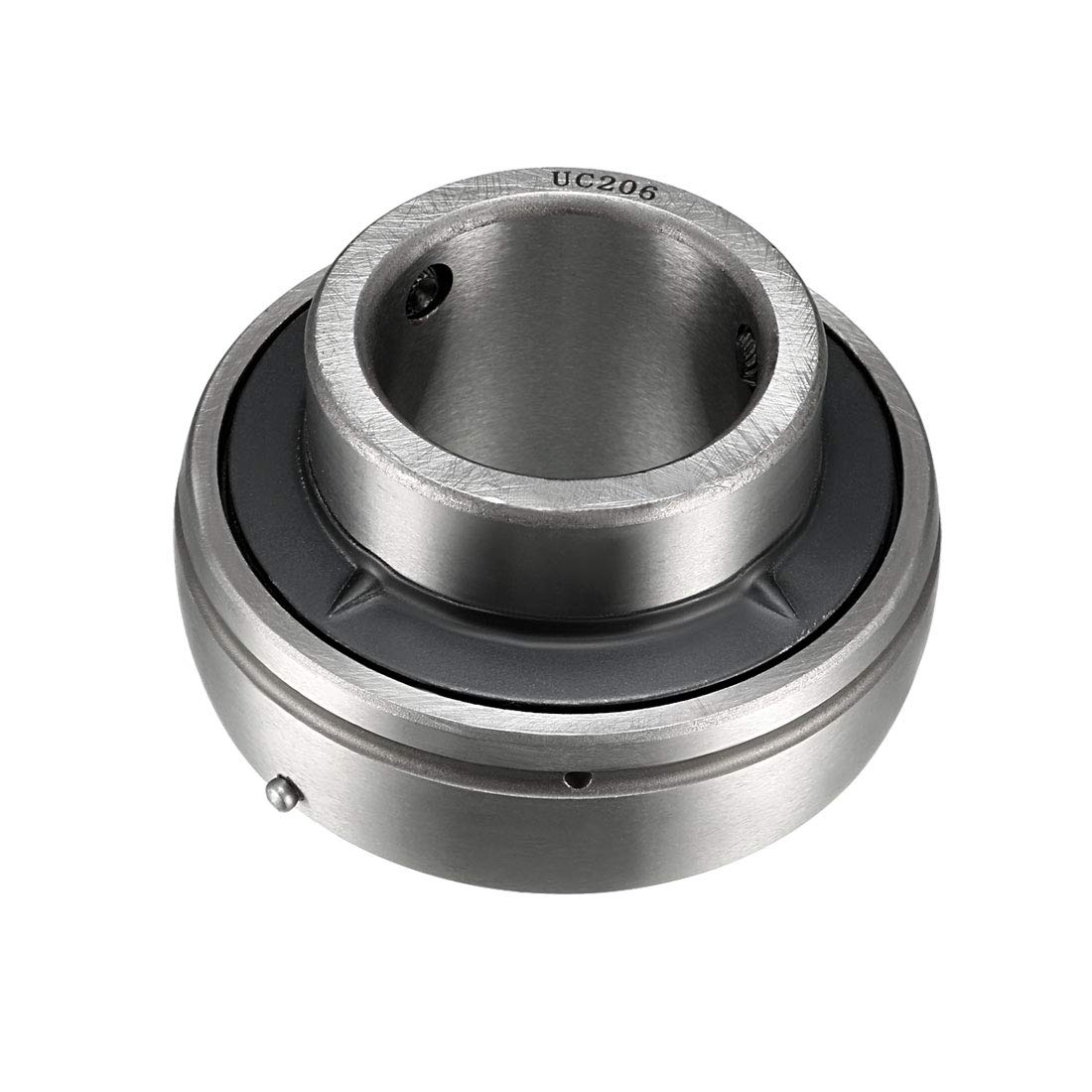

UC206 Insert Bearings, 30mm Bore Diameter, Chrome Steel, Set Screws Lock

Key Features

• Model UC206 (Bore Dia. (d) 30mm, Outer Ring Dia. (D) 62mm)
• Chromium Steel insert bearing, long-life, smooth and low noise
• Can be lubricated from lubrication holes in the outer ring
• Set screw locking prevents shaft from slipping
• Suitable for applications for both constant and alternating directions of rotation

Product Description

1. provides UC/SB series light-duty Insert Bearings that suitable for applications like shaft guidance on conveyors, road building equipment and crushers.2.Insert Bearings are locked onto the shaft by tightening the two hexagonal grub (set) screws, positioned 120 degree apart in the inner ring.3.There are two lubrication holes in the outer ring as standard, one on each side, positioned 120 degree apart.4.When mounting insert bearings on a shaft, suitable tools should be used. They can be replaced to Pillow Block unit.Specification:Model: UC206Bearing Meterial: Chromium Steel (GCr15)Bore Diameter (d): 30mmOuter Ring Diameter (D): 62mmInner Ring Thickness (B): 38.1mmOuter Ring Thickness (C): 19mmRecommend Wrench Size: 3mmNumber of Pack: 1 Pcs
