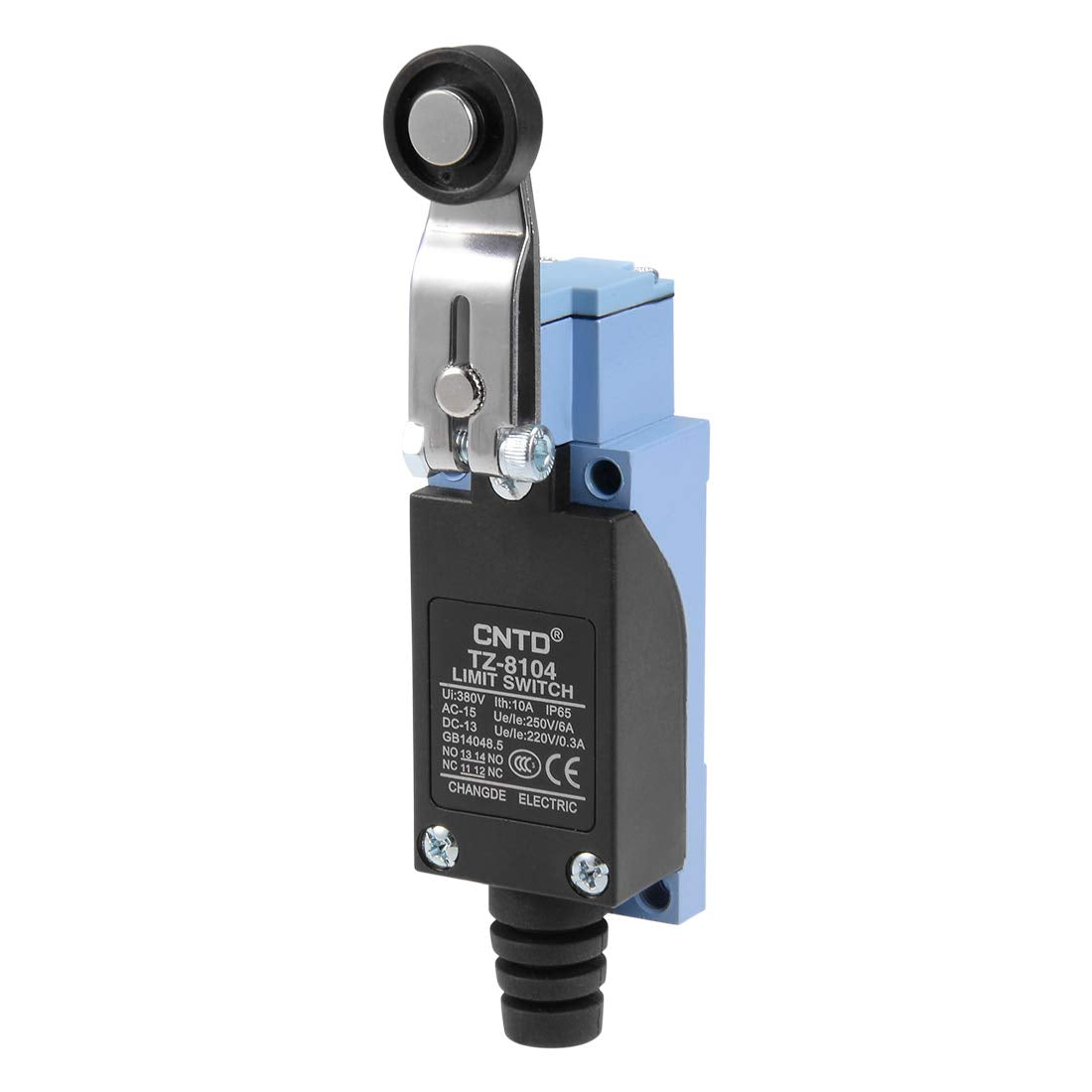

TZ-8104 Limit Switch Roller Lever Arm 1NC+1NO for CNC Mill 3D Printer Door Switch

Key Features

• Model ME-8104; Plastic Wheel Roller Lever Limit Switch
• Designed to control the movement of a mechanical part
• built-in basic switch with good electrical conductivity
• IP65 Protection. Able to withstand some washdowns, shock and vibration
• Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.

Product Description

Specifications

Product Name: Limit SwitchModel: TZ-8104Actuator Type: Plastic Wheel Roller Lever TypeRated Voltage:AC-15: (Ue/Ie) 250V/6ADC-13: (Ue/Ie) 220V/0.3AContact Configuration: 1NC+1NOMounting Hole Size: M5Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

Note

The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.These roller lever limit switches are applied to a wide range of applications including object positioning and detection. Operating Characteristics:OF max.: 750gRF min.: 100gPT max.: 20°OT min.: 50°MD max.: 12°

Features

Double circuit limit switch with build-in double reed mechanism.Zine alloy and intensive plastic shell, strong and highly rigid construction. (Head and cover snugly fit in box)Constructed in small size. Water-proof and oil-proof.Built-in basic switch with double spring mechanism, longer mechanical life.Smooth operation with greater OT.Easy-to-wire circuit opening design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection. Product Contents:1 x Limit Switch with mounting screws
