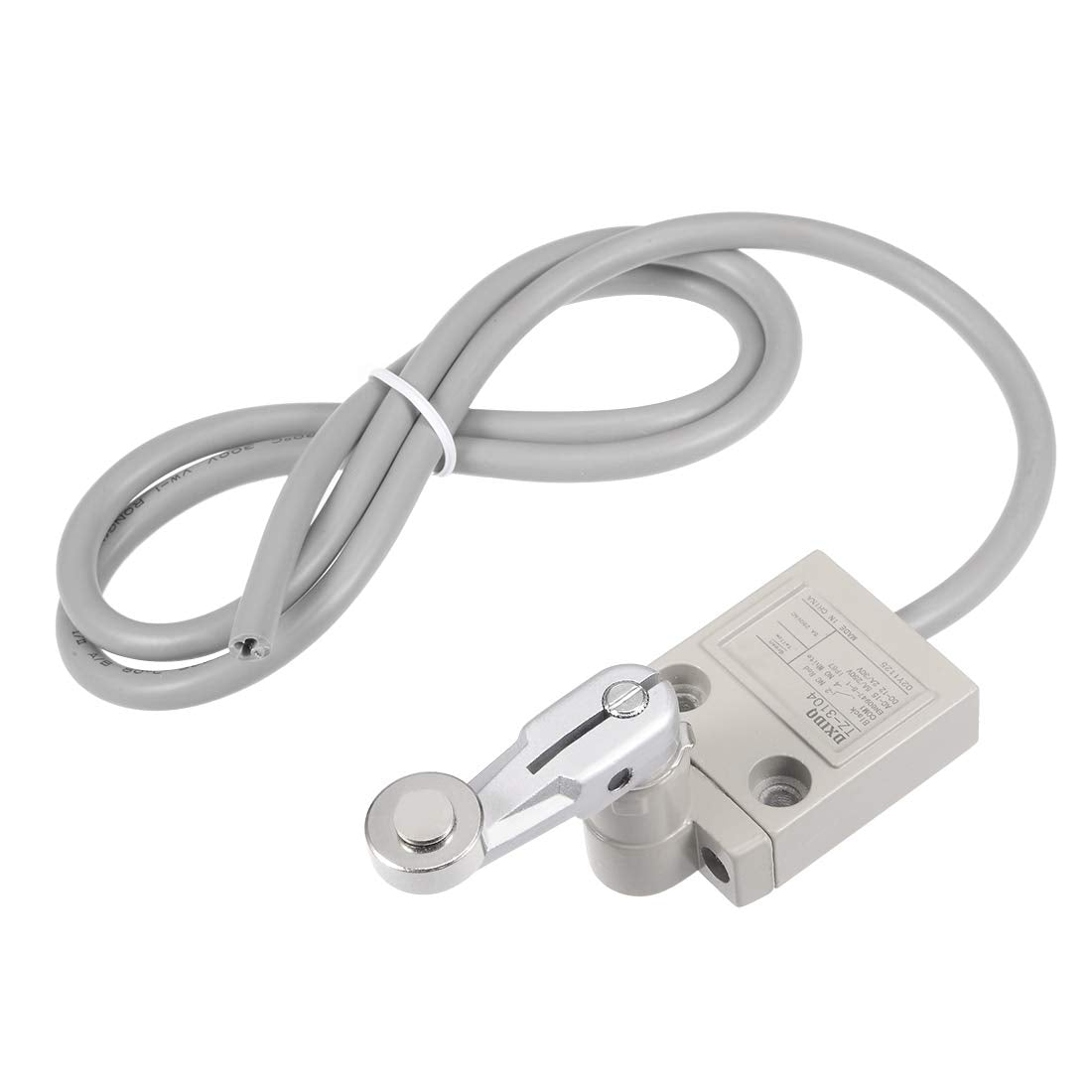

TZ-3104 3108 Roller Lever Arm Limit Switch Momentary Compact Prewired 1NC+1NO for CNC Mill 3D Printer Door Switch
Key Features
- Model TZ-3104 (3108); Metal Wheel Roller Lever Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Prewied, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Product Description
Specification:Product Name: Limit SwitchModel: TZ-3104 (3108)Actuator Type: Metal Wheel Roller Lever TypeRated Voltage:AC-15: 5A 250VDC-12: 2A 30VContact Configuration: COM-Black, NC-Red, NO-White, E-Green/YellowWire Length: ~1MBody Size: 48.5 x 40 x 16mm (L*W*T)Mounting Hole Size: 5.2mm (D)Mounting Hole Distance: 25mm The stroke in the operating direction is as large as 45° to 90°, the actual angle of which varies with the model.These roller lever limit switches are applied to a wide range of applications including object positioning and detection. Operating Characteristics:OF max.: 580gf (5.69N)RF min.: 150gf (1.47N)PT max.: 25°OT min.: 40°MD max.: 3°
Description
Double circuit limit switch with build-in double reed mechanism.Aluminium alloy shell, strong and hightly rigid construction.Smooth operation with highter OT.Prewired design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Specifications
| Product Dimensions | 8.27 x 2.76 x 2.76 inches |
