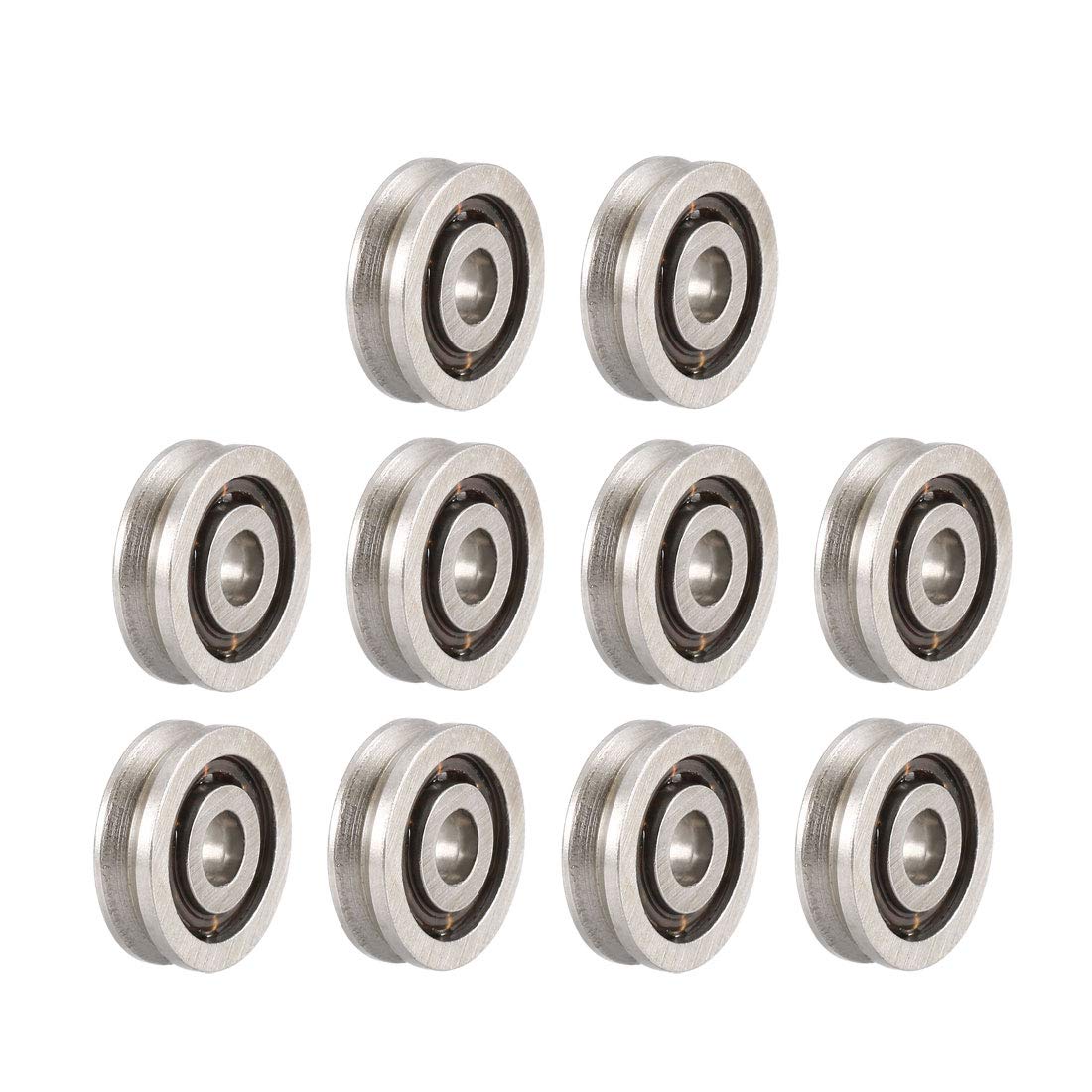

TV0310 Deep V Groove Guide Ball Bearings 3x10x3mm Single Sided Sealed (GCr15) Chrome Steel Bearings 10pcs

Key Features

• TV0310 (I.D.=3mm, O.D.=10mm, Thickness=3mm)
• TV0310 bearings are shielded on both sides to keep lubricant in
• Chromium Steel long-life bearings, smooth and low noise
• ABEC Tolerance 1 (P0), Z2 Noise Level for most general use
• Dynamic load rating of 230 newtons and Static load rating of 151 newtons

Product Description

NOTE：Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Single-row, pre-lubricated, normal accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistanceSuitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.Selection Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Specification:Model: TV0310Shielded Type: Single Sided SealedInner Race/Outer Race Material: Chrome Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 3mmOuter Diameter (D): 10mmThickness (B): 3mmGroove width: 1.2mm Groove depth: 1.1mmDynamic Load Rating (Cr): 230 NStatic Load Rating (Cor): 151 NAccuracy Class: P0 (ABEC1)Noise Level: Z2Number of Pack: 10 Pcs
