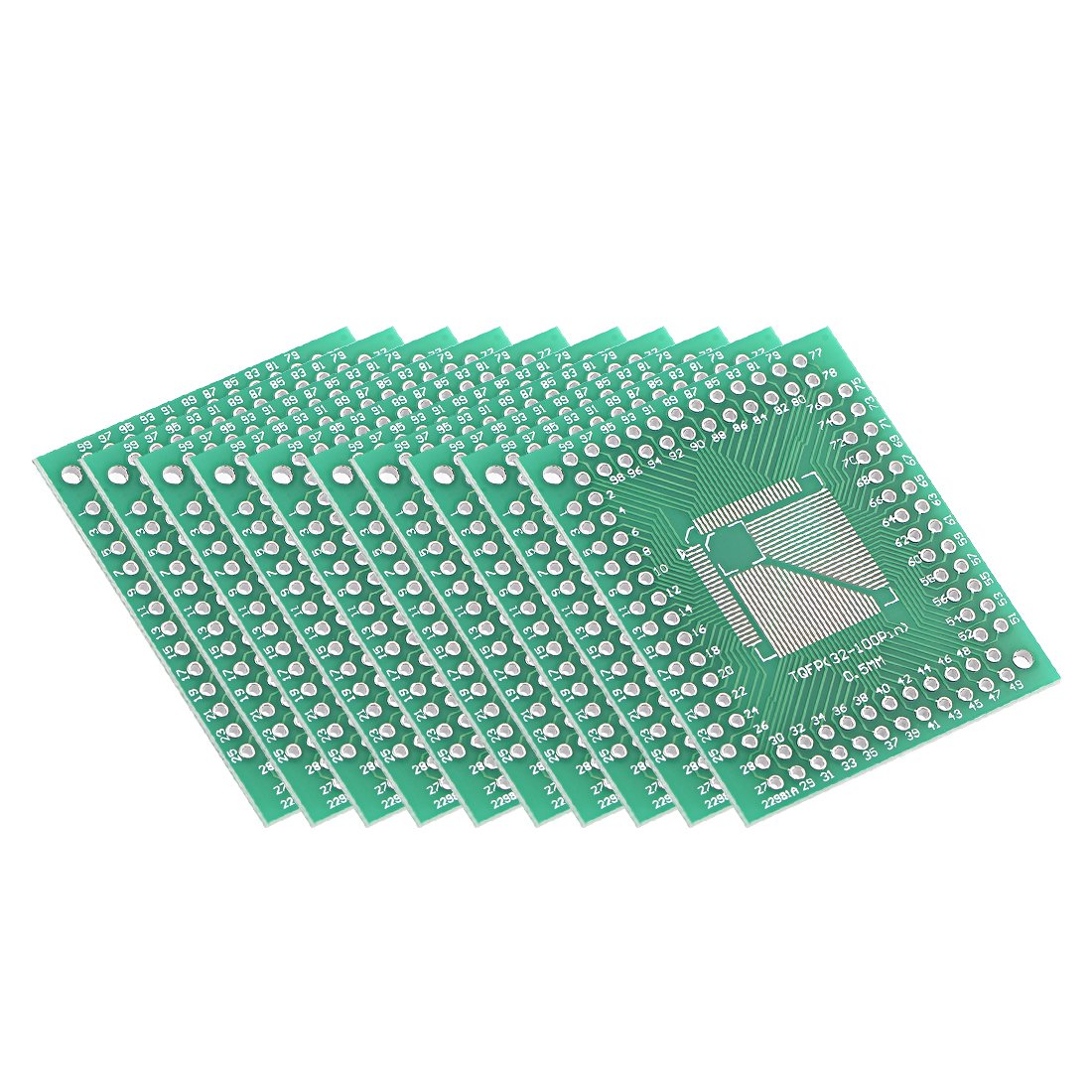

TQFP (32-100PIN) 0.5 / TQFP (32-64PIN) 0.8 to DIP Adapter PCB Board Surface Mounted Devices Converter 10pcs

Key Features

• PRODUCT NAME- FR4 Glass Fiber DIY Double-Sided Surface Mounted Devices Converter PCB Board.
• MODEL - Front is TQFP (32-100PIN) Pitch 0.5MM, Back is TQFP (32-64PIN) Pitch 0.8MM.
• PARAMETER - 32-100 Pin,Pre Tinned,Board sizeapprox. 1.5 x 1.8 inch / 38 x 46 mm ( W x L );Thicknessapprox. 1.6mm;Hole Diameter1 mm;Hole Pitch2.54mm.
• FEATURES - The proto boards are thick and double sided. The plated holes are pre-tinned and very solid which make them very easy to solder components on.
• PACKAGE CONTENT - 10pcs x DIP Converter PCB Board

Product Description

Tips:When confirming that the number of pins is sufficient, the quick check only needs to check the following three dimensions: pin pitch, chip and pads width.Suitable for MCU,series STC89C,,MSP43,etc.Feature:Front side : TQFP (32-100PIN) Pitch 0.5MMBack side : TQFP (32-64PIN) Pitch 0.8MMParameter:Product Name : Double-Sided Pre Tinned PCB BoardMaterial : Glass Fiber FR-4Board size : approx. 1.5 x 1.8 inch / 38 x 46 mm ( W x L )Terminal Number : 32-100Thickness : approx. 1.6mmHole Diameter : 1 mmHole Pitch : 2.54mm (Through 2.54 pitch pin header ,it can be used to the SIP3 DIP bread board.)Color : Green,Silver ToneNet Weight : 50g

Package content

10 pcs x DIP Converter PCB Board
