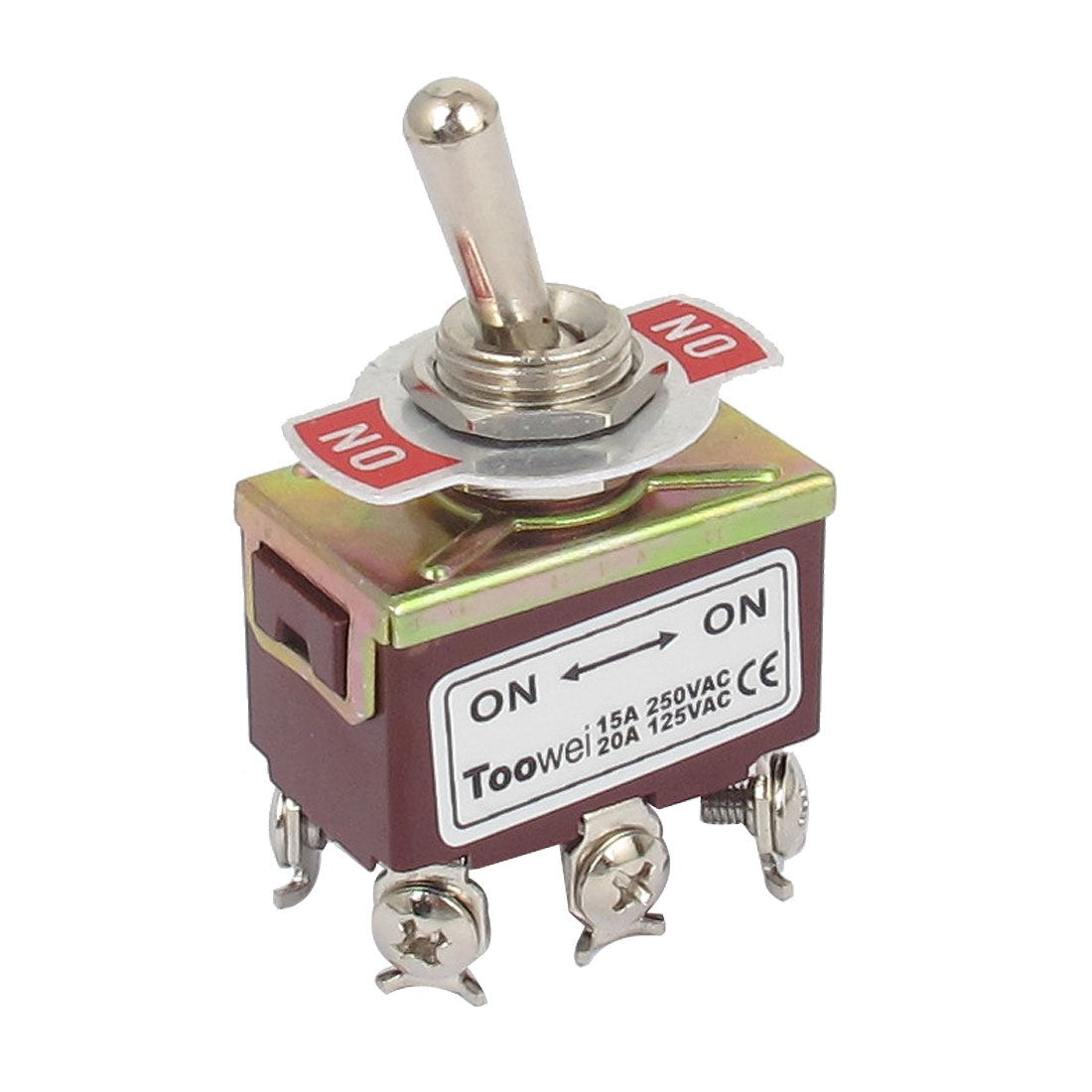

Toggle Switch, AC 250V/15A 125V/20A 6 Pin Terminals On-On 2 Position DPDT Toggle Switch

Key Features

• Product Name Toggle Switch;Type DPDT (ON/ON)
• Position 2;Mounting Hole Diameter 11.5mm / 0.45"
• Main Body Size 31 x 30 x 18mm/ 1.3" x 1.2" x 0.7" (L*W*H);Overall Height 55mm / 2.2"
• Material Metal, Resin;Weight 39g
• Package Content 1 x Toggle Switch

Product Description

Please note

The 250V/15A rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types: Max Power Rating for AC load:AC 15A 250V / AC 16A 125VMax Power Rating for DC Resistive load:DC 0.5A 250V / DC 0.9A 125VMax Power Rating for AC Lamp: AC 125V 300W / AC 250V 600W Max Power Rating for DC Lamp: DC 30V 3.5A Max Power Rating for AC Motor(Single Phase): AC 250V 400W / AC 125V 300W
