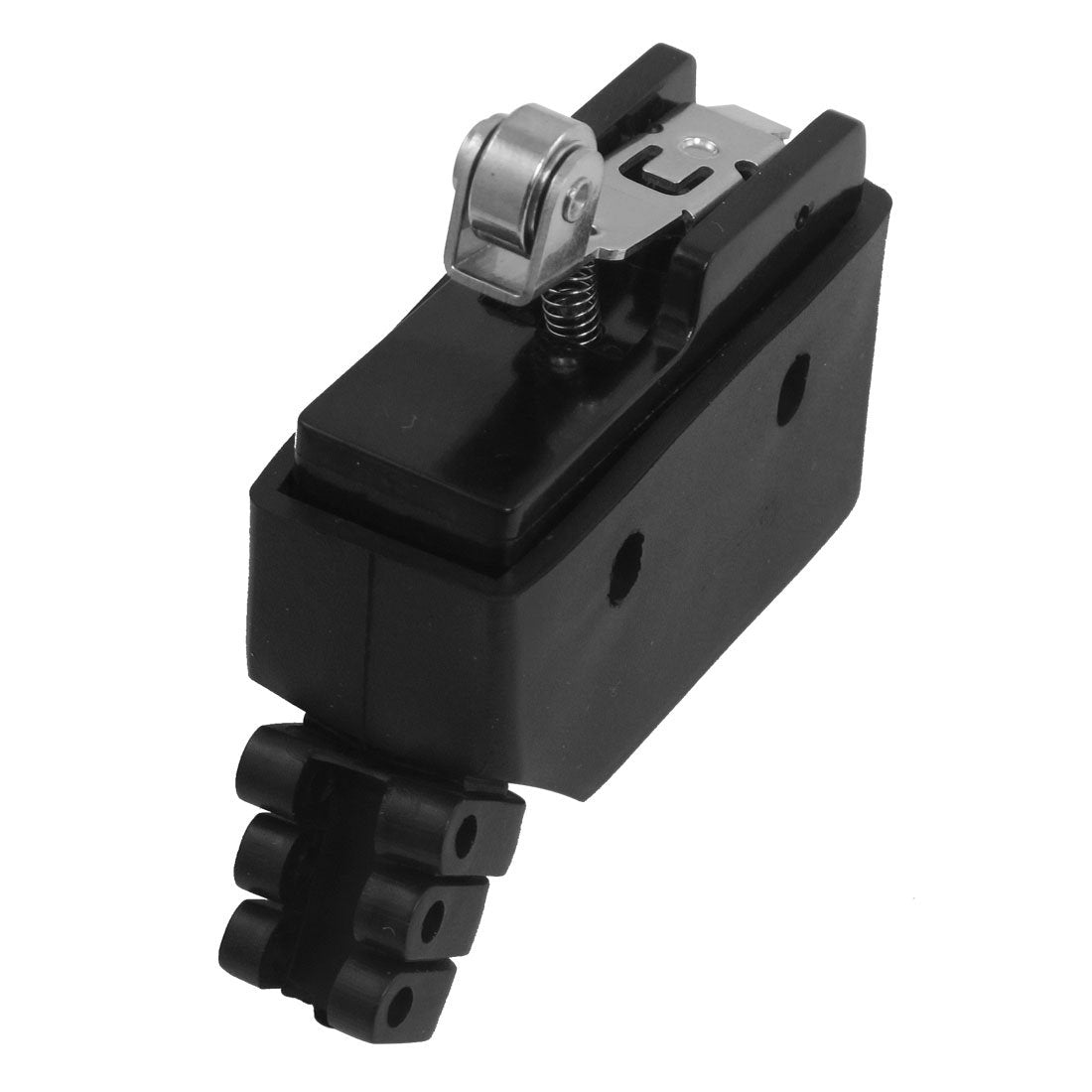

TM-1704 Short Roller Hinge Lever Momentary Limit Switch, 380V, 15 Amp for CNC Mill 3D Printer Door Switch

Key Features

• Product Name Micro Limit Switch w Cover;Model No. TM-1704;Actuator Type Short Hinge Roller Lever;Contact Type 1 NO, 1 NC
• Terminal Type 3 Screw Terminals;Ui 380V;Ith 15A;AC-15 Ue 250V, le 1.5A
• DC-13 Ue 220V, le 0.3A;Actuator Size 4 x 0.8cm / 1.6" x 0.3"(L*Max W);Roller Size 0.9 x 0.4cm / 0.35" x 0.16"(D*H)
• Hole Dia 0.45cm / 0.18";Overall Size 4.9 x 2.9 x 1.8cm / 2.9" x 1.1" x 0.7"(L*W*H);Material Metal, Plastic
• Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.

Product Description

This limit switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. The protective cover is used for protect the terminal and terminal cable, prevent the cumulate dust to lead terminals short circuit, grounding or connection wires vibration, poor contact, electric shock and so on.

Specifications
