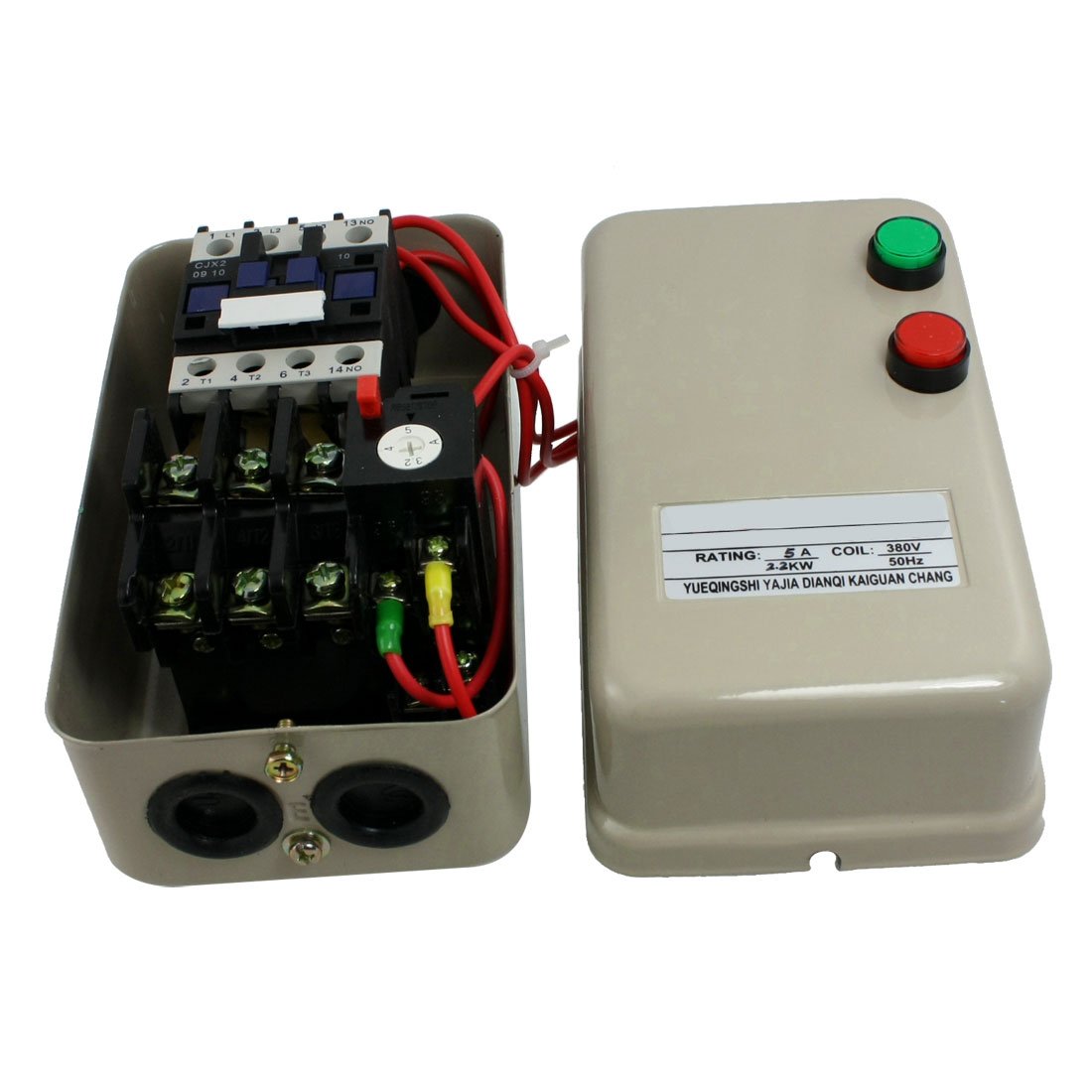

Three Phase Magnetic Starter Motor Control Coil 3 Pole, AC 380V, 3.2-5 Amp, 3 hp

Key Features

• Product name motor magnetic starter; model qcx5-2.2Kw;shell material metal; starter coil380Vac;rated power2.2Kw / 3 hp rated power2.2Kw / 3 hp
• Rated current5A rated current5A;ie(ac-1)20A ie(ac-1)20A;AC contactor AC contactor;ui660V ui660V
• Ue 660V;AC-3 6.6A;PE 5.5Kw / 7.37 hp;contact4 No, 3 phase contact4 No, 3 phase
• Setting current 3.2-5A;control box total Size 160 x 92 x 92 mm / 6.3" x 3.6" x 3.6" (L * W * H);fixing Hole diameter 5.9mm / 0.23";fixing Hole center distance 140 mm / 5.5"
• Push button diameter 15.4mm / 0.6 inch

Product Description

Magnetic starter is mainly applied to circuit of AC 50Hz or 60Hz for far distance making and breaking circuit, frequently starting and controlling motor. It features red and green momentary push button switch, low power consumption, high efficiency, safe and reliable performance. It comply with GB14048.4 standard.
