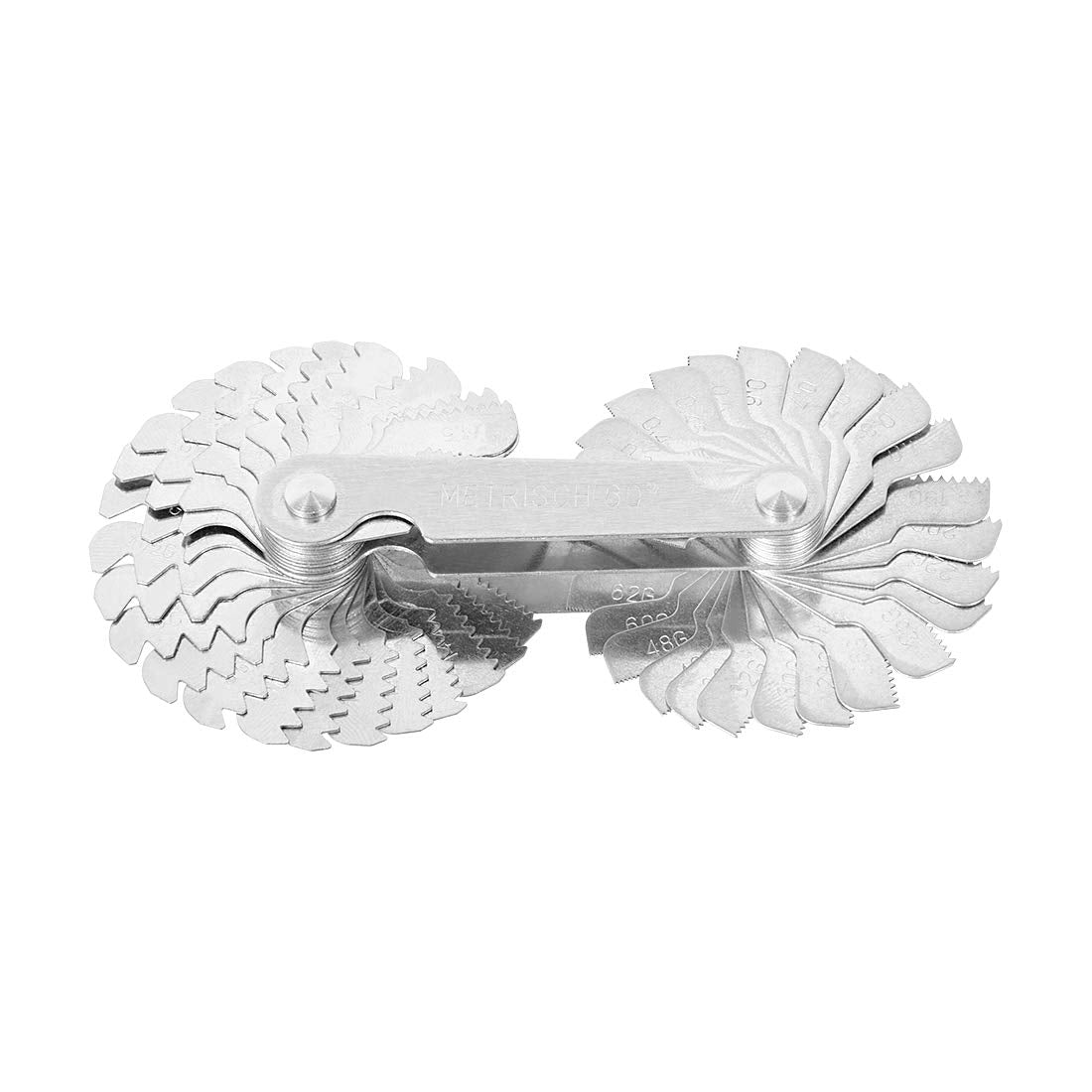

Thread Gauge Pitch Cutting Gages Measuring Tool Metric 60° SAE Whitworth 55° 52 Leaves

Key Features

• Material Stainless Steel; Size Metric 60° Whitworth - 55°
• Elastic adjustment bolts at both ends for easy use.
• Metric Size(mm) 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
• Whitworth Size 4G, 4-1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G, 30G, 32G, 36G, 40G, 48G, 60G, 62G
• The thread gauge is used to measure the pitch of the threads and provide the correct size of the drill bit, or size fasteners to determine which drill bit should be used.

Product Description

Specifications

Material: Stainless SteelMeasuring Range: : Metric 60° Whitworth - 55°Overall Size: 65x12x20mm / 2.56x0.47x0.79"

Features

Elastic adjustment bolts at both ends for easy use.Metric Size(mm): 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0Whitworth Size: 4G, 4-1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G, 30G, 32G, 36G, 40G, 48G, 60G, 62GThe thread gauge is used to measure the pitch of the threads and provide the correct size of the drill bit, or size fasteners to determine which drill bit should be used.

Package Includes

1 x Thread Gauge
