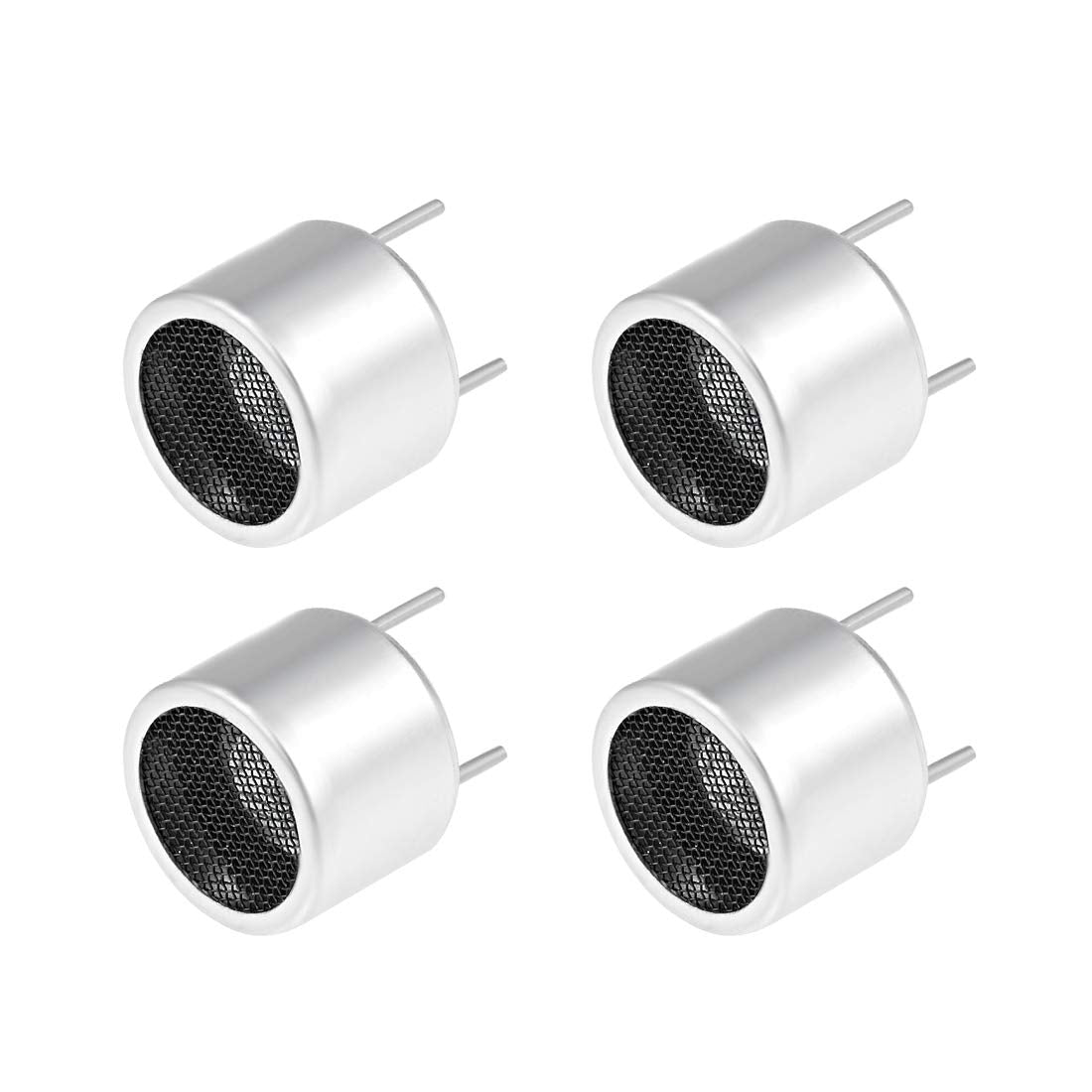

TCT40-16T/R Ultrasonic Transducer Transmitter and Receiver Probe 2Pair

Key Features

• Model TCT40-16T/R; Type Transmitter and Receiver
• Transmitters convert electrical signals into ultrasound; Receivers convert ultrasound into electrical signals
• The 40-16T and 40-16R are matched pair ultrasonic transmitters and receivers
• Operated at 40kHZ center frequency with 16mm diameter
• Application Distance measuring, object detection for general

Product Description

Description

Ultrasonic transducers or ultrasonic sensors are a type of acoustic sensor divided into three broad categories: transmitters, receivers and transceivers.Transmitters convert electrical signals into ultrasound, receivers convert ultrasound into electrical signals, and transceivers can both transmit and receive ultrasound.Ultrasonic transducers are used in systems which evaluate targets by interpreting the reflected signals.T refers the transmitter, R refers receiver. Specification:Model: TCT40-16T/RType: Transmitter and ReceiverSize: 16 x 12mm / 0.63" x 0.47" (D*T)Nominal Frequency (kHz): 40kHzEmission Pressure at 10V (0dB=0.02mPa): >117dBReceiving Sensitivity at 40KHz (0dB=V/ubar): >-65dBElectrostatic Capacity at 1KHz, <1V(PF):2000+30%

Package Includes

2 x Ultrasonic Transmitter2 x Ultrasonic Receiver
