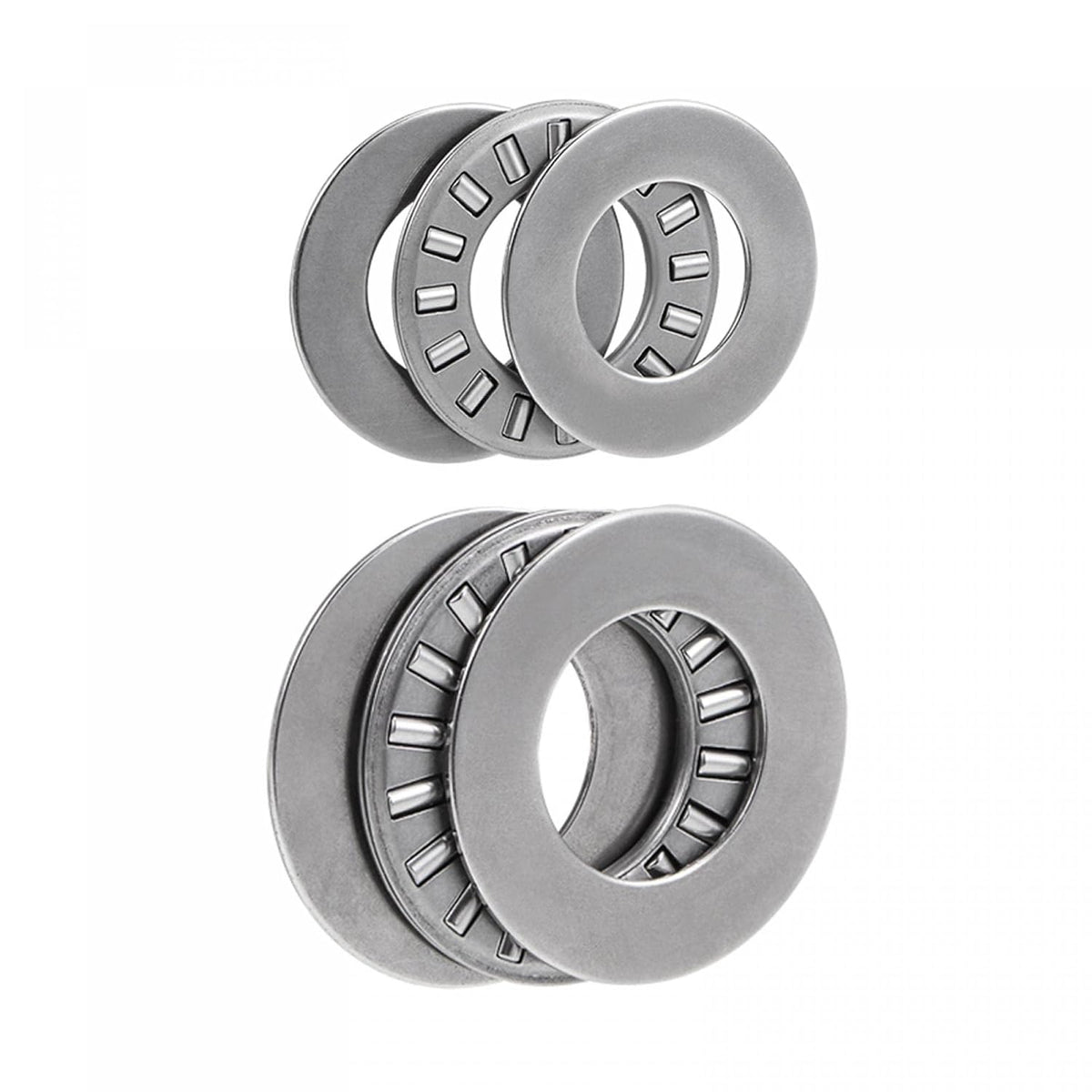

TC1018+2TRA, TC815+2TRA Needle Roller Thrust Bearings with Washers 10pcs

Key Features

• Size - Bearing Model TC1018 (I.D.=5/8", O.D.=1-1/8", Thickness=5/64"), Washer Model TRA1018; Bearing Model TC815 (I.D.=1/2", O.D.=15/16", Thickness=5/64"), Washer Model TRA815
• Material - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• Features - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• Washers - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• Package Content 5pcs x TC1018+2TRA, 5pcs x TC815+2TRA

Product Description

Description

These Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings accommodate heavy peak loads due to the small diameter deviation of the rollers within one assembly.Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.Specification:Bearing No.: TC1018+2TRA, TC815+2TRANeedle Roller Material: Chromium Steel (GCr15)Cage Material: ST14 SteelBore Diameter: 5/8", 1/2"Outside Diameter: 1-1/8", 15/16"Bearing Thickness: 5/64", 5/64"Washer Thickness: 0.8mm, 0.8mmTotal Thickness: 3.584mm, 3.584mmDynamic Load Capacity (Cr): 7.07kN, 5.74kNStatic Load Capacity (Cor): 22.55kN, 16.28kNMaximum Rotational Speed (Oil): 16000rpm, 19000rpm

Package Content

5 x TC1018+2TRA5 x TC815+2TRA
