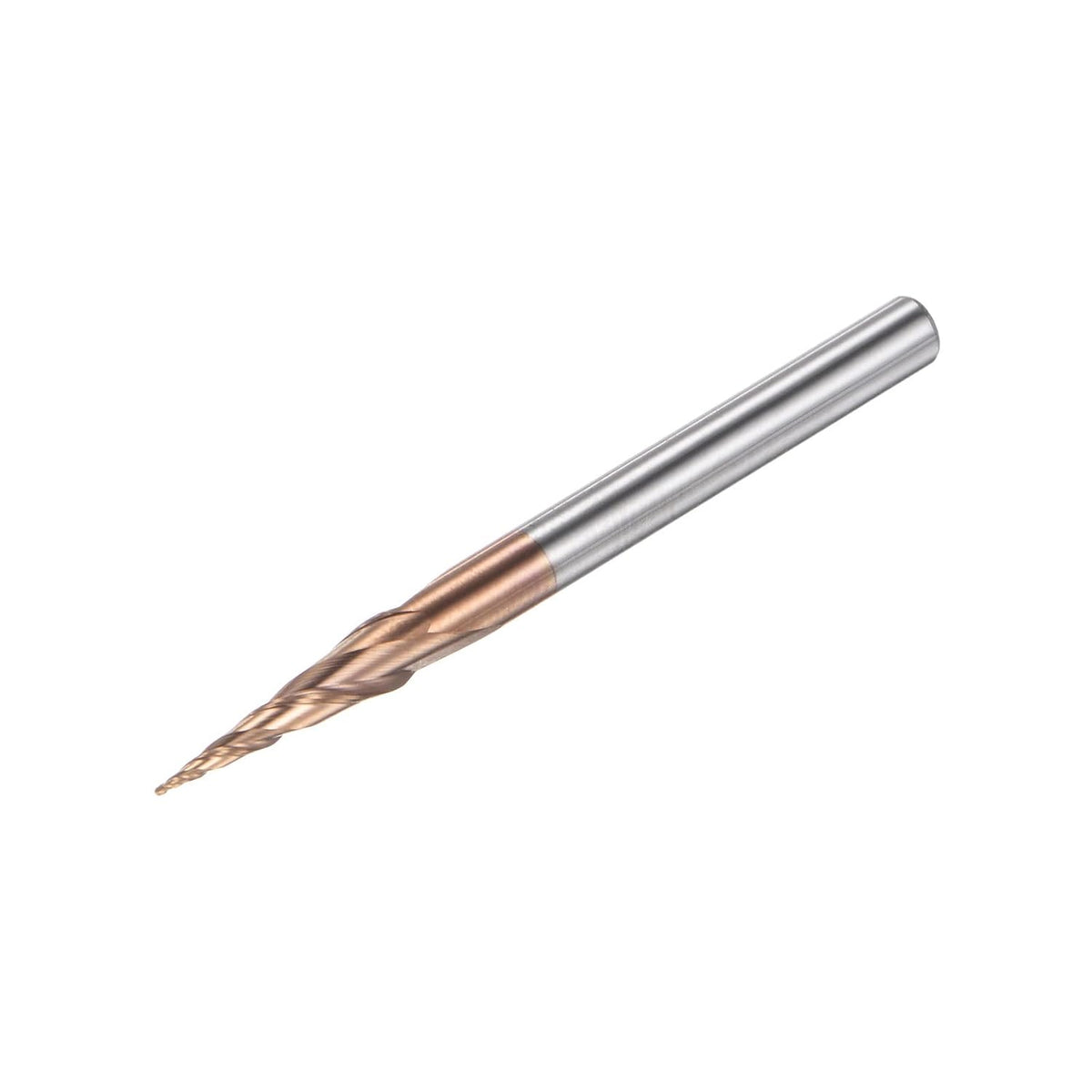

Tapered Ball Nose End Mill, TiSiN Coated Solid Carbide 2 Flute Spiral Milling Cutter, 0.25mm Radius, 0.5mm Diameter, 4mm Shank, 50mm Length, 13.3 Degree Angle

Key Features

• Tapered Ball Nose End Mill Cutting radius 0.25mm / 0.01"; cutting dia. 0.5mm / 0.02"; cutting flute length 15mm / 0.59"; shank diameter 4mm / 0.16"; overall length 50mm / 2"; milling angle 13.3 degree; cutting hardness HRC55 (max.).
• Wide Applications Suitable for milling and cutting of stainless steel, carbon steel, malleable cast iron, alloy steel, etc. For slot and hole machining. Special milling cutter for high-speed cutting applications with high hardness.
• Features Ball end cut, 2-flute design. Spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. The TiSin composite coating greatly improve hardness, wear resistance, oxidation resistance, corrosion resistance.
• Tungsten Carbide Tool Made of 0.6um micro-grain tungsten carbide, the end mill has higher hardness (HRC93) and strength, better wear resistance and heat resistance. Carbide material with good milling and cutting performance, ensures high work efficiency.
• Tips Use on CNC machining centers, engraving machines and other high-speed CNC machine tools. When working, it is necessary to add cutting fluid to protect the cutting edge and make the cutting smoother. The longer the length of the tool clamped by the chuck, the better.

Product Description

Specifications

Cutting Radius: 0.25mm / 0.01" Cutting Diameter: 0.5mm / 0.02" Cutting Flute Length: 15mm / 0.59"Shank Diameter: 4mm / 0.16"Overall Length: 50mm / 2"Milling Angle: 13.3 DegreeMaterial: Tungsten Carbide (HRC93)Finish: TiSiN CoatedEnd Cut Type: Ball EndNumber of Flutes: 2 FlutesCutting Hardness: HRC55 (Max.)Spiral Flute Angle: 35 Degree

Package Content

1pcs x Tapered Ball Nose End Mill

Descriptions

Made of 0.6um micro-grain tungsten carbide, the end mill has higher hardness (HRC93) and strength, better wear resistance and heat resistance. Carbide material with good milling and cutting performance, ensures high work efficiency. Carbide can run at higher speed than high-speed steel.Suitable for milling and cutting of stainless steel, carbon steel, malleable cast iron, alloy steel, etc. For slot and hole machining. Special milling cutter for high-speed cutting applications with high hardness.Features ball end cut, 2-flute design. Spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. The TiSin composite coating greatly improve hardness, wear resistance, oxidation resistance, corrosion resistance. Use on CNC machining centers, engraving machines and other high-speed CNC machine tools. When working, it is necessary to add cutting fluid to protect the cutting edge and make the cutting smoother. The longer the length of the tool clamped by the chuck, the better.Tips: Select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance. If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life.
