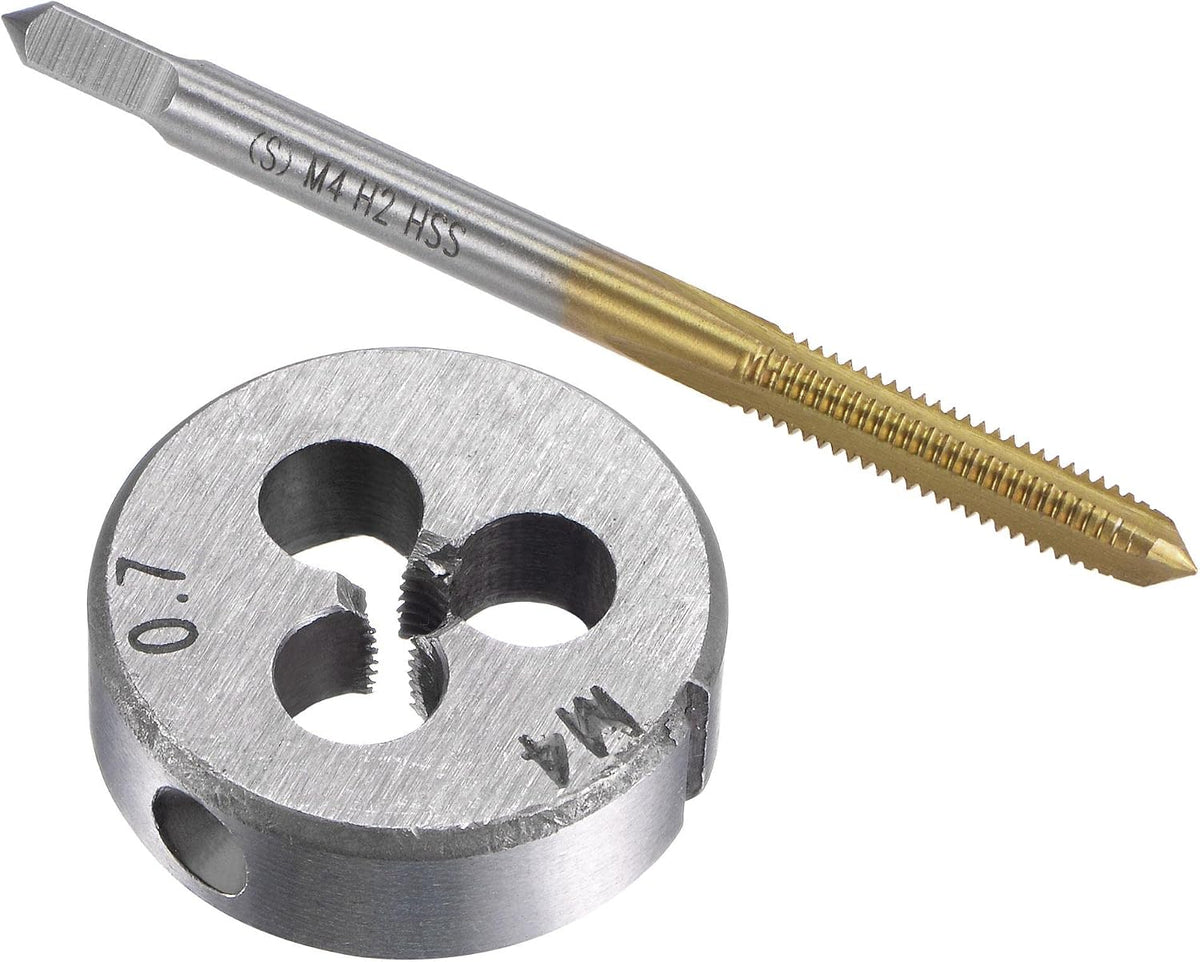

Tap and Die Set Metric M4 x 0.7, HSS (High Speed Steel) Titanium Plated Machine Straight Flute Thread Screw Tap, Alloy Steel Round Threading Die

Key Features

• Compatibility M4 x 0.7 metric tap and die set are suitable for making or repairing male and female threads, good for general purpose applications. The thread tap is straight flute design, downward chip removal.
• Applications Suitable for processing blind holes or deep holes and sticky materials. Great for fast drilling and tapping in aluminum, die steel, stainless steel, bronze, hard plastics, etc..
• Features The machine straight flute threading tap provides high hardness and high toughness. Titanium plating improve wear resistance, corrosion resistance, rust protection. Alloy tool steel round die is high strength, high toughness, abrasion and corrosion resistance.
• Easy to Use Round dies can be used with die wrench (not included). The fastening screw in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are used on drill presses, tapping machines, CNC and milling machines.
• Tips Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping.

Product Description

Specifications

Straight Flute Thread Tap:Thread Size: M4 x 0.7; Thread Length: 21mm / 0.83"; Square End Size: 3mm / 0.12"; Overall Length: 58mm / 2.28"Thread Tolerance Grade: H2; Material: HSS 6542 (High Speed Steel 6542); Finish: Titanium Plated; Cutting Direction: Right HandRound Die:Thread Size: M4 x 0.7; Outside Diameter (OD): 25mm / 0.98"; Thickness: 8mm / 0.31"Material: Alloy Steel; Finish: Uncoated; Cutting Direction: Right HandPackage Included: 1 x Tap and Die Set (1 x Straight Flute Thread Tap, 1 x Round Die)

Descriptions

1. Tap and die set are suitable for making or repairing male and female threads, good for general purpose applications. The thread tap is straight flute design, downward chip removal.2. Suitable for processing through holes or shallow blind holes . Great for fast drilling and tapping materials below HRC30, such as alloy steel, cast iron, brass, aluminum, etc..3. The machine straight flute threading tap provides high hardness and high toughness. Titanium plating improve wear resistance, corrosion resistance, rust protection. Alloy tool steel round die features high strength, high toughness, abrasion and corrosion resistance. Tap and die set are sharp and durable, and with clear threads to meet the processing requirements.4. Round dies can be used with die wrench (not included). The fastening screw in the middle of the wrench should be inserted into the slot of the die and tightened. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force. Used with tapping oil can get threads and make taps and dies more durable. Suitable lubricating oil should be added to the cutting edge of dies and taps when tapping.
