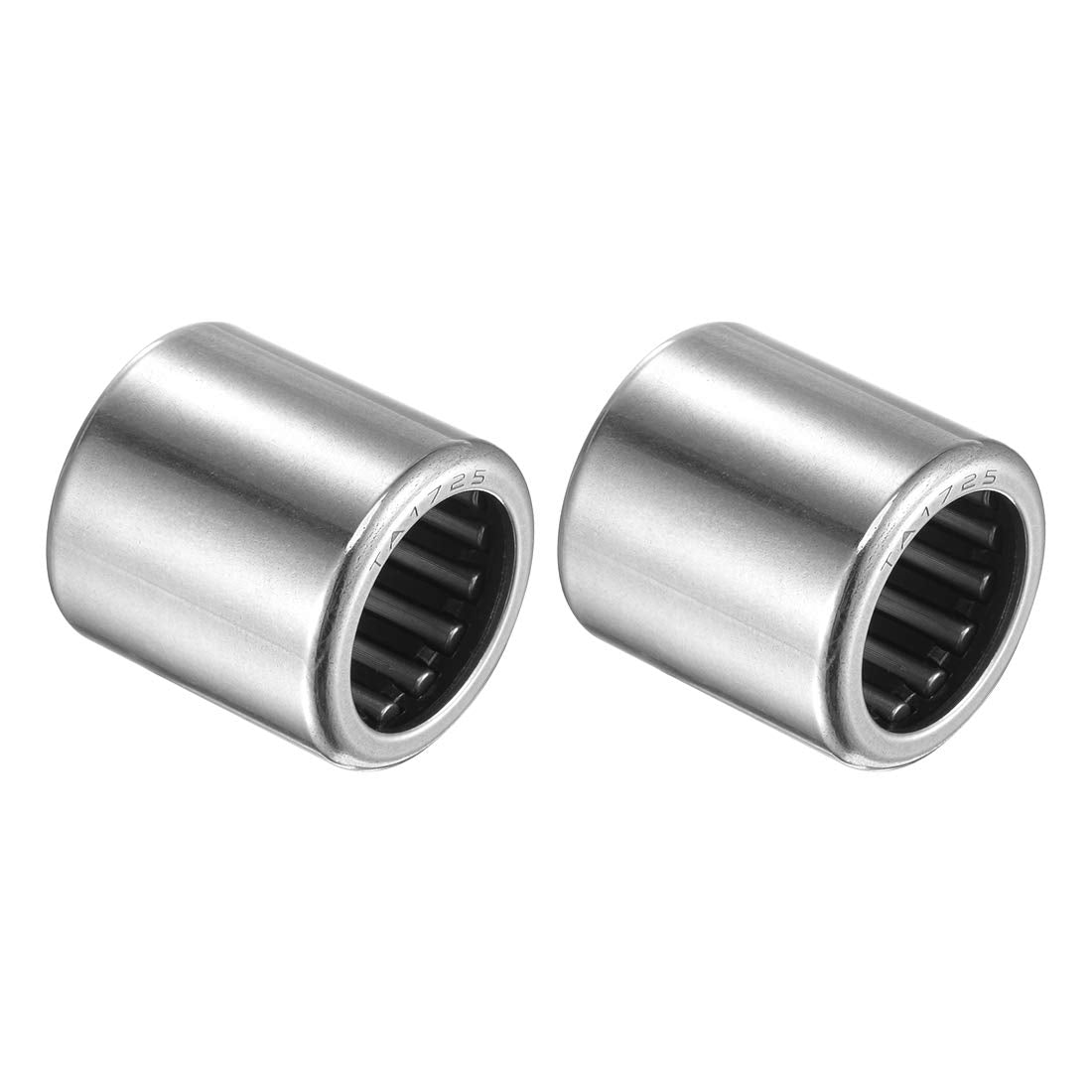

TA1725 Needle Roller Bearings 17mm Bore 24mm OD 25mm Width Chrome Steel Open End 2pcs

Key Features

• [SIZE] - Model TA1725 (I.D. (Fw)= 17mm, O.D. (D)= 24mm, Width (C)= 25mm)
• [MATERIAL] - Steel Drawn Cup, Steel Cage, Chrome Steel Needle Rollers
• [FEATURES] - The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] - Dynamic Load Rating 19300N, Static Load Rating 27400N, Limit Speed 14000RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

Product Description

Specification:Model: TA1725Drawn Cup Material: SteelCage Material: SteelNeedle Roller Material: Chromium Steel (GCr15)Accuracy: P0Bore Diameter (Fw): 17mmOutside Diameter (D): 24mmWidth: 25mmLimit Speed: 14000RPMDynamic Load Rating: 19300NStatic Load Rating: 27400NConstruction : Single RowNumber of Pack: 2 Pcs

Description

-They are compact bearings with high load carrying capacity and stiffness.-Suitable for high dynamic loads or radial-limited installation. They are mounted in housings with a tight interference fit.-Used in a variety of applications such as agricultural and construction equipment, pumps and compressors, and two-stroke engines.

Note

Use a press or special tool (not a hammer) for installation, as run out may cause local deformation or brittle breakage.
