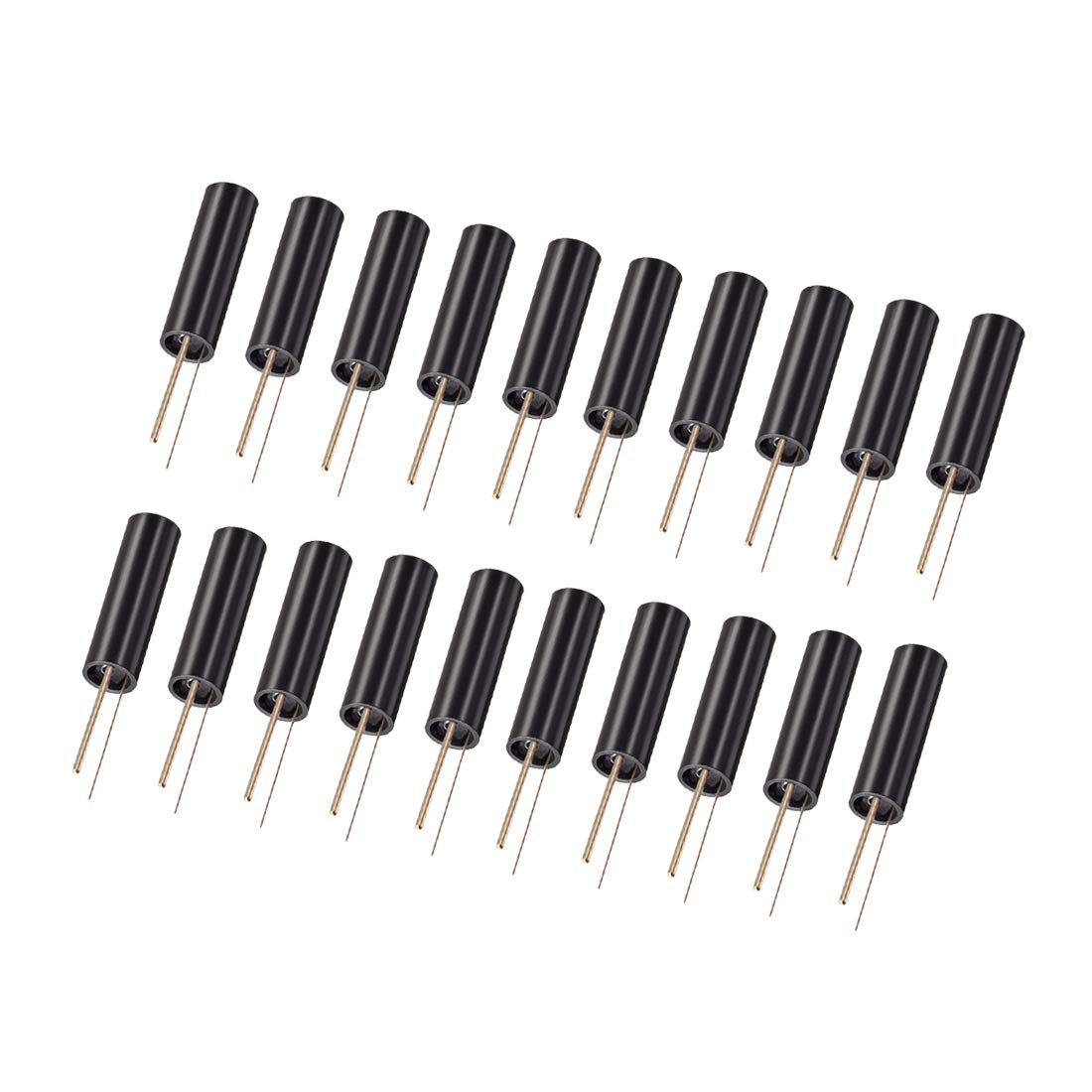

SW-18010 High Sensitivity Spring Electronic Vibration Sensor Switch 20Pcs
Key Features
- Model Number SW-18010; Max.Voltage 12V; Rated Thermal Current 5mA
- Insulation Resistance 10M ohm; Max.Temperature Resisting 100℃
- 【CHARACTERISTICS】Non-directional,turning on by any touching off angle.
- 【ADVANTAGE】Features high sensitivity, not sealed package, good performance and reliable.
- 【APPLICATION】Applied to the eletronic , small household appliance, sports equipmens and anti-theft devices.
Product Description
Description
1.Non-directional,turning on by any touching off angle.2.Applied to the eletronic , small household appliance, sports equipmens and anti-theft devices.3.Features high sensitivity, not sealed package, good performance and reliable.4.In silent surroundings it keeps on turning off state with any angle, When it is hit by outside force and comes to the proper shaking state or the moving speed comes to the proper centric force, then the current leader point will display turning on state for a short time the electric character will be changerd, as the outside force disappears, it restores the turning off state. Specification:Product Name: Vibration SwitchModel Number: SW-18010Max.Voltage: 12VRated Thermal Current: 5mAInsulation Resistance: 10M ohmMax.Temperature Resisting: 100℃Pin Size: 9mm x 0.6mm(L*D)Body Dimension: 14mm x 4.3mm(L*D)
Package Content
20 x Vibration Switch
Specifications
| Item Weight | 0.634 ounces |
| Product Dimensions | 4.1 x 2.9 x 1 inches |
