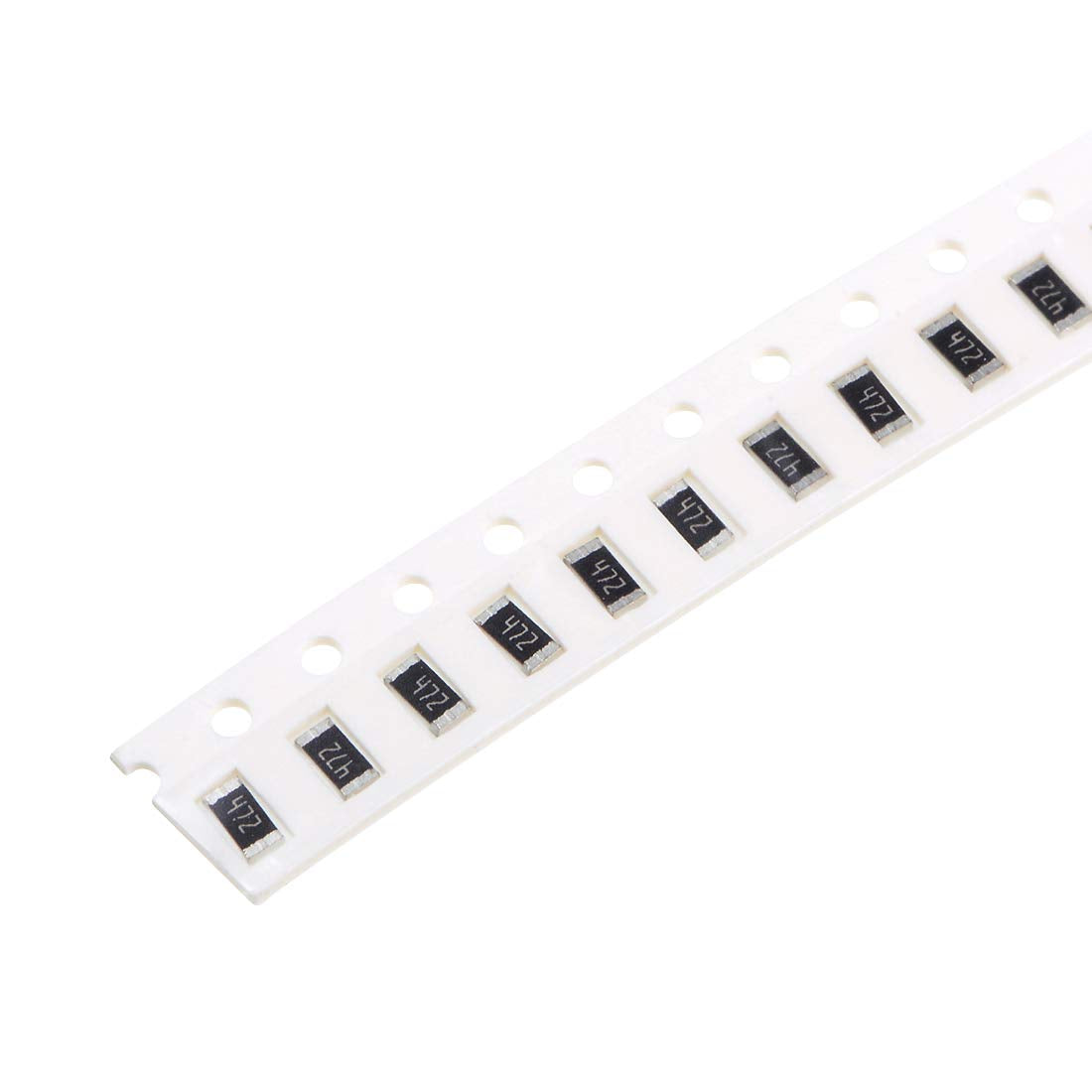

Surface Mounted Devices Chip Resistor, 4700 Ohm 1/4W 1206 Fixed Resistors, 5% Tolerance 300pcs

Key Features

• MATERIAL - glass glaze.
• PARAMETER - rated resistance4700 Ohm; tolerance 5%.rated power 1/4W; device package/case 1206; size 0.12-inch/3.2mm x 0.06-inch/1.6mm x 0.02-inch/0.55mm(L*W*T).
• FEATURE - thick film chip resistors,two end soldering,surface mount.
• APPLICATION - widely used in telecommunications Equipment, and tape records, TV tuners, industry.
• PACKAGE CONTENT - 300 (+/-2%) x resistors.

Product Description

Small size and light weight, highly reliable multilayer electrode construction, for all soldering process.The Surface Mounted Devices chip resistor is widely used in telecommunications Equipment, and tape records, TV tuners, industry, etc.

Note

Generally designed and used according to 70% of the rated and working power.

Specifications

Material: Glass GlazeFeature: Thick Film Chip ResistorsDevice Package / Case: 1206Per Piece Size: 0.12-inch/3.2mm x 0.06-inch/1.6mm x 0.02-inch/0.55mm(L*W*T)Tolerance: ±5%Resistance Value: 4700 OhmMark: 472Power (Wattage): 1/4WRated Voltage: 34VMaximum Working Voltage: 200VNumber of Terminals: 2

Package Content

300 (±2%) x Resistors
