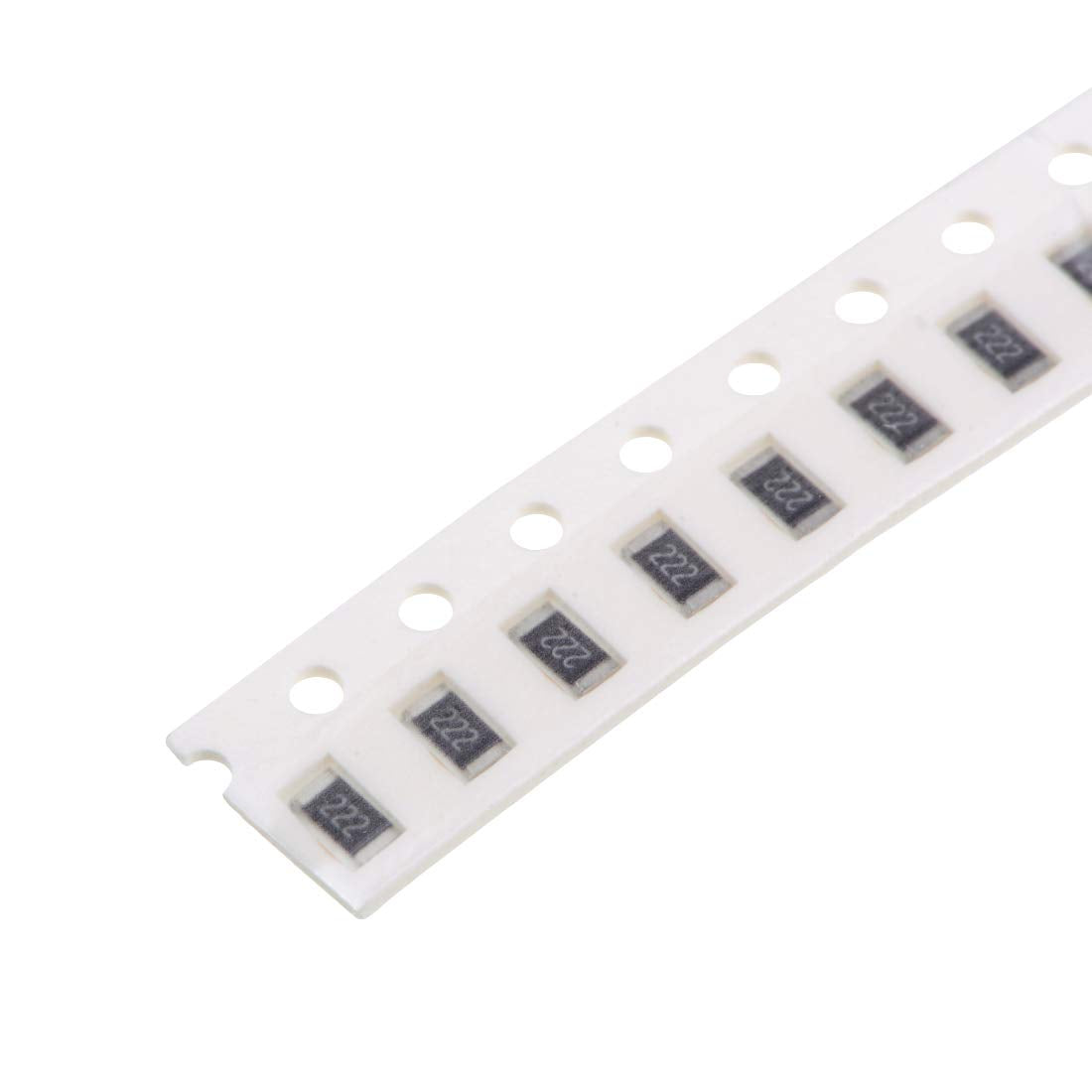

Surface Mounted Devices Chip Resistor, 2200 Ohm 1/4W 1206 Fixed Resistors, 5% Tolerance 1000pcs

Key Features

• MATERIAL - glass glaze.
• PARAMETER - rated resistance2200 Ohm; tolerance 5%.rated power 1/4W; device package/case 1206; size 0.12-inch/3.2mm x 0.06-inch/1.6mm x 0.02-inch/0.55mm(L*W*T).
• FEATURE - thick film chip resistors,two end soldering,surface mount.
• APPLICATION - widely used in telecommunications Equipment, and tape records, TV tuners, industry.
• PACKAGE CONTENT - 1000 (+/-2%) x resistors.

Product Description

Small size and light weight, highly reliable multilayer electrode construction, for all soldering process.The Surface Mounted Devices chip resistor is widely used in telecommunications Equipment, and tape records, TV tuners, industry, etc.

Note

Generally designed and used according to 70% of the rated and working power.

Specifications

Material: Glass GlazeFeature: Thick Film Chip ResistorsDevice Package / Case: 1206Per Piece Size: 0.12-inch/3.2mm x 0.06-inch/1.6mm x 0.02-inch/0.55mm(L*W*T)Tolerance: +/-5%Resistance Value: 2200 OhmMark: 222Power (Wattage): 1/4WRated Voltage: 23VMaximum Working Voltage: 200VNumber of Terminals: 2

Package Content

1000 (+/-2%) x Resistors
