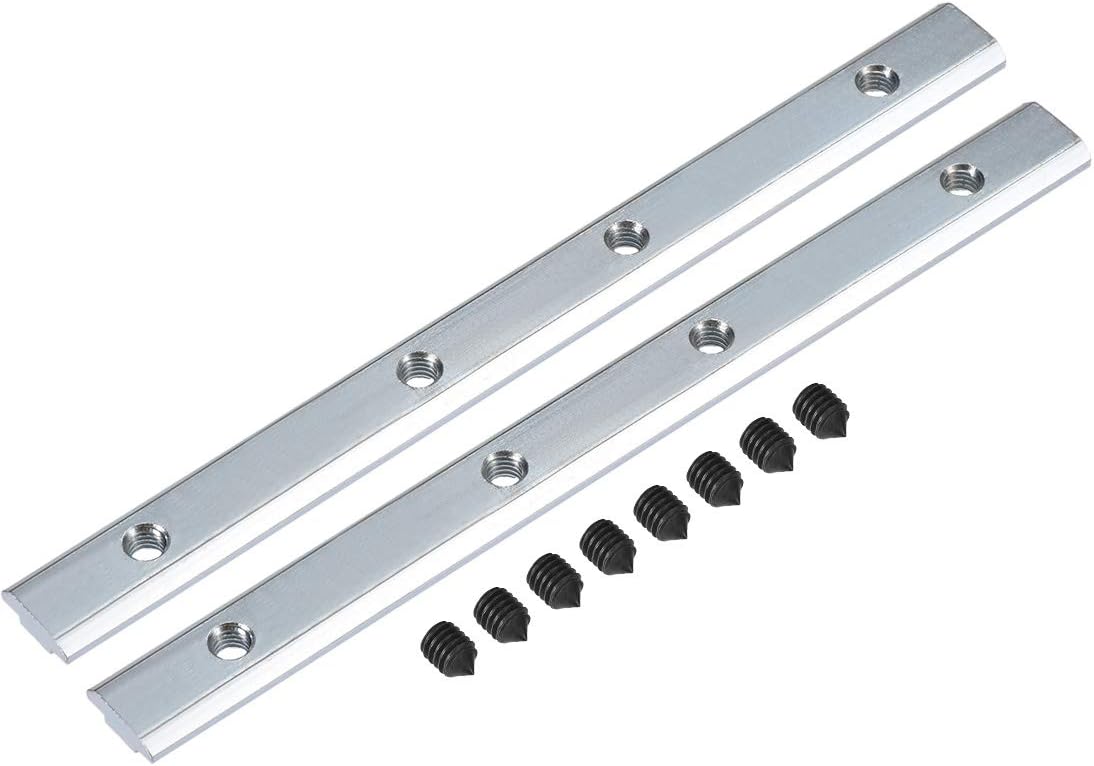

Straight Line Connector, 7 Inch Joint Bracket with Screws for 3030 Series T Slot 8mm Aluminum Extrusion Profile, 2 Pcs

Key Features

• [USED FOR] - Aluminum profile 3030 series with slot 8mm.
• [SIZE] - 7.09" (180mm) long, 0.63" (16mm) wide, 0.24" (6mm) thick.
• [MATERIAL] - Constructed from carbon steel, zinc plated finish, good rust resistance and durable to use.
• [EASY TO USE] - Package come with the screws for easy installation. When it is installed, it is inserted into the pit of the joint of two profiles, and then tightened with set screws.
• [WIDELY USED] - To build CNC routers, 3D printers, CNC laser cutters, CNC plasma cutters, robotics projects, 3D carvers, machine guards, workstations, etc.

Product Description

Used for 8mm slot standard 30mm aluminum extrusion profiles.Made of carbon steel, zinc plated finish, good rust and durable to use.To connect aluminum profiles straight lengthened connection between two profiles.Built-in connection with beautiful and simple features. Widely used for building industrial aluminum frame structures, 3D printers, CNC Routers, CNC laser cutters, Robotics Projects.Package come with the screws for easy installation. But it would be hard for us to know the length of the screw your particular project would require, you can substitute other suitable screws by yourself if you think you need it. Specification:Material: Carbon SteelFinish: Zinc PlatedHole Quantity: 4Screw Hole Size: M6Screws Size: M6 x 8mm / 0.24" x 0.31" (Thread.Dia *L)Slot: 8mm / 0.31"Total Size: 180mm x 16mm x 6mm / 7.09" x 0.63" x 0.24" (L*W*T)

Package Content

2 x Straight Inside Connectors8 x Screws
