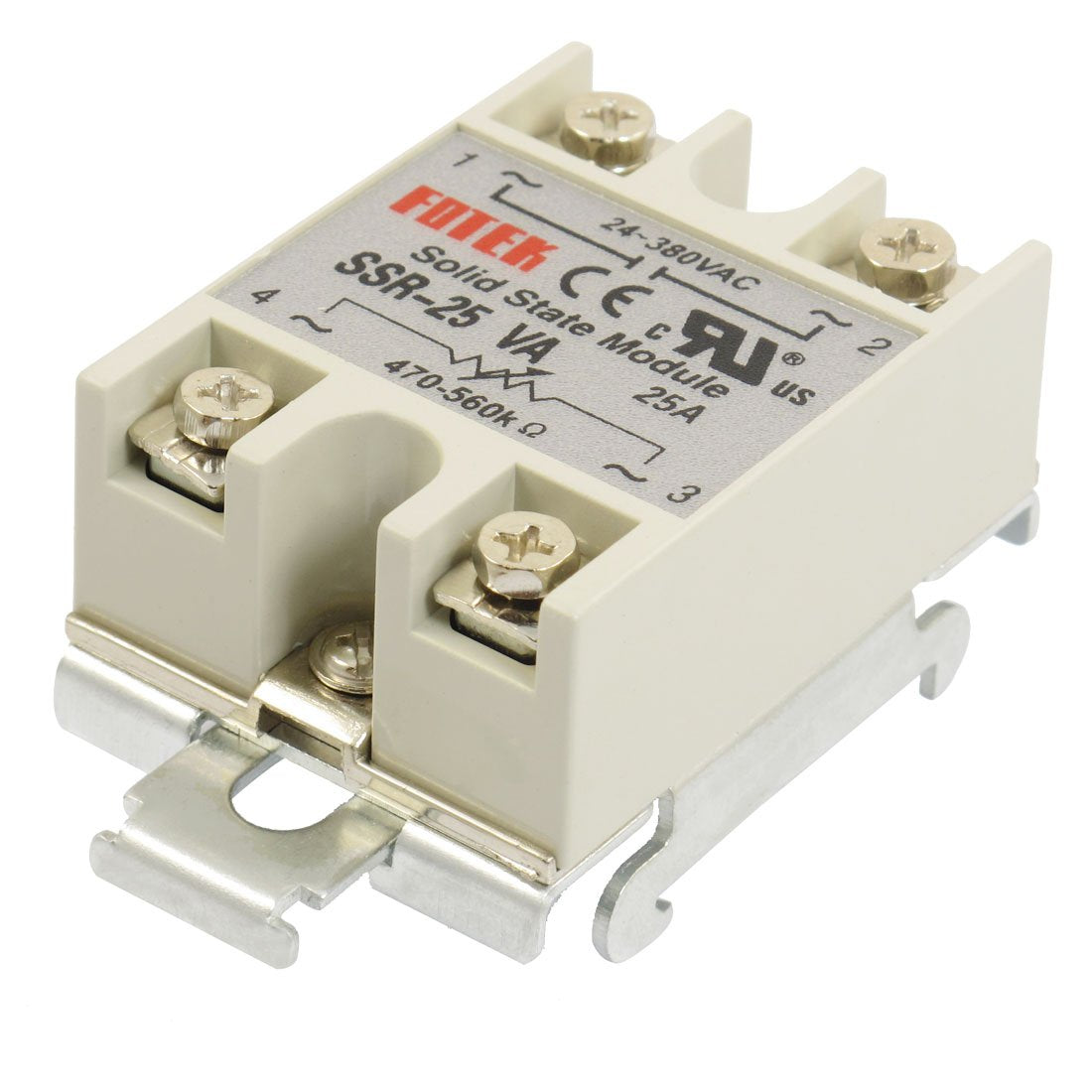

SSR Single Phase Resistance Type Adjustable Solid State Relay DIN Rail Mount, 25 Amp

Key Features

• Product name adjustable solid state relay W DIN rail base; Type ssr-25va;material metal, plastic
• Rated load current 25A;load Voltage AC 24-380v
• Potentiometer output resistance 470-560kohm(potentiometer is NOT included);for DIN rail 35mm/1.4 inch
• Total Size (approx.) 8 x 4.4 x 4.6cm / 3.1" x 1.7" x 1.8" (L * W * H );color gray, Silver Tone
• Weight 162G;package content 1 x adjustable solid state relay W DIN rail base

Product Description

DESCRIPTION

features

scsr-25va Type, output AC 24-380v, 470-560kohm potentiometer input resistance, fit for 35mm DIN rail, clear plastic cover, bolts fixed. Solid state relay ideal for automatic process control application, a must component for temperature controller and other machinery control system. When you use this adjustable solid state relay, you need a potentiometer to adjustable AC power.(Here is not included).
