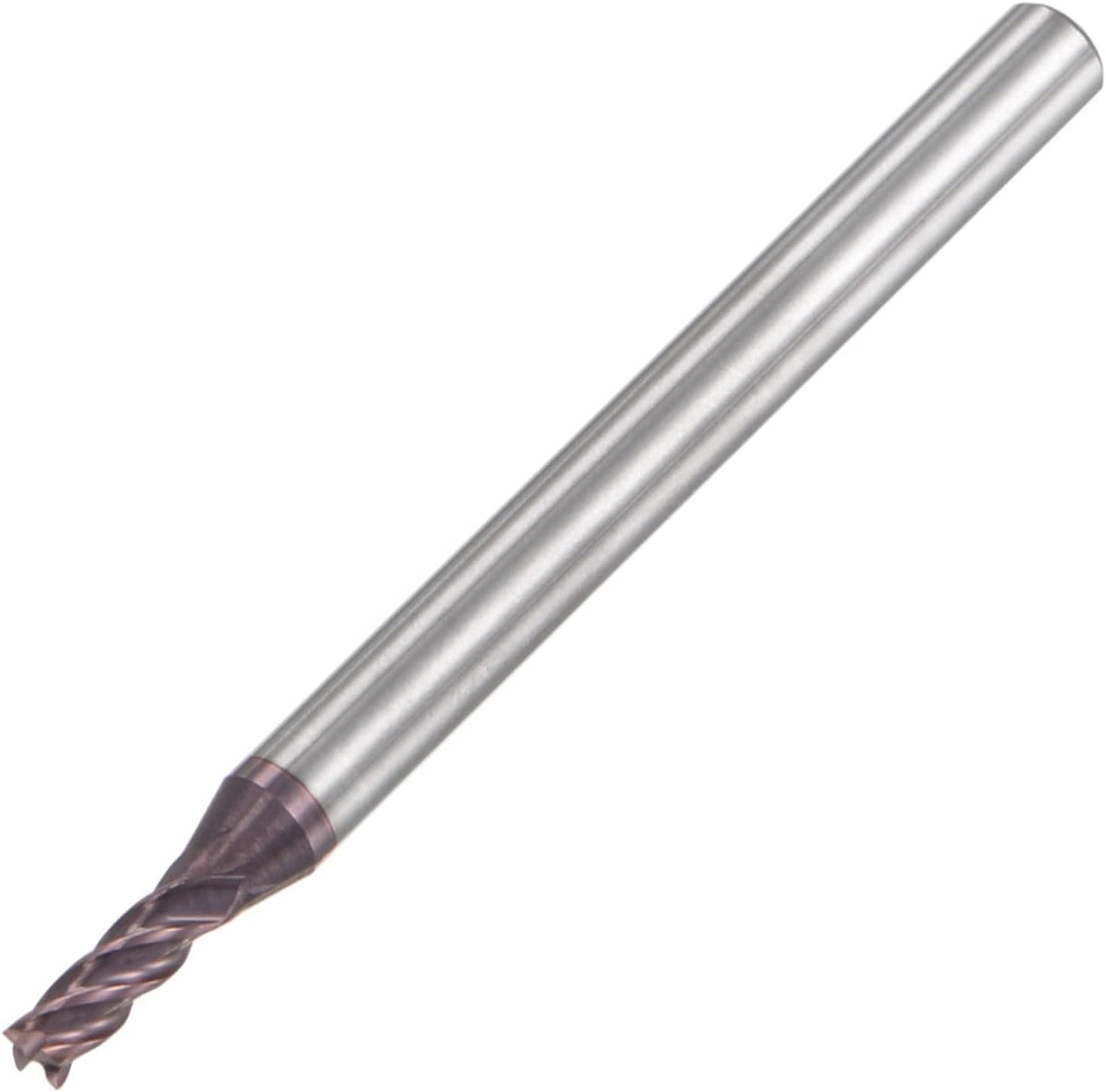

Square Nose End Mill, 2.5mm Tip Dia Solid Carbide AlTiN Coated CNC Router Bits 4 Flute Spiral Milling Cutter HRC55 with 4mm Shank 50mm (2-inch) Length

Key Features

• Square Nose End Mill Cutting Diameter 2.5mm / 0.1"; cutting flute length 8mm / 0.31"; shank diameter 4mm / 0.16"; overall length 50mm / 2"; cutting hardness HRC55; spiral angle 35 degree.
• Solid Carbide Tool M30 carbide end mill cutter is super fine grain carbide, with high hardness, wear resistance, and heat resistance. Carbide material with good milling and cutting performance. Carbide can run at higher speed than high-speed steel.
• Wide Applications Suitable for cutting carbon steel, malleable cast iron, alloy steel, stainless steel, die steel, tool steel, heat treated steel. For shallow groove machining, side milling and finishing. Use on CNC machining centers, engraving machines and other high-speed CNC machine tools.
• Features Square end cut, 4-flute design, spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. AlTiN composite coating can increase hardness, reduce oxidation wear for better wear resistance and extend tool life.
• Tips The longer the length of the tool clamped by the chuck, the better. Combined with the material to be processed, select an appropriate feed rate and cutting speed to obtain better processing accuracy and performance.

Product Description

About this item Square Nose End Mill: Cutting Diameter: 2.5mm / 0.1"; cutting flute length: 8mm / 0.31"; shank diameter: 4mm / 0.16"; overall length: 50mm / 2"; cutting hardness: HRC55; spiral angle: 35 degree. Solid Carbide Tool: M30 carbide end mill cutter is super fine grain carbide, with high hardness, wear resistance, and heat resistance. Carbide material with good milling and cutting performance. Carbide can run at higher speed than high-speed steel. Wide Applications: Suitable for cutting carbon steel, malleable cast iron, alloy steel, stainless steel, die steel, tool steel, heat treated steel. For shallow groove machining, side milling and finishing. Use on CNC machining centers, engraving machines and other high-speed CNC machine tools.

Features

Square end cut, 4-flute design, spiral chip space design for fast and clean chip removal. Sharp cutting edge provides smooth cutting. AlTiN composite coating can increase hardness, reduce oxidation wear for better wear resistance and extend tool life. Tips: The longer the length of the tool clamped by the chuck, the better. Combined with the material to be processed, select an appropriate feed rate and cutting speed to obtain better processing accuracy and performance. ›
