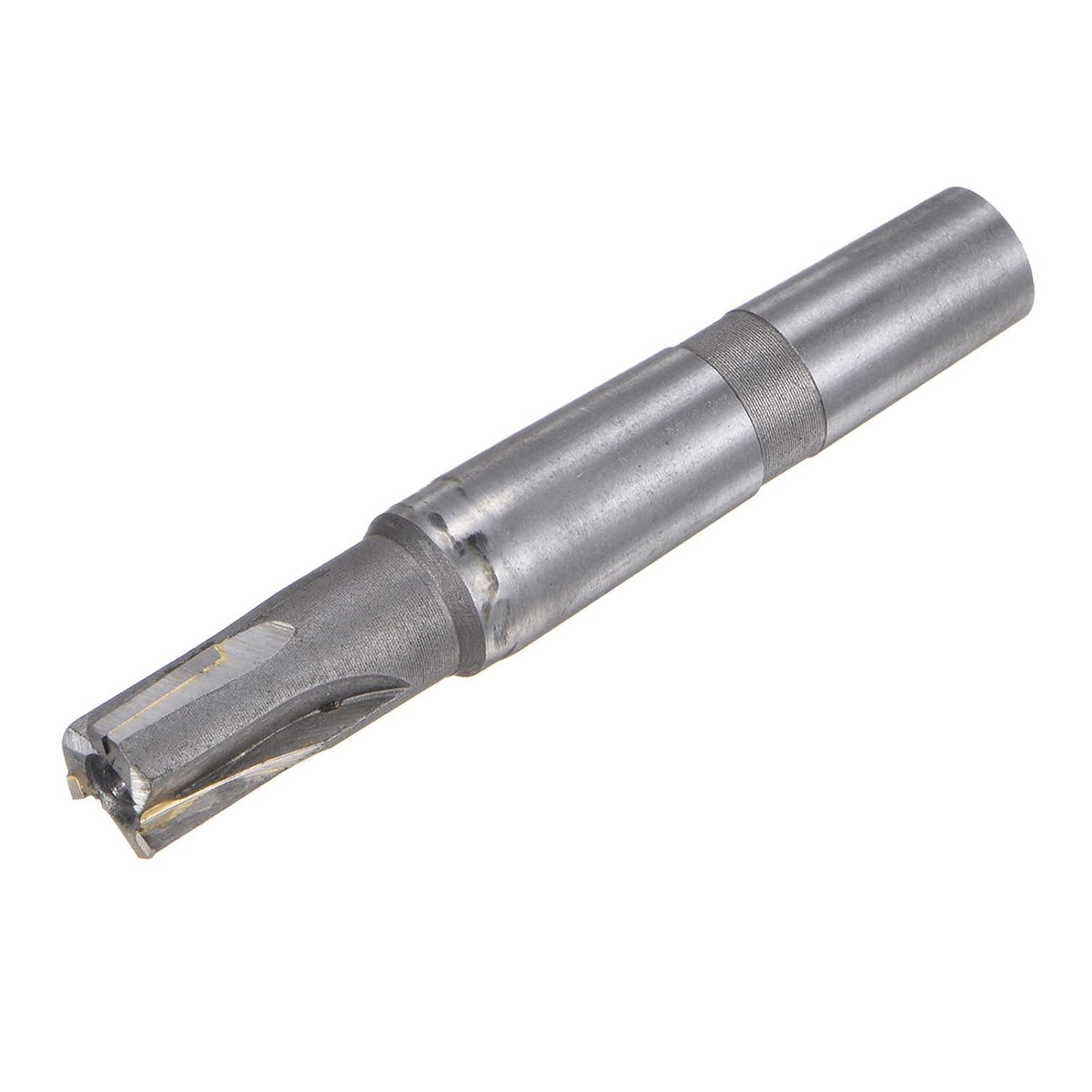

Square Nose End Mill, 15mm Cutting Dia C1 Tungsten Carbide Tip 3 Straight Flutes Milling Cutter with MT2 Morse Taper Shank

Key Features

• Square Nose End Mill Cutting diameter 15mm / 0.59"; cutting flute length 15mm / 0.59"; morse taper shank size MT2; overall length 105mm / 4.13"; number of flutes 3 flutes.
• Carbide Tip C1 (YG8/K30) carbide tip end mill has high hardness, good toughness, wear resistance, high temperature resistance and anti-bonding, better than C2 (YG6/K20) tungsten carbide. Carbide material with good milling and cutting performance.
• Wide Applications Suitable for cutting alloy steel, stainless steel, cast iron, carbon steel, aluminum, copper, plastic, etc.. For shallow groove machining, side milling and finishing.
• Features Square end cut, 3-flute design. Straight flute tool allows chips to collect in the flutes when cutting, well suited for most applications in shallow cuts. Features just the base substrate without any coatings, good for general purpose cutting in wide ranges of applications.
• Tips Use on CNC machining centers, milling machines, drilling machine, lathes and other high-speed CNC machine tools. The longer the length of the tool clamped by the chuck, the better. Select an appropriate feed rate and cutting speed.

Product Description

Specifications

Cutting Diameter: 15mm / 0.59"Cutting Flute Length: 15mm / 0.59"Overall Length: 105mm / 4.13"Morse Taper Shank Size: MT2Tip Material: Tungsten Carbide (YG8/C1/K30)Shank Material: High Speed Steel (HSS)Number of Flutes: 3 FlutesEnd Cut Type: Square End

Package Content

1pcs x Square Nose End Mill

Descriptions

C1 (YG8/K30) carbide tip end mill has high hardness, good toughness, wear resistance, high temperature resistance and anti-bonding, better than C2 (YG6/K20) carbide. Carbide material with good milling and cutting performance.Suitable for cutting alloy steel, stainless steel, cast iron, carbon steel, aluminum, copper, plastic, etc.. For shallow groove machining, side milling and finishing. Use on CNC machining centers, milling machines, drilling machine, lathes and other high-speed CNC machine tools.Features square end cut, 3-flute design. Straight flute tool allows chips to collect in the flutes when cutting, well suited for most applications in shallow cuts. Features just the base substrate without any coatings, good for general purpose cutting in wide ranges of applications.The longer the length of the tool clamped by the chuck, the better. If the clamping length is shorter, you need to lower the feed rate and cutting speed to reduce vibration and extend the tool life.Tips: Combined with the material to be processed, select an appropriate feed rate and cutting speed to improve the tool life and obtain better processing accuracy and performance.
