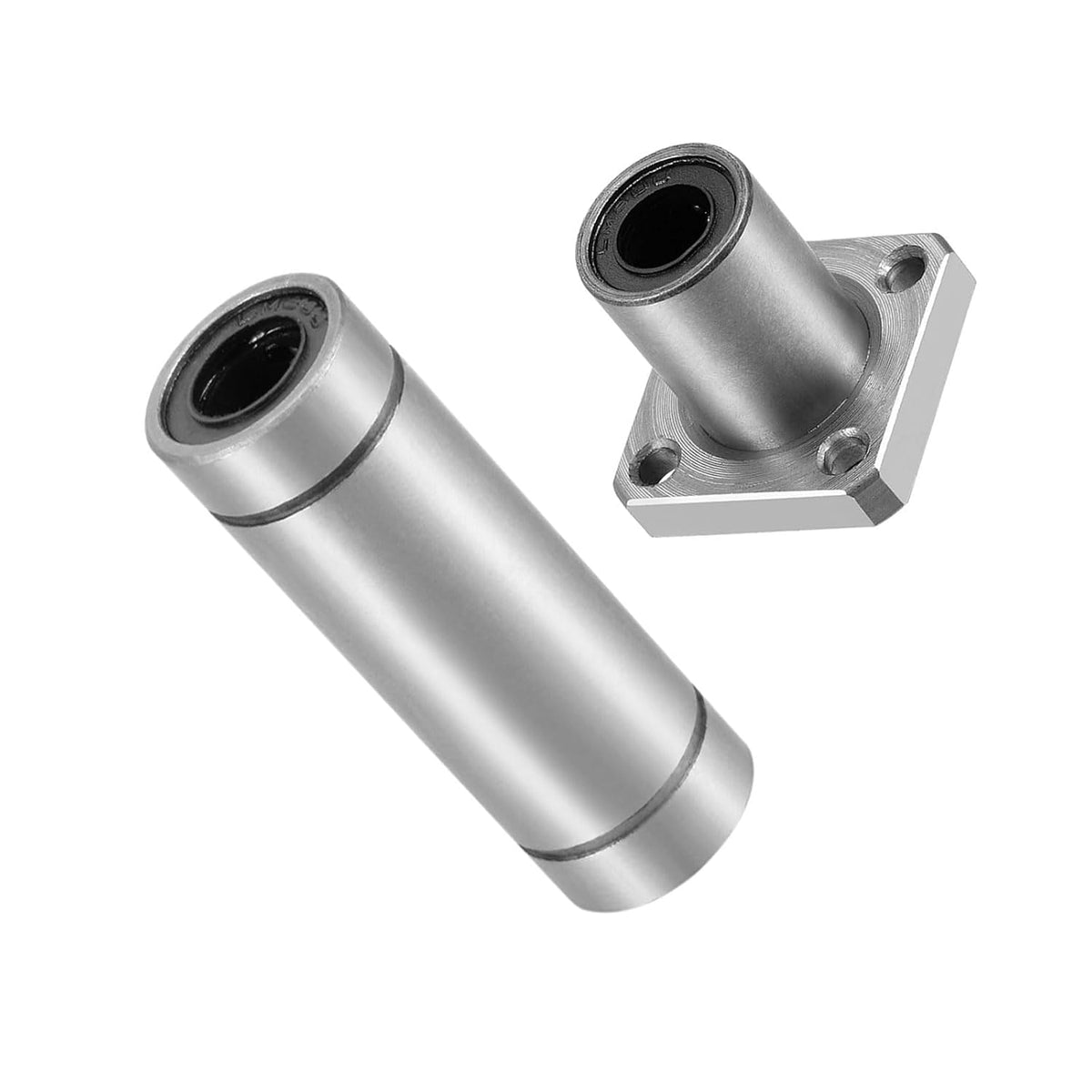

Square Flange Linear Ball Bearings 8mm Bore Dia 15mm OD 24mm L 2pcs, Extra Long Linear Ball Bearings 8mm Bore Dia 15mm OD 45mm L 2pcs

Key Features

• Features Model LM8UU (Nominal Shaft Diameter (dr) 8mm, Outer Diameter (D) 15mm, Total Length (L) 45mm); Model LMK8UU (Nominal Shaft Diameter (dr) 8mm, Outer Diameter (D) 15mm, Total Length (L) 24mm)
• Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
• Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
• Smooth moving, low friction, high rigidity and long working life
• Suitable for kinds of electronic equipment/guide bar.

Product Description

Specifications

LMK8UU Square Flange Linear Ball Bearings:Nominal Shaft Diameter (dr): 8mmOuter Diameter: 15mmTotal Length (L): 24mmMounting Hole Dia.: 3.3 x 6mm / 0.13 x 0.24inch (d1*d2);Pitch Circle Dia. (PCD): 24mm / 0.94inch;Flange Size: 25 x 25 x 5mm / 0.98 x 0.98 x 0.2inch (L*W*H)LM8UU Extra Long Linear Ball BearingsNominal Shaft Diameter (dr): 8mmOuter Diameter: 15mmTotal Length (L): 45mm

Package Content

2 x LMK8UU Square Flange Linear Ball Bearings2 x LM8UU Extra Long Linear Ball Bearings

Description

Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.It is great for 3D printer, CNC, and other applications.
