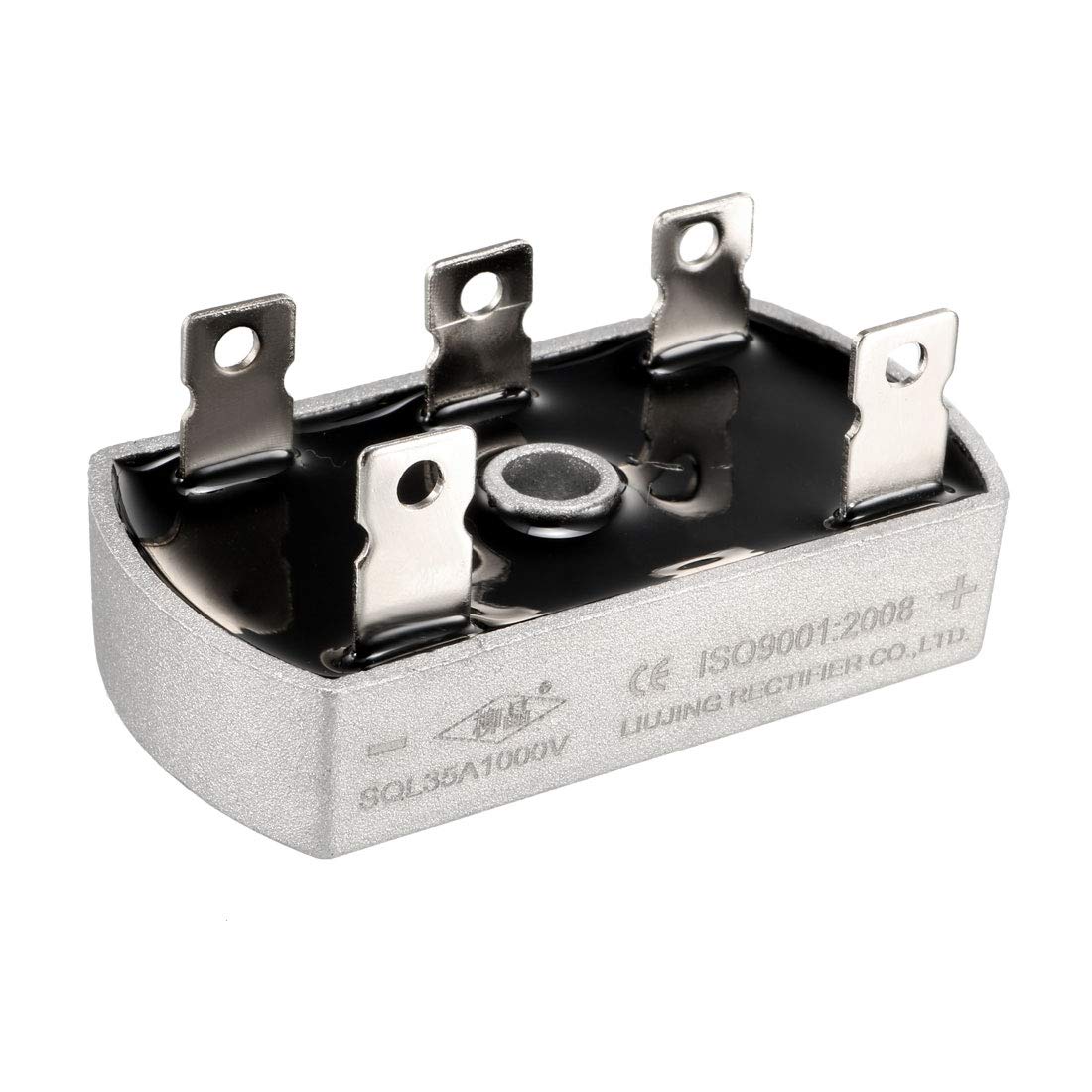

SQL 35A 1000V Three Phase Bridge Rectifier Half-Wave Gray

Key Features

• Model SQL35A1000V ; Output Current(DC)35A ;
• Repetitive Peak Reverse Voltage(AC)1000V ; PhaseThree Phase
• Fixing Holes Diameter 7.4mm/ 0.29";
• Body Size60 x 32 x 26.3mm / 2.36" x 1.26" x 1.04" (L*W*H)
• Great for printed circuit board to used.

Product Description

Description

This Bridge Rectifier features single phase, half wave, low power loss, low reverse leakage current, electrically isolated metal case for maximum heat dissipation, through hole mounting type.Great for printed circuit board to used.

Specifications

Product Name:Bridge RectifierModel: SQL35A1000V Output Current(DC):35A(Max)Leakage Current :7mARepetitive Peak Reverse Voltage(AC):1000VPhase:Three PhaseTerminals : 5Fixing Holes Diameter :7.4mm/ 0.29"Body Size:60 x 32 x 26.3mm / 2.36" x 1.26" x 1.04" (L*W*H)Material:Resin, MetalColor:Gray, Silver ToneNet Weight: 45g

Package Content

1 x Bridge Rectifier
