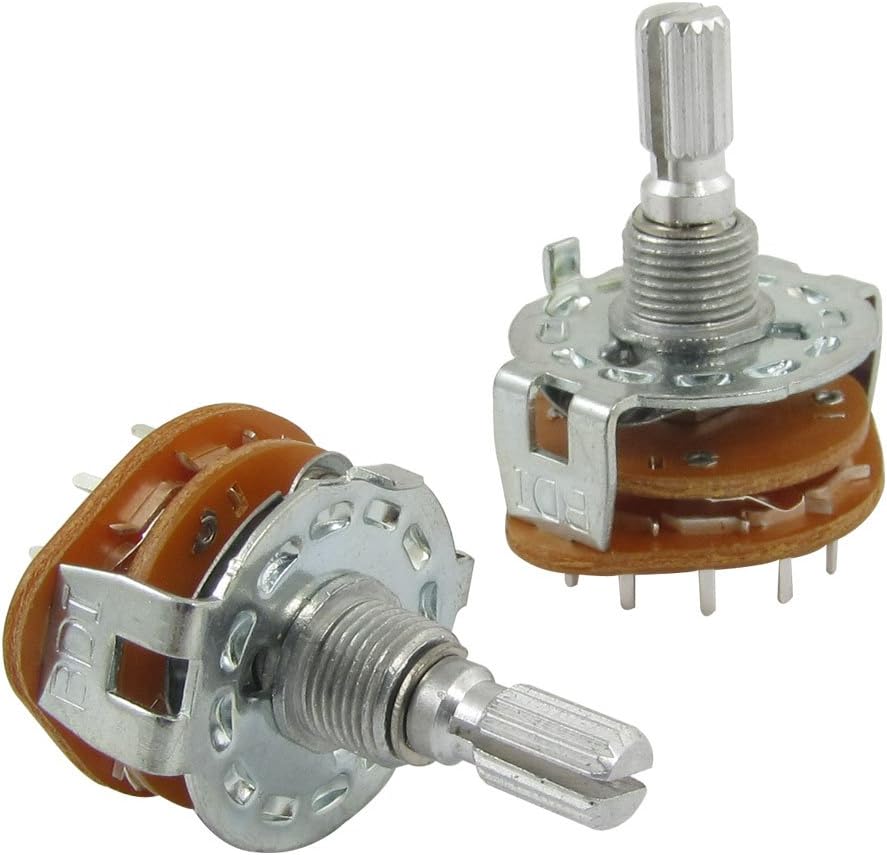

Split Shaft AC125V 0.3A 250V 0.6A 3 Positions Rotary Switch (Bag of 2)

Key Features

• Product Name Rotary Switch;Model No. RS25-3-4;Type 3 Pole 4 Positions
• Rated Voltage & Current AC 125V, 0.3AAC 250V, 0.6A;Click Number 3;Rotational Angle Step Angle 30 Degree
• Contact Resistance Less than 20m ohm;Insulation Resistance More than 100M ohm at DC500V;Withstand Voltage For 1 minute at 500V
• Shaft Diameter 6mm / 0.236";Threaded Diameter 8.7mm / 0.34";Overall Size(Approx.) 31 x 25 x 36mm / 1.2" x 1.0" x 1.4"(L*W*H)
• Net Weight 24g;Package Content 2 Pcs x Rotary Switch

Product Description

3 Pole 4 Positions rotary switch, 6mm diameter knurled split shaft, step angle 30 degree.
