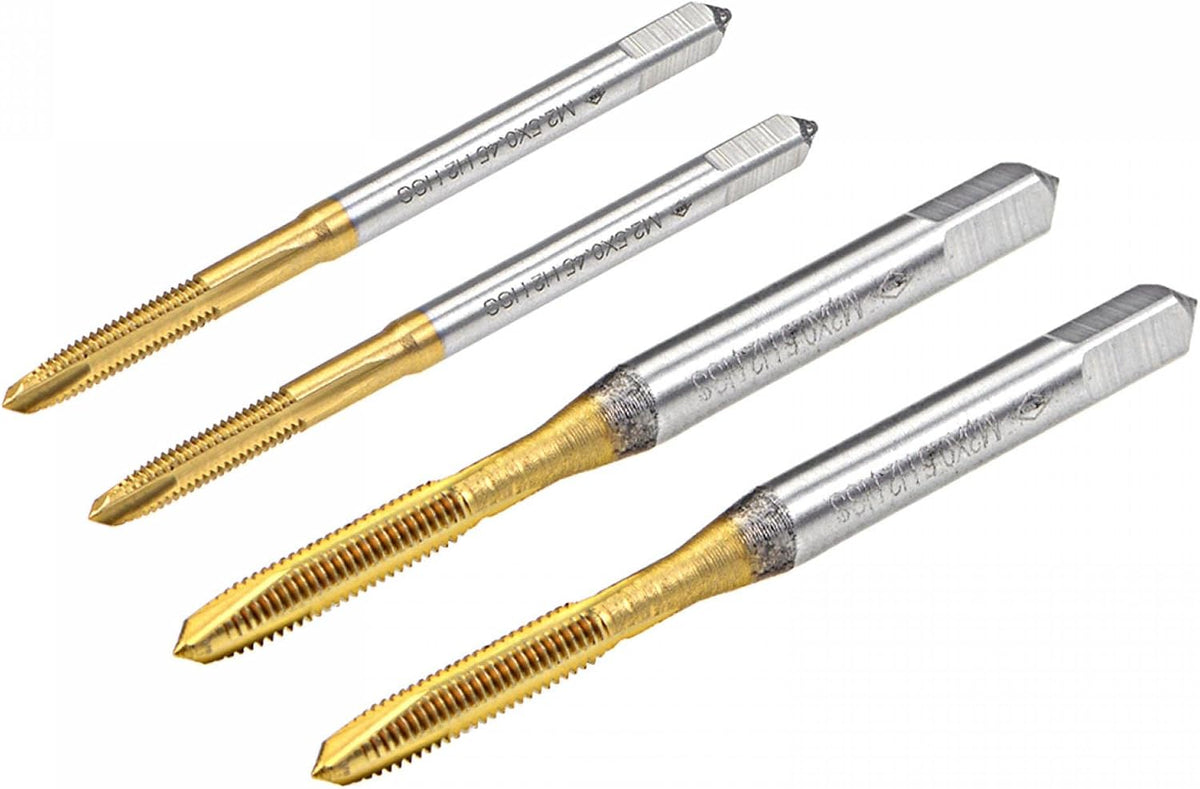

Spiral Point Threading Taps Set M2.5 x 0.45 M3 x 0.5, HSS (High Speed Steel) 6542 Titanium Coated Machine Straight Flute Thread Screw Tap 4pcs

Key Features

• Tap Size Thread size M2.5 x 0.45, M3 x 0.5 (metric). Straight flute spiral point design, downward chip removal. Featured with clear threads, fast tapping with accuracy.
• High Speed Steel Tool Higher hardness and toughness, better wear resistance, suitable for most general purpose applications. Titanium coating improve wear resistance, corrosion resistance and rust protection.
• Wide Applications Suitable for processing through-hole threads. Can be used for drilling and tapping stainless steel, aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics.
• Easy to Use Used on drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. Add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.
• Tips Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Recommended feed rate General steel 6-15m/min; harder steel 5-10m/min; stainless steel 2-7m/min; cast iron 8-10m/min.

Product Description

Specifications

Thread Size: M2.5 x 0.45, M3 x 0.5Thread Length: 12mm / 0.47", 15mm / 0.59"Square End Size: 2.4mm / 0.09", 3.1mm / 0.12"Overall Length: 45mm / 1.77", 50mm / 1.97"Thread Tolerance Grade: H2Material: HSS (High Speed Steel 6542)Finish: Titanium CoatedCutting Direction: Right Hand

Package Content

2pcs x M2.5 Spiral Point Thread Tap, 2pcs x M3 Spiral Point Thread Tap

Descriptions

Straight flute spiral point design, downward chip removal. Features clear threads, fast tapping with accuracy.High speed steel tool is with higher hardness and toughness, better wear resistance, suitable for most general purpose applications. Titanium coating improve wear resistance, corrosion resistance, rust protection.Suitable for processing through-hole threads. Can be used for drilling and tapping stainless steel, aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc..Used on drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. Add coolant when tapping and apply anti-rust oil for maintenance after use to prolong the service life.Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Recommended feed rate: General steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.

Specifications
