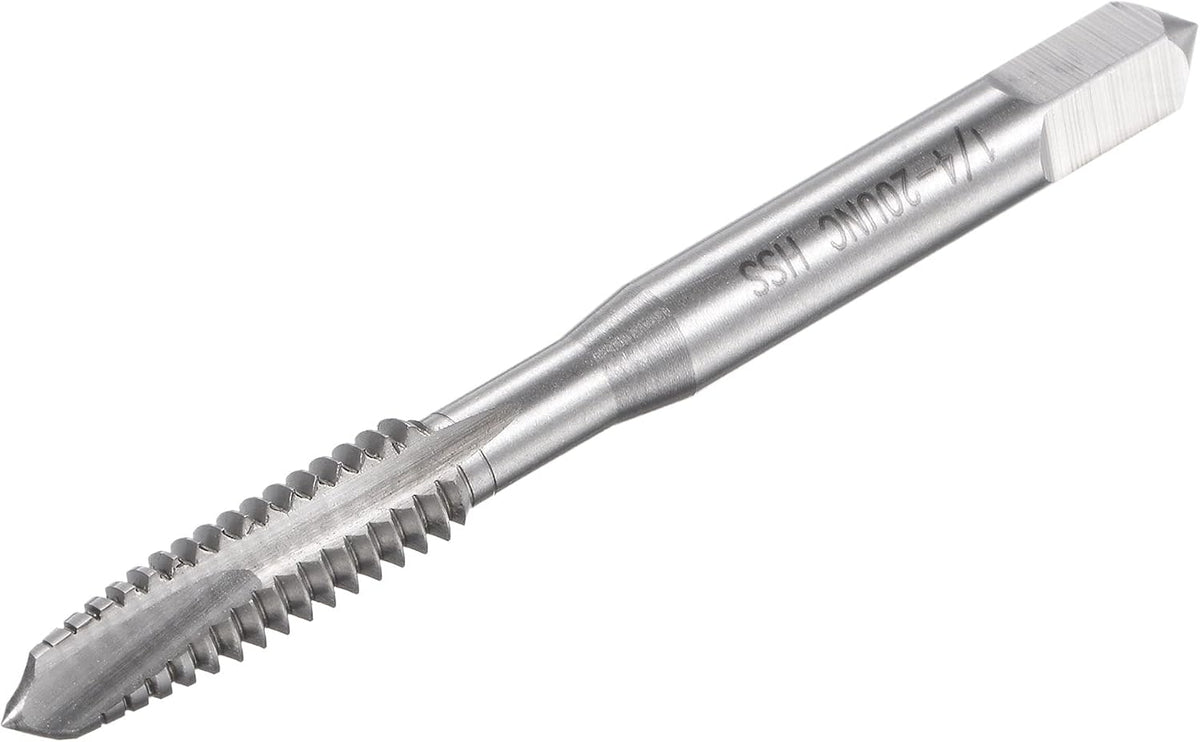

Spiral Point Threading Tap 1/4-20 UNC, HSS (High Speed Steel) Machine Thread Screw Tap 3 Straight Flutes Uncoated Tapping Tool H2 Tolerance

Key Features

• Specifications 1/4-20 UNC thread, H2 thread tolerance grade, right hand thread cutting, fast tapping with accuracy. Straight flutes spiral point taps provide downward chip removal.
• Material and Finish High speed steel tool is with high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Suitable for general purpose thread tapping.
• Applications Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.
• How to Use Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps.
• Tips Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping.

Product Description

Specifications

Thread Size: 1/4-20 UNCThread Length: 23mm / 0.91"Total Length: 68mm / 2.68"Square End Size: 4.5mm x 4.5mm / 0.18" x 0.18"Thread Tolerance Grade: H2Material: HSS (High Speed Steel)Finish: UncoatedCutting Direction: Right HandNumbers of Flutes: 3 Flutes

Package Content

1 x Spiral Point Threading Tap

Descriptions

1. Spiral point taps features right hand thread cutting, clear threads, fast tapping with accuracy. Straight flutes provide downward chip removal.2. High speed steel tool is with high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Suitable for general purpose thread tapping.3. Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc..4. Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps.5. Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping.
