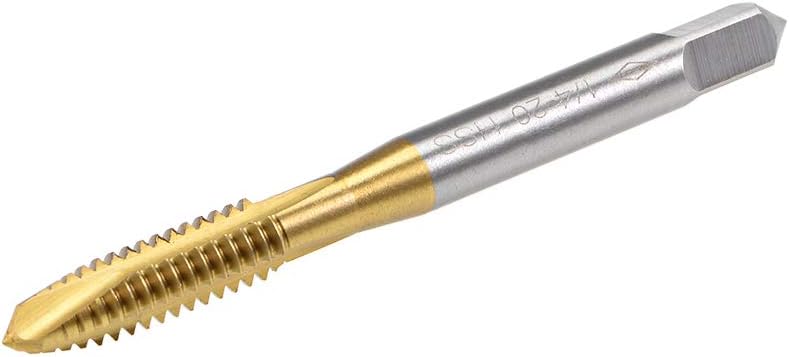

Spiral Point Plug Threading Tap UNC 1/4-20 Thread, Ground Threads H2 3 Flutes, High Speed Steel HSS 6542, Titanium Coated, Round Shank with Square End

Key Features

• Specifications Thread size UNC 1/4-20; thread tolerance H2; thread length 23mm / 0.9"; plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide downward chip removal
• Material & Finish High-speed steel tool is great for general purpose applications, offering high hardness and toughness. Titanium coating for improving wear and fusion resistance, long service life
• Applications Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.
• How to Use Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps
• Warm Tips Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping

Product Description

Specifications

Thread size: UNC 1/4-20; thread tolerance: H2; thread length: 23mm / 0.9"; plug chamfer and right hand thread cutting. 3 straight flutes are ground to provide downward chip removal Material & Finish: High-speed steel tool is great for general purpose applications, offering high hardness and toughness. Titanium coating for improving wear and fusion resistance, long service life Applications: Great for through-hole threads. Can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.

How to Use

Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps Warm Tips: Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping ›
