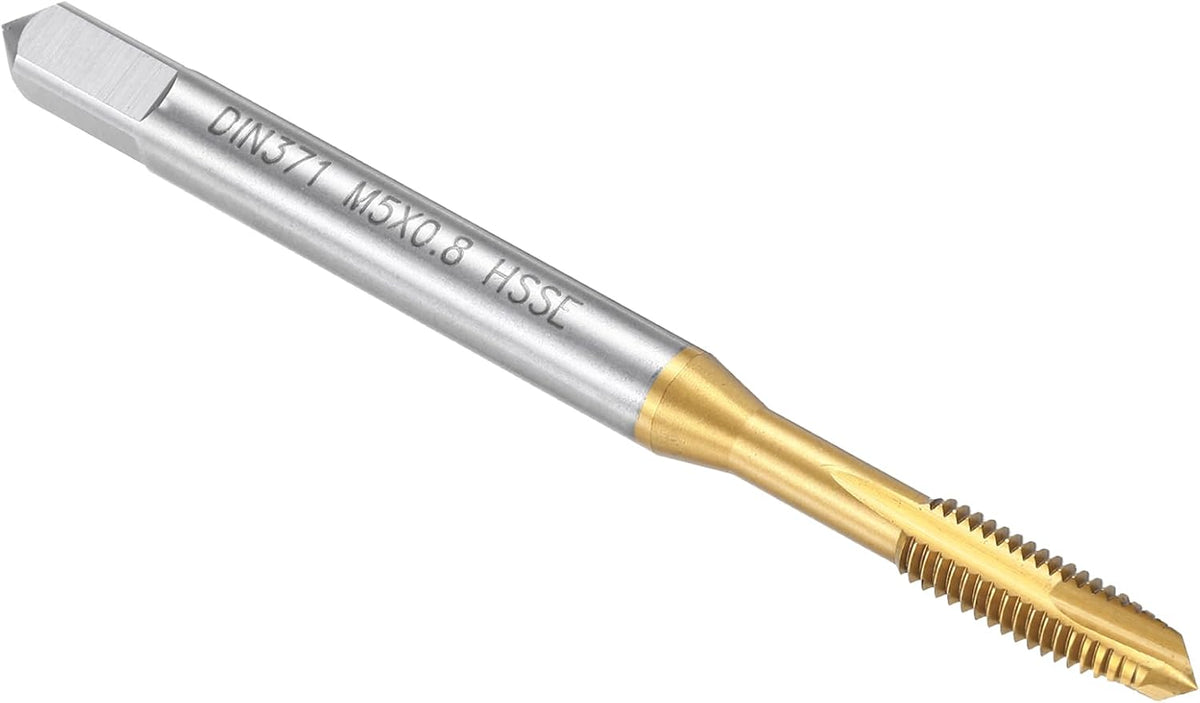

Spiral Point Plug Threading Tap M5 x 0.8 Thread, Ground Threads H2, M35 High Speed Steel Cobalt, Titanium Nitride Coating, Metric Screw Taps Tapping Bit for Thread

Key Features

• Spiral Point Tap Thread size M5 x 0.8; thread tolerance H2; thread length 17mm / 0.67"; plug chamfer and right hand thread cutting. Straight flutes are ground to provide downward chip removal, with clear threads and sharp cutting edges.
• Material & Finish M35 high speed steel cobalt metric taps run at high speeds and generate threads quickly and efficiently, offering high hardness , wear resistance, and good toughness. Titanium nitride coating for improving wear resistance, hardness, heat resistance, lubricity.
• Applications Thread taps are great for through-hole threads. Can be used for drilling and tapping stainless steel, aluminum, alloy steel, ordinary steel, cast iron, non-ferrous metals, hard plastics, etc. Flutes on the screw tap help to remove chips and debris from the hole.
• How to Use Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. The point of the tap helps guide it into the hole and reduces the torque required to turn it.
• Warm Tips Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Micro taps (such as M1-M3.5) are mainly used for clocks, watches, low-hardness woods, and soft metals.

Product Description

Spiral Point Tap: Thread size: M5 x 0.8; thread tolerance: H2; thread length: 17mm / 0.67"; plug chamfer and right hand thread cutting. Straight flutes are ground to provide downward chip removal, with clear threads and sharp cutting edges. Material & Finish: M35 high speed steel cobalt metric taps run at high speeds and generate threads quickly and efficiently, offering high hardness , wear resistance, and good toughness. Titanium nitride coating for improving wear resistance, hardness, heat resistance, lubricity. Applications: Thread taps are great for through-hole threads. Can be used for drilling and tapping stainless steel, aluminum, alloy steel, ordinary steel, cast iron, non-ferrous metals, hard plastics, etc. Flutes on the screw tap help to remove chips and debris from the hole.

How to Use

Suitable for drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. The point of the tap helps guide it into the hole and reduces the torque required to turn it. Warm Tips: Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. Micro taps (such as M1-M3.5) are mainly used for clocks, watches, low-hardness woods, and soft metals. ›

Specifications
