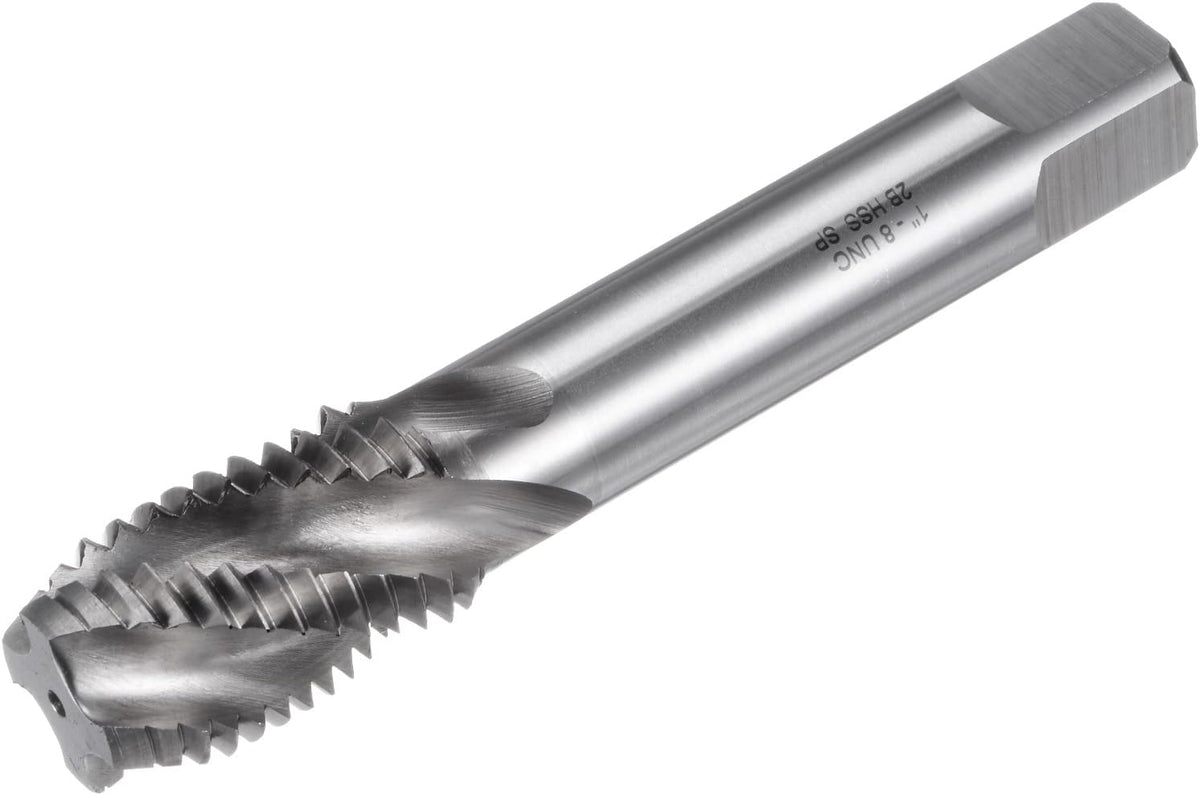

Spiral Flute Taps, 1-8 UNC 2B High Speed Steel (HSS) Uncoated Machine Thread Milling Threading Screw Tap 4 Flutes Tapping Tool

Key Features

• Spiral Flute Taps Thread Size 1-8 UNC; Tolerance Grade 2B; Square End Size 16mm / 0.63". Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
• High-speed steel tool High speed steel tool has high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Fit for most general purpose thread tapping.
• Wide Applications Suitable for processing blind holes and sticky materials. For drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics. Recommended feed rate general steel 6-15m/min; harder steel 5-10m/min; stainless steel 2-7m/min; cast iron 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
• Easy to Use Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection.
• Tips Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps are mainly used in clocks and watches, as well as for making holes in wood and soft metals with lower hardness.

Product Description

Specifications

Thread Size: 1-8 UNCThread Length: 45mm / 1.77"Square End Size: 16mm / 0.63"Total Length: 135mm / 5.3"Thread Tolerance Grade: 2BMaterial: High Speed Steel (HSS)Finish: UncoatedNumbers of Flutes: 4 FlutesCutting Direction: Right Hand

Package Content

1pcs x Spiral Flute Thread Tap

Descriptions

Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy. High speed steel tool has high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Fit for most general purpose thread tapping.Suitable for processing holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.. Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to breakUsed on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force. Tips: Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps are mainly used in clocks and watches, as well as for making holes in wood and soft metals with lower hardness.
