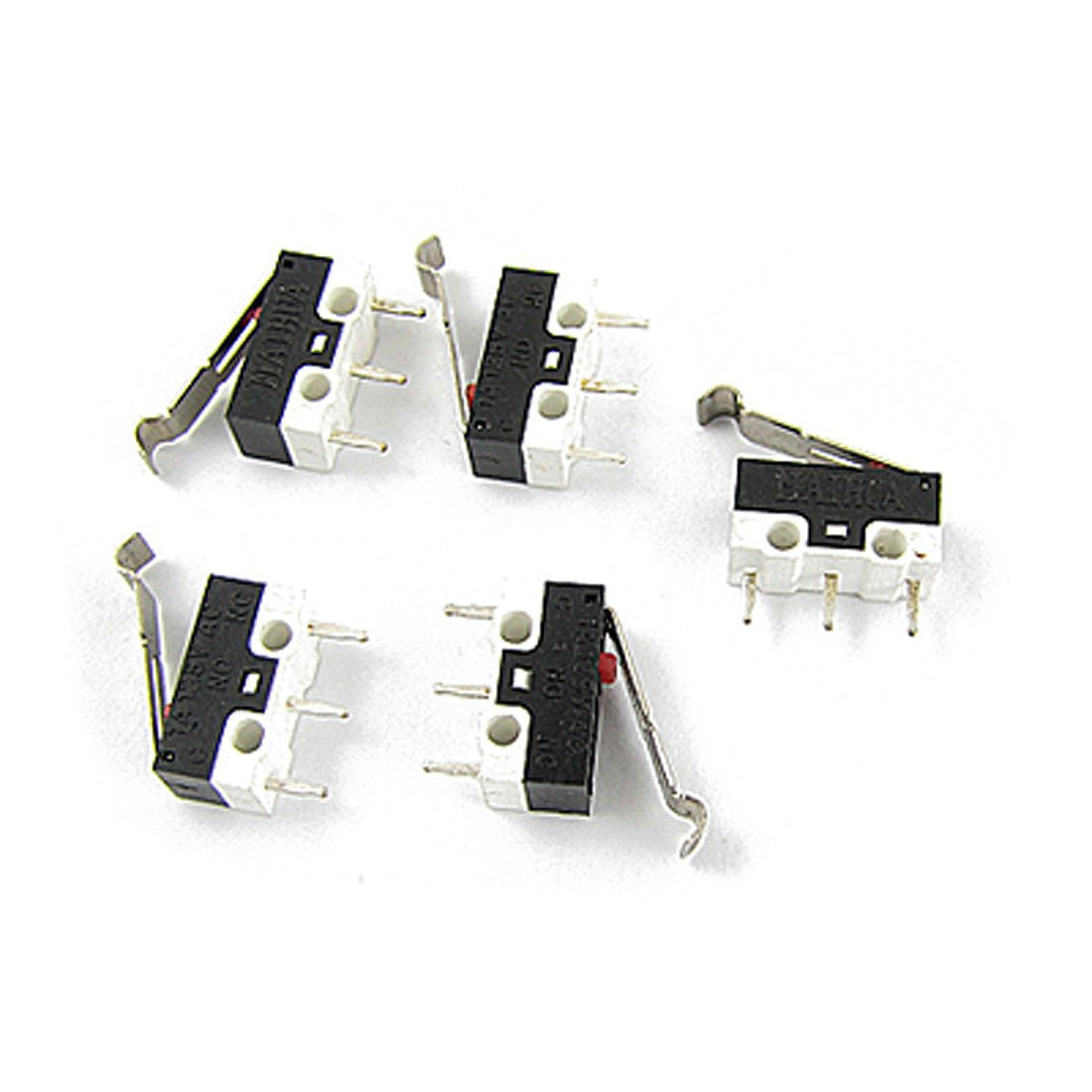

SPDT Subminiature Micro Lever Switch, AC, 125V, 1 Amp

Key Features

• Product name Micro switch; material plastic, metal; model wd-011
• Rated load AC 1A 125V;contact resistance 0.02 Ohm; Insulating resistance 100Mohm;
• Operating force 60-100;withstand Voltage AC 250v(50hz)/ life 100000 time
• Temperature range -40-70â°c;lever Size (approx.) 15 x 4 mm / 5/8" x 1/8" (L * W );Size (approx.) 13 x 5 x 10 mm / 1/2" x 7/32" x 3/8" (L * W *t )
• Color black, white, red; weight 3G;package content 5 x Micro switch

Product Description

Note

us user need to buy another voltage transformer, here is not included. Micro switch widely used in the fields of electronic product, computer mouse, instrument and meter, household appliance and more. 3 pin Type with lever actuator and red push button.
