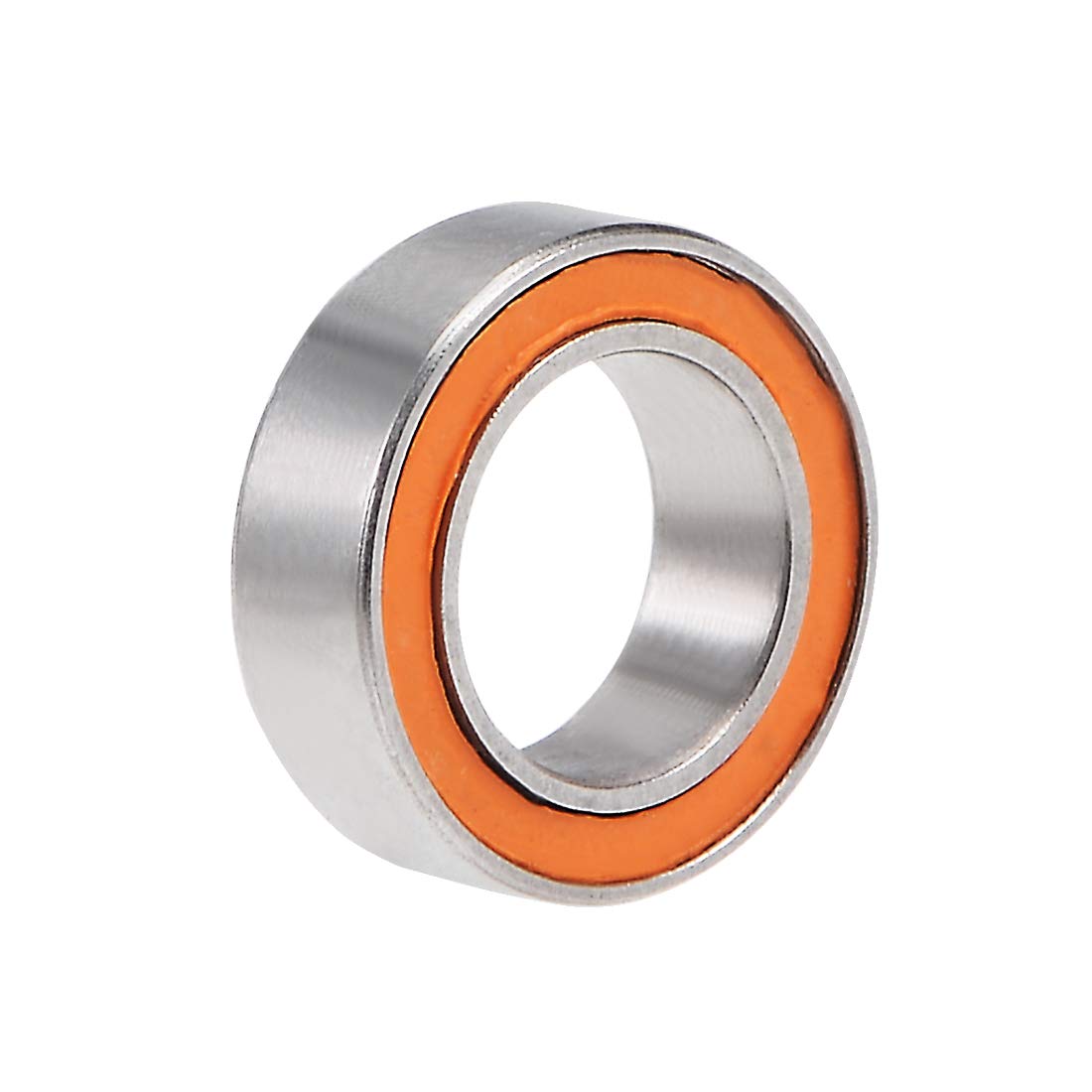

SMR85C-2OS Hybrid Ceramic Ball Bearing 5x8x2.5mm ABEC-7 Stainless Steel Bearings

Key Features

• SMR85C-2OS (I.D.=5mm, O.D.=8mm, Thickness=2.5mm)
• smr85c-2os bearings are sealed on BOTH SIDES to keep lubricant in
• Stainless steel races for durability and corrosion resistance
• ABEC Tolerance 7 (P4), Z1 Noise Level for most general use
• Static load rating of 90 newtons and dynamic load rating of 218 newtons

Product Description

NOTE：Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Single-row, pre-lubricated, high accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.The limit speed of hybrid ceramic ball bearing can reach more than 1.3 times of chrome steel bearing of the same model.Hybrid bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.Suitable for work in high temperature environment and would not harm by magnetism or electricity.Suitable for all kinds of industrial equipment, micro motor, engine and fishing reel.Selection Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Specification:Model:SMR85C-2OSSeal Type: Double SealedInner Race/Outer Race Material: 440C Stainless SteelBall Material: CeramicInner Diameter (d): 5mmOuter Diameter (D): 8mmThickness (B): 2.5mmDynamic Load Rating (Cr): 0.218kNStatic Load Rating (Cor): 0.09kNAccuracy Class: P4 (ABEC-7)Noise Level: Z1Number of Pack: 1 Pcs
