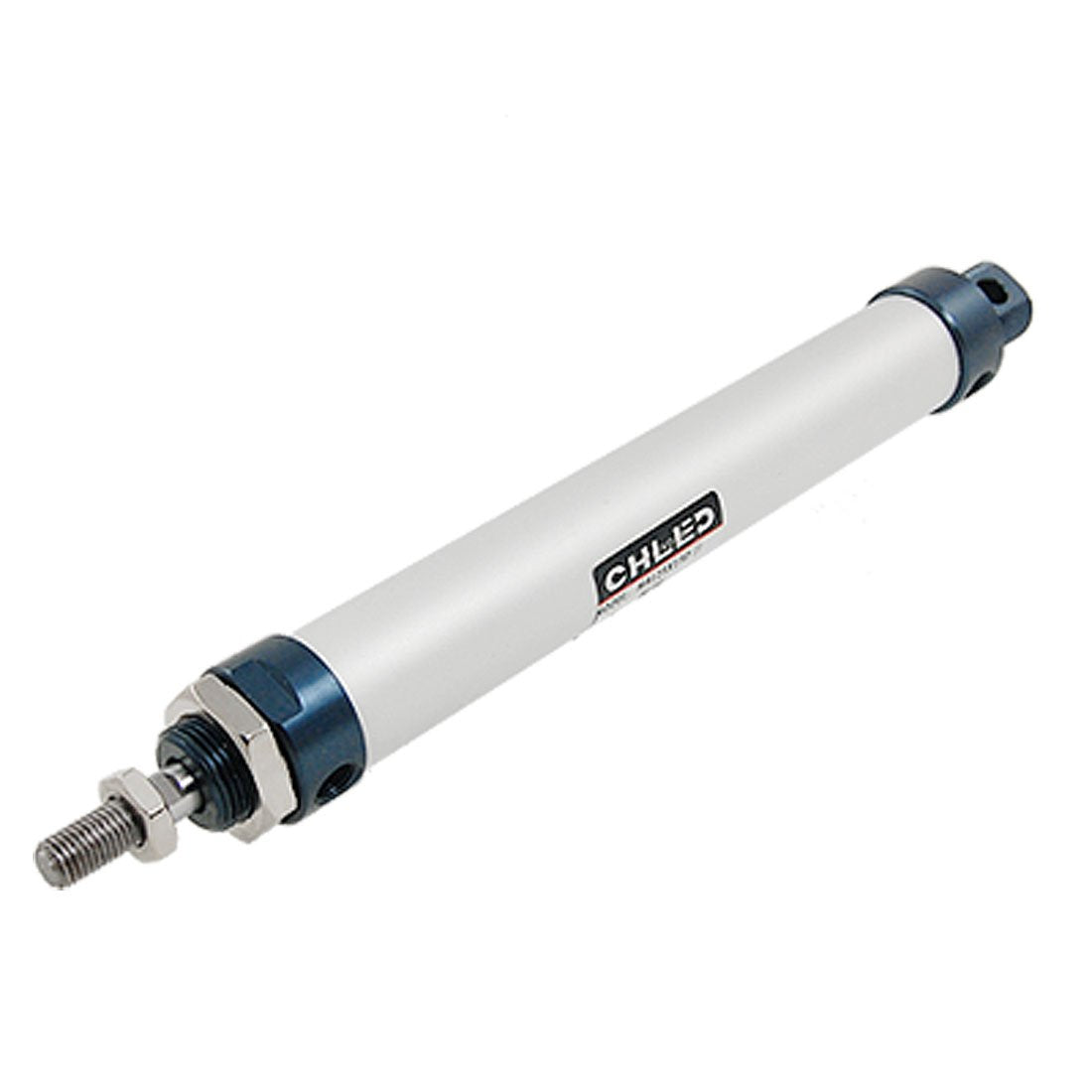

Small Air Pneumatic Cylinder MAL 25mm Bore 150mm Stroke

Key Features

• Product Name Air Cylinder;Model MAL 25x150;Rod Type Single Rod
• Action Type Double Acting;Fluid Air;Bore 25mm
• Stroke 150mm;Screw Hole Dia 8.5mm / 0.33'';Rod Thread Dia 10mm / 0.39"
• Max. Press 0.7MPa;Overall Size (Approx) 285 x 30mm / 11.2'' x 1.2'' (L*Max. D);Main Material Alloy
• Air cylinders are mainly used in pneumatic and hydraulic systems, such as punching machine, pneumatic and hydraulic system maintenance, etc.

Product Description

MAL series pneumatic air cylinder. Single rod, double acting, 150mm stroke, 25mm bore. The Air Cylinder is a mechanical device which utilizes the power of compressed gas to produce a force in a reciprocating linear motion.

Specifications
