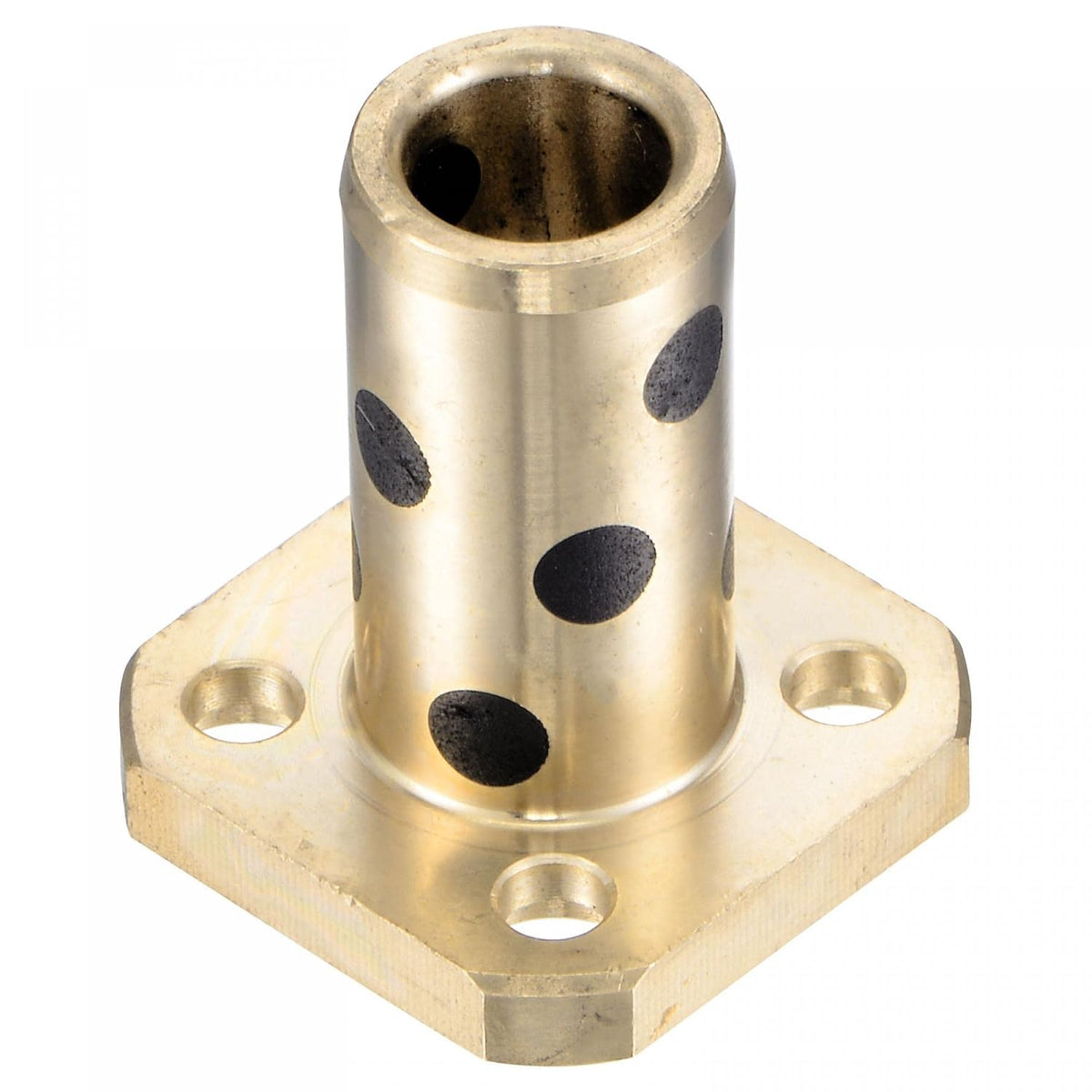

Sleeve Bearings 8mm Bore 12mm OD 30mm Length Square Flanged Wrapped Oilless Bushings

Key Features

• Size - Bore Diameter 8mm, Outside Diameter 12mm, Total Length 30mm, Flange Size 22mm x 22mm, Flange Thickness 4mm
• Material - Made of cast brass and fitted with graphite which is self-lubricating and does not require oiling. Has good load capacity and wear resistance.
• Function - Also known as plain bearings or bushings. They are mainly used to guide or reduce friction in linear applications.
• Application - Used in various industrial equipment such as electrical equipment, household equipment, printing machines and machine tools.
• Notice - Pressed in with a vise or punching machine. They can be held in place with adhesives or locking screws.

Product Description

About this item Size - Bore Diameter: 8mm, Outside Diameter: 12mm, Total Length: 30mm, Flange Size: 22mm x 22mm, Flange Thickness: 4mm Material - Made of cast brass and fitted with graphite which is self-lubricating and does not require oiling. Has good load capacity and wear resistance. Function - Also known as plain bearings or bushings. They are mainly used to guide or reduce friction in linear applications. Application - Used in various industrial equipment such as electrical equipment, household equipment, printing machines and machine tools. Notice - Pressed in with a vise or punching machine. They can be held in place with adhesives or locking screws. ›
