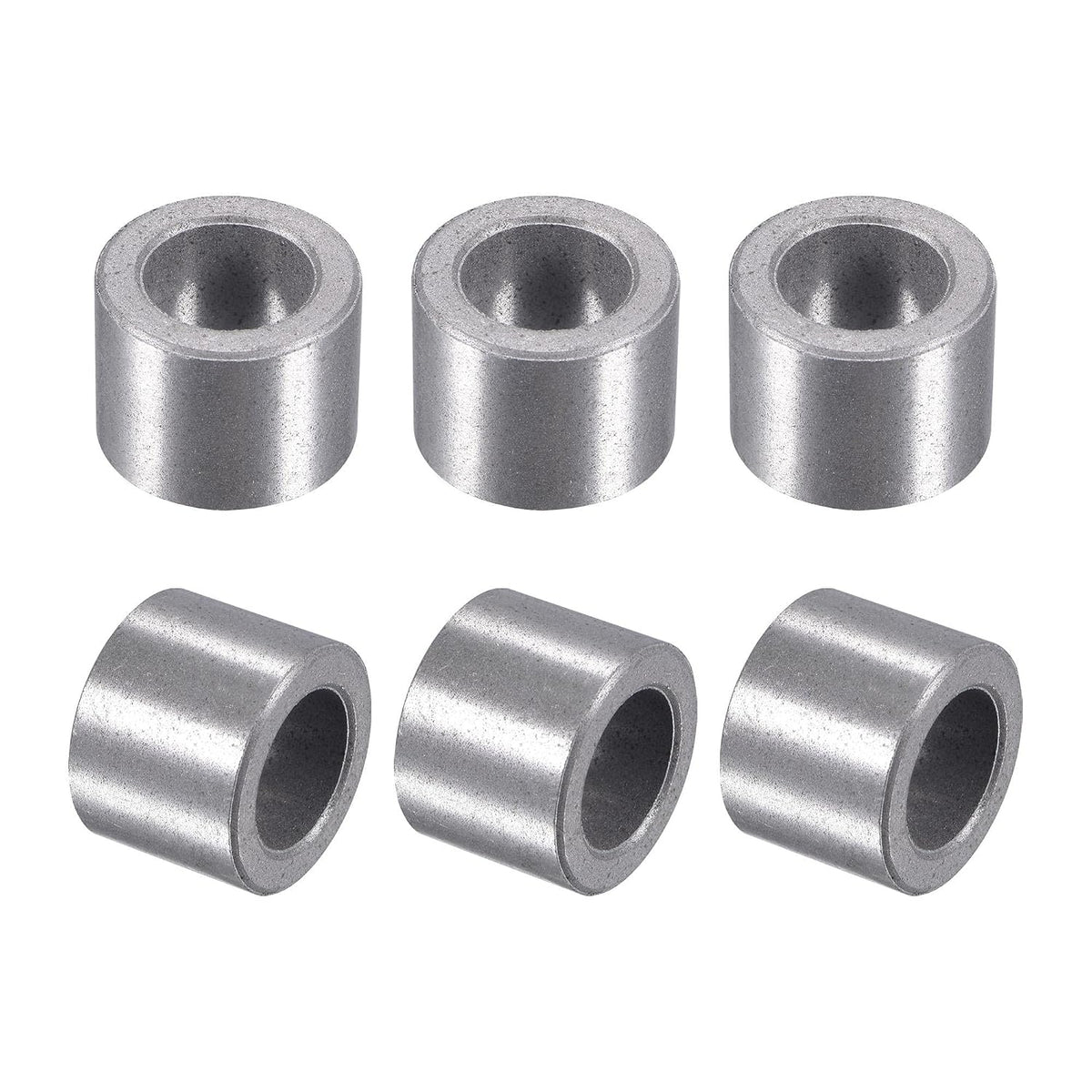

Sleeve Bearings 14mm Bore 22mm OD 17mm Length Sintered Iron Self-Lubricating Bushings 6pcs

Key Features

• Size - Bore Diameter 14mm, Outside Diameter 22mm, Length 17mm
• Material - Sintered Iron. They are self-lubricating, making them maintenance-free. High wear-resistant and corrosion-resistant.
• Function - The bushings can be used for different purposes, such as positioning, wear and vibration reduction, or to isolate the shaft from special media to increase the life of the shaft.
• Application - Iron bushings are most for applications with high load and lower speeds. Sleeve bearings are used in a vast variety of industrial equipment.
• More - They also can be used for reducing bore diameter or replacing worn-out original bushings on wheels.

Product Description

Specifications

Material: Sintered IronBore Diameter: 14mmOuter Diameter: 22mmTotal Length: 17mmPackage Contents:6 x Sleeve Bearings

Description

Sleeve bearings are also known as plain bearings or bushings, mostly for guiding or reducing friction in linear applications. Oiled Bearing Sleeves have a small friction coefficient of about 0.12-0.18.They are made of powder-metallurgical metal, which has a large working temperature range from -80 degrees Celsius to 120 degrees Celsius.Bushings provide strong housing for a shaft or fastener. They also help to reduce bores' diameter or to replace worn-out original bushings on wheels.Sintered iron bushings are most suitable for applications with rotating movements and where self-lubricating properties of the material.Suitable for a vast variety of industrial equipment such as electrical equipment, household equipment, printing machinery, and machine tools.
