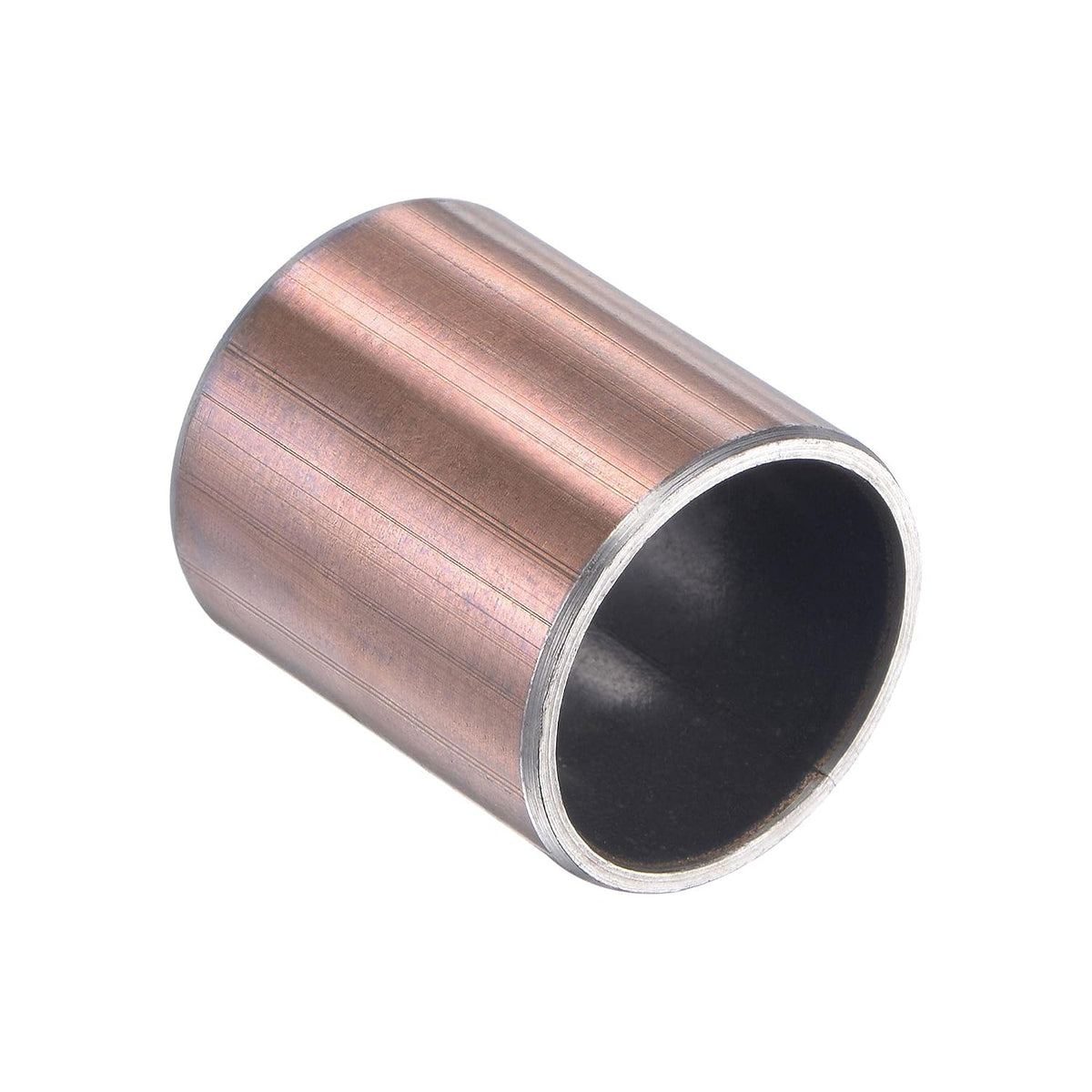

Sleeve Bearing 3/4" Bore x 7/8" OD x 1" Length Plain Bearings Wrapped Oilless Bushings Self-Lubricating for Industry Equipment

Key Features

• Size - Bore Diameter 3/4", Outside Diameter 7/8", Length 1". Good dimensional stability. Thin wall and light weight, suitable for compact spaces.
• Material - Carbon steel base with Bronze Sintered and composite coating. With high mechanical strength and good thermal conductivity, it is suitable for use in a wide range of low and high temperatures.
• Feature - Oilless, maintenance-free, good frictional property, stable low friction coefficient. Featured with good load capacity and wear resistance performance.
• Function - The bushings can be used for different purposes, such as positioning, wear and vibration reduction, isolate the shaft from special media to increase the life of the shaft.
• Application - Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment, agricultural machinery and other industrial equipment.

Product Description

Specification:Material: Steel backing, Sintered Porous Spherical Copper Powder Layer, PTFE Finish: Copper PlatingFriction Factor (Dry Friction): 0.04-0.2Friction Factor (Oil Lubrication): 0.02-0.07Bore Diameter: 3/4"Outside Diameter: 7/8"Length: 1"Package Contents:1 x Sleeve Bearing

Description

Plain Bearings are constructed with steel as a base, sintered porous spherical copper powder layer, rolled with PTFE and Lead compound as inner surface and copper-plated on the outer surface.Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.Solid friction Oilless Bushing can operate during a wide temperature range. Suitable for applications with sliding movements.Oilless Sleeve Bearings are most suitable for places where self-lubricating properties of the material are required.

Note

Spilt Line can not be used for bearing.
