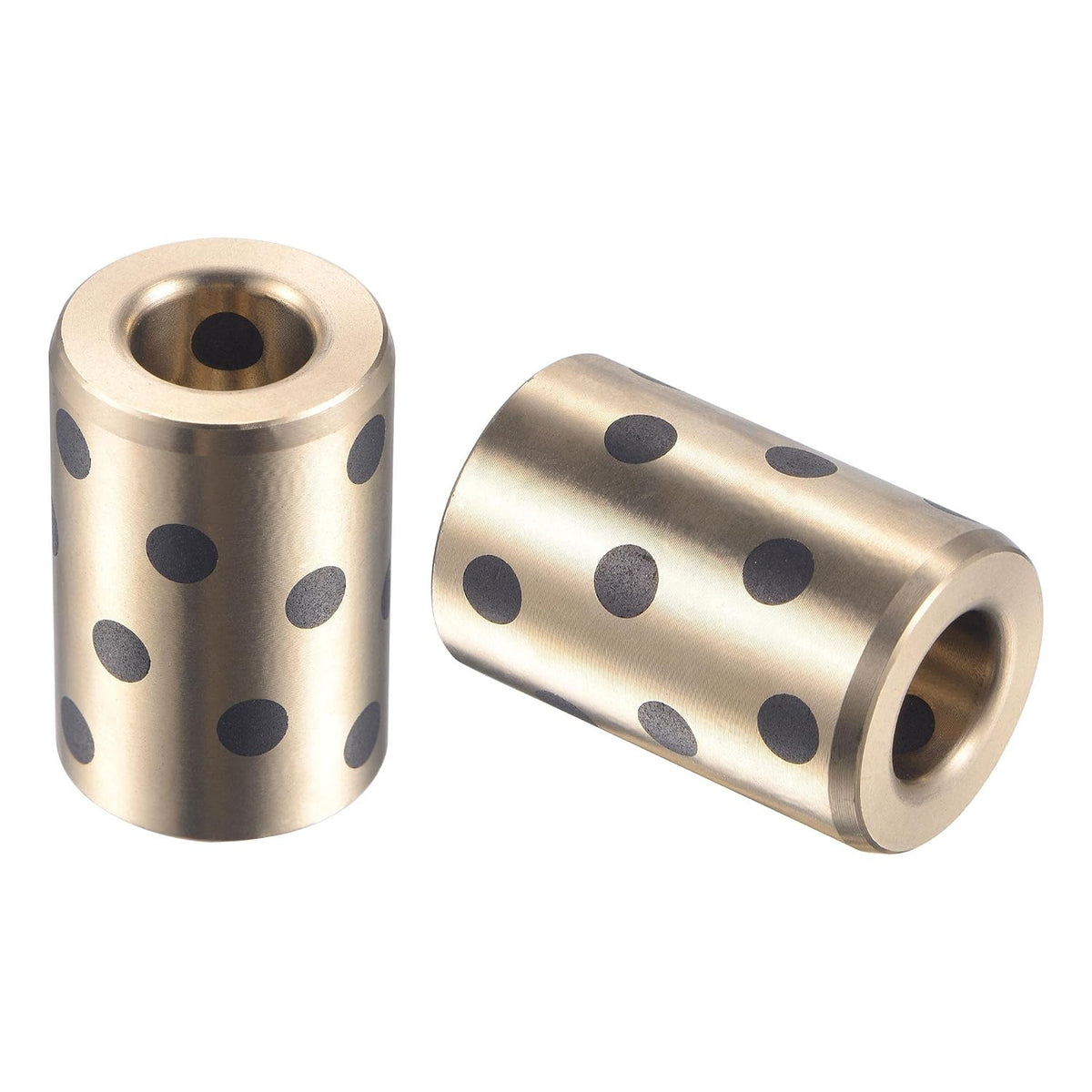

Sleeve Bearing 10mm Bore x 19mm OD x 29mm Length Plain Bearings Wrapped Oilless Bushings 2pcs

Key Features

• Size - Bore Diameter 10mm, Outside Diameter 19mm, Length 29mm
• Material - Made of cast brass and fitted with graphite which is self-lubricating and does not require oiling.
• Feature - Oilless, maintenance-free, good frictional property. Featured with good load capacity and wear resistance performance.
• Function - The bushings can be used for different purposes, such as positioning, wear and vibration reduction, or to isolate the shaft from special media to increase the life of the shaft.
• Application - Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery.

Product Description

Description

Made of cast brass and fitted with graphite, which is self-lubricating and does not require oiling.Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.Solid friction Oilless Bushing can operate during a wide temperature range. Suitable for applications with sliding movements.Oilless Sleeve Bearings are most suitable for places where self-lubricating properties of the material are required.

Note

Spilt Line can not be used for bearing.Specification:Material: ZCuZn25Al6Fe3Mn3+GraphiteBore Diameter: 10mmOutside Diameter: 19mmLength: 29mmFriction Factor: <0.16Ultimate Dynamic Load: 110N/mm2Basic Hardness: 220~290Sliding Speed(Dry): 0.4m/sSliding Speed(Oil): 5m/sPackage Contents:2 x Sleeve Bearings
