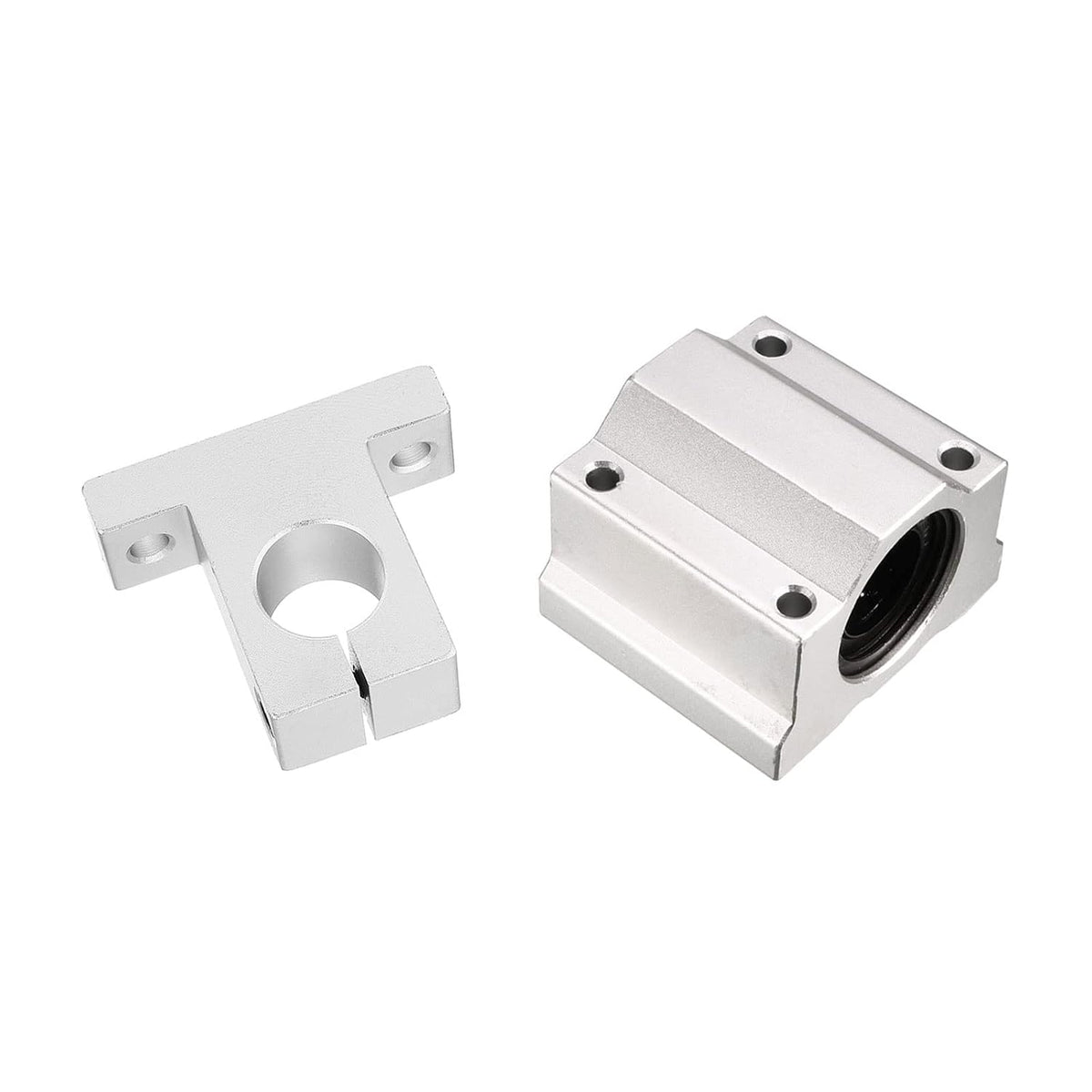

SK25 Aluminum Linear Motion Rail Clamping Guide Support 2pcs, SCS25UU Linear Ball Bearing Slide Block Units

Key Features

• Features Linear Motion Rail Clamping Guide Support Total Size 70 x 24 x 60mm/2.8-inch x 0.94-inch x 2.4-inch(L*W*H); Linear Ball Bearing Slide Block Units Nominal Shaft Diameter (dr) 25mm; Slide Block Size 76 x 67 x 51.5mm (L*W*H); Mounting Hole Distance 54 x 50mm(L*W)
• Compact design with High load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
• Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
• Ball Bearing Application Widely used in home appliances, industrial, and high speed electric motors, construction machinery, pumps, and machinery.
• Low friction resistance can get high precision rotating in the smooth movement.

Product Description

Specifications

Aluminum Linear Motion Rail Clamping Guide SupportTotal Size: 70 x 24 x 60mm/2.8-inch x 0.94-inch x 2.4-inch(L*W*H)Mount Hole Distance: 55mm/2.2-inchMount Hole Dia.: 6.5mm/0.26-inchLinear Ball Bearing Slide Block UnitsNominal Shaft Diameter (dr): 25mmSlide Block Size: 76 x 67 x 51.5mm (L*W*H)Mounting Hole Distance: 54 x 50mm(L*W)

Package Content

2pcs x SK25 Aluminum Linear Motion Rail Clamping Guide Support1pc x SCS25UU Linear Ball Bearing Slide Block Units

Description

Compact design with High load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.Ball Bearing Application: Widely used in home appliances, industrial, and high speed electric motors, construction machinery, pumps, and machinery.Low friction resistance can get high precision rotating in the smooth movement.
