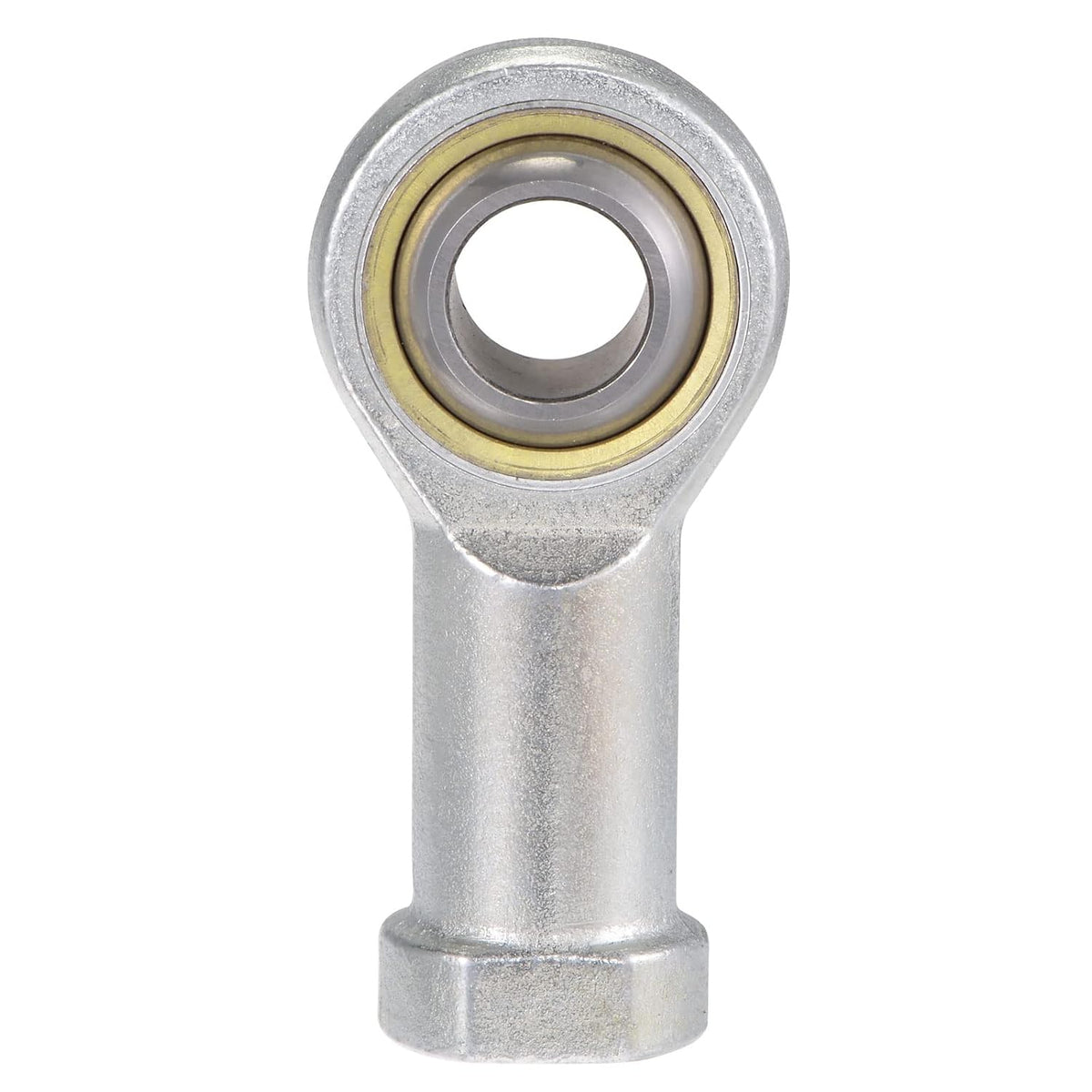

SI18TK PHSA18 Spherical Rod End Bearing 18mm Bore Self-Lubricated Joint Bearing M18x1.5 Left Hand Female Thread Connector

Key Features

• Type 18mm Bore and M18x1.5 Left Hand Female thread rod end. Maximum angular misalignment 15°
• Material The #45 steel spherical rod end body and hardened bearing steel ball joint ensure long service life.
• Application Widely used in engineering hydraulic cylinders, forging machine tools, automation equipment, and so on.
• Capacity 47.5KN Static Load Capacity, 42.5KN Dynamic Load Capacity.
• Features Self-aligning, large load rating, low noise, anti-corrosion, tough and durable. The bearing steel ball and the copper ring are locked and squeezed so that they will not fall off.

Product Description

Rod End Bearings Multiple sizes availableWide application Introduction Rod end bearings are mainly used to support parts that require low concentricity, high working surface pressure, and slow swing and rotation movements.The advantage is that the ball insert permits the rod or bolt passing through it to be misaligned to a limited degree. Application The #45 steel rod end body and hardened bearing steel ball joint ensures long service life.Widely used in engineering hydraulic cylinders, forging machine tools, automation equipment, trucks, lawn tractors, boats, industrial machines, go-karts, and many more applications.

Specifications
