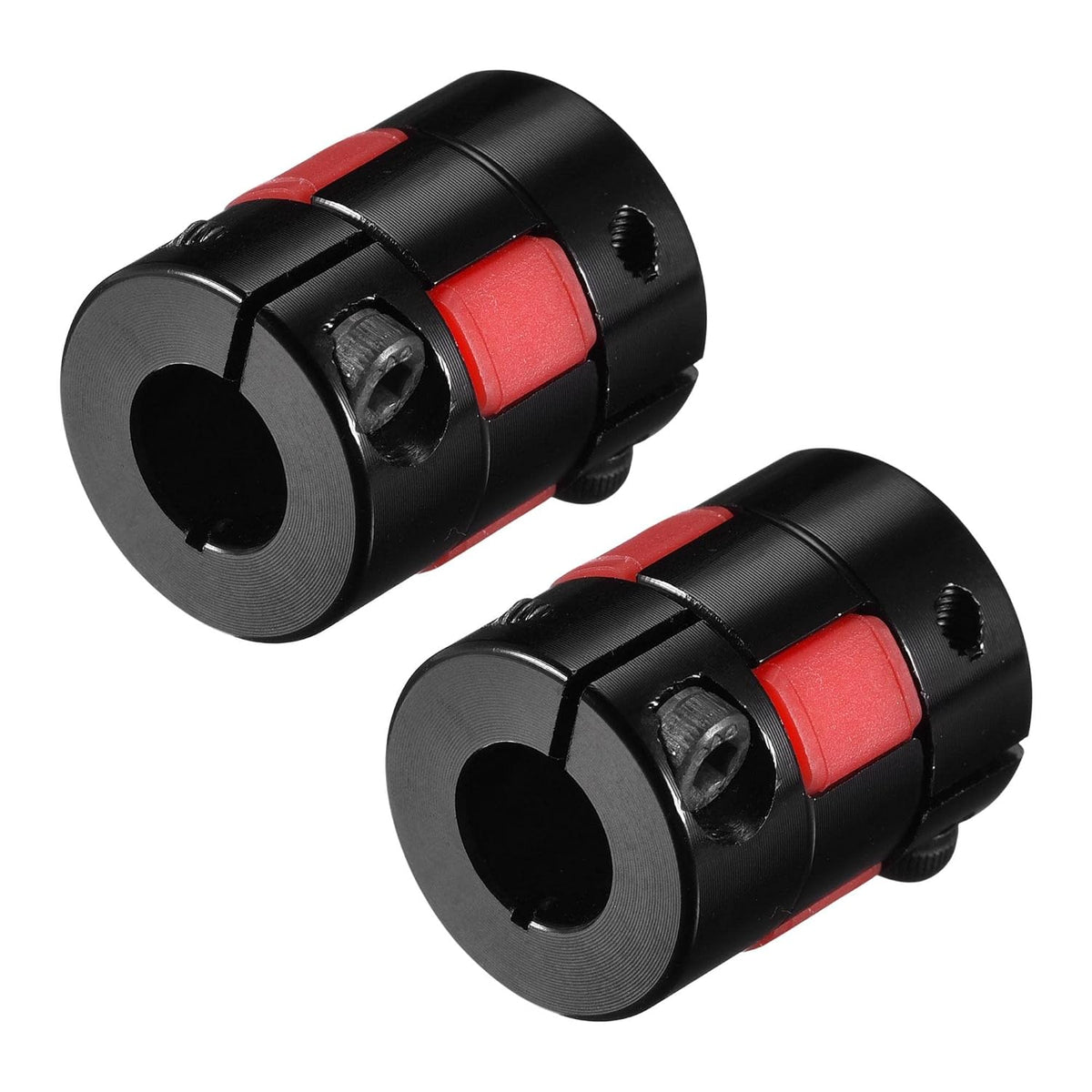

Shaft Coupling 9mm to 9mm Bore L25xD20 Aluminum Alloy Flexible Coupler Joint for Servo Stepped Motor, Pack of 2

Key Features

• Material Aluminum Alloy; Fixed Type Clamp; Fit Screw Size M3; Connection Diameter 9mm to 9mm; Total Length 25mm; Outside Diameter 20mm
• General-purpose power transmission coupling, also used in motion control applications and rotational power transmissions. Widely used in servo stepped motor, 3D printer, CNC, and encoder motor.
• The jaw coupling has three parts two metallic hubs and an elastomer insert. The two fixed ends are made of hard aluminum alloy and the middle is made of polyurethane elastomer. You need to fit the three parts together with the jaw lock.
• Due to the limitation in the shaft misalignment, please check your shaft misalignment. Too much angular or parallel misalignment will result in bearing loads that may lead to premature system wear or failure. Please check the size of what you need.
• Wear-resistant, high hardness and excellent response. Super elastic torque can absorb vibration, appropriate a large torque transmission.

Product Description

Description

The two fixed ends are made of hard aluminum alloy and the middle is made of polyurethane elastomer.Widely used in servo stepped motor, 3D printer, CNC, and encoder motor.Wear-resistant, high hardness and excellent response.Super elastic torque can absorb vibration, appropriate a large torque transmission.Specification:Color: Black, RedMaterial: Aluminum AlloyRated Torque: 5 Nm / 44.29 in-lbMax. Torque: 10 Nm / 88.57 in-lbFixed Type: ClampFit Screw Size: M3Connection Diameter: 9mm to 9mm / 0.35 to 0.35 inchTotal Length: 25mm /0.98 inchOutside Diameter : 20mm/ 0.79 inchPackage List:2 x Flexible Shaft Coupler
